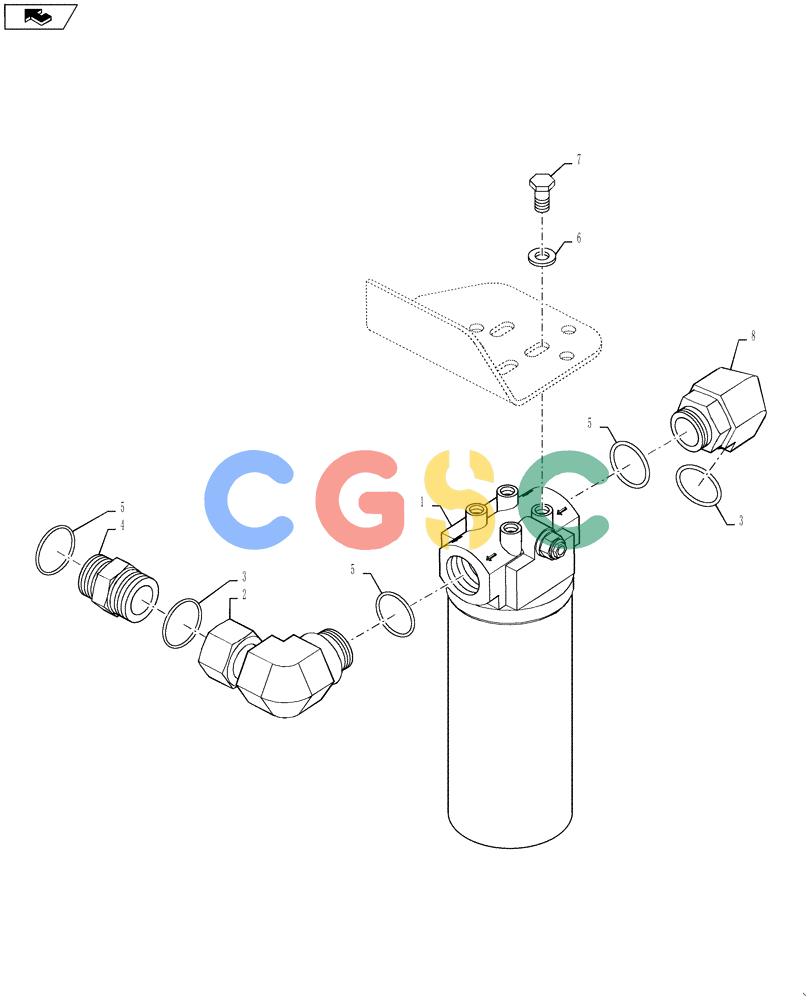

纽荷兰零件查询(D85B) - CRAWLER DOZER TIER 3 (3/08-) (08-03[03]) - HYDRAULICS, EQUIPMENT - 6 MICRON FILTER MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
828 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 426336A1 | [1] | FILTER ASSY | BUR6 Micron; See Fig. 06-09 |
| 2. | 201-393 | [1] | ELBOW,90º, 1 7/16"-12 Adj x 1 7/16"-12 Fem Sw, ORFS | BRR |
| 3. | 9824050 | [2] | O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro | WIN Superseded by part number: 87473574 |
| 4. | 201-105 | [1] | HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/16"-12 ORB | IH Superseded by part number: 9824055 |
| 5. | 167268 | [3] | O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro | WIN |
| 6. | 895-11010 | [4] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 7. | 614-10020 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43138 |
| 8. | 201-308 | [1] | ELBOW,90º, 1 7/16"-12 x 1 5/8"-12, Adj, ORFS | CAS Superseded by part number: 9846955 |
