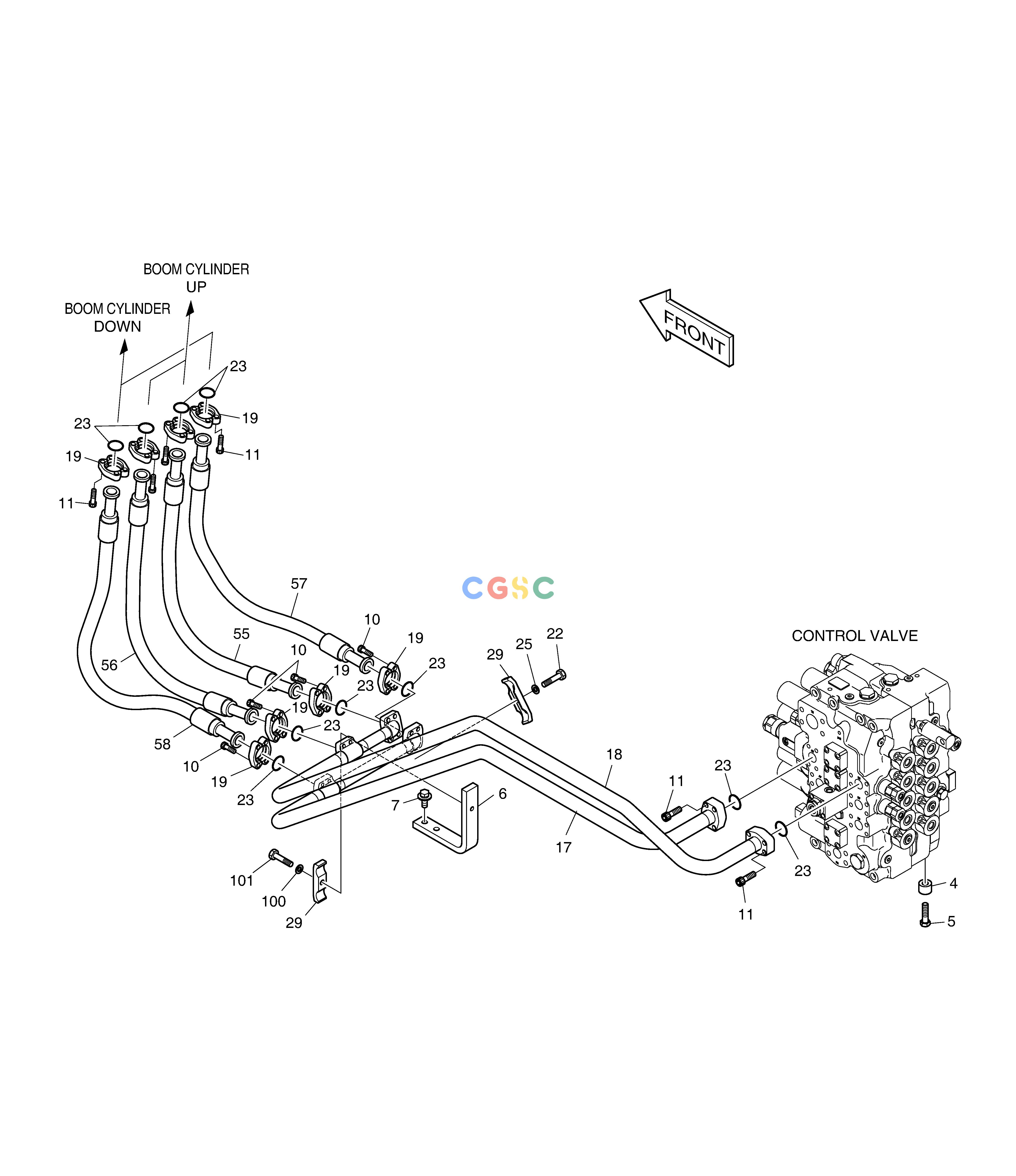

斗山零件查询MAIN PIPING(2) - BOOM DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002988L
|
[-] |
MAIN PIPING
|
|
| 10. |
S2212266
|
[16] |
BOLT
|
|
| 100. |
S5102703
|
[1] |
WASHER
|
|
| 101. |
S0561066
|
[1] |
BOLT
|
|
| 11. |
S2212466
|
[24] |
BOLT
|
|
| 17. |
420207-00349A
|
[1] |
|
|
| 17. |
K1003083B
|
[1] |
PIPE
|
420207-00349
|
| 17. |
420207-00349
|
[1] |
|
|
| 18. |
420207-00350
|
[1] |
|
|
| 18. |
420207-00350A
|
[1] |
|
|
| 18. |
K1003084B
|
[1] |
PIPE
|
420207-00350
|
| 19. |
2181-9078
|
[16] |
FLANGE;SPLIT
|
|
| 22. |
S0561066
|
[1] |
BOLT
|
|
| 23. |
DS2856003
|
[10] |
O-RING
|
|
| 23. |
2180-1026D19
|
[10] |
O-RING
|
DS2856003
|
| 25. |
S5102703
|
[1] |
WASHER
|
|
| 29. |
2124-1025D5
|
[2] |
CLAMP;PIPE
|
|
| 4. |
114-00425
|
[4] |
SPACER
|
|
| 5. |
S0565466
|
[4] |
BOLT
|
|
| 55. |
DS2038224
|
[1] |
HOSE
|
|
| 56. |
DS2038224
|
[1] |
HOSE
|
|
| 57. |
DS2038224
|
[1] |
HOSE
|
|
| 58. |
DS2038224
|
[1] |
HOSE
|
|
| 6. |
K1023531
|
[1] |
PLATE
|
|
| 7. |
DS0025020
|
[2] |
BOLT
|
|
