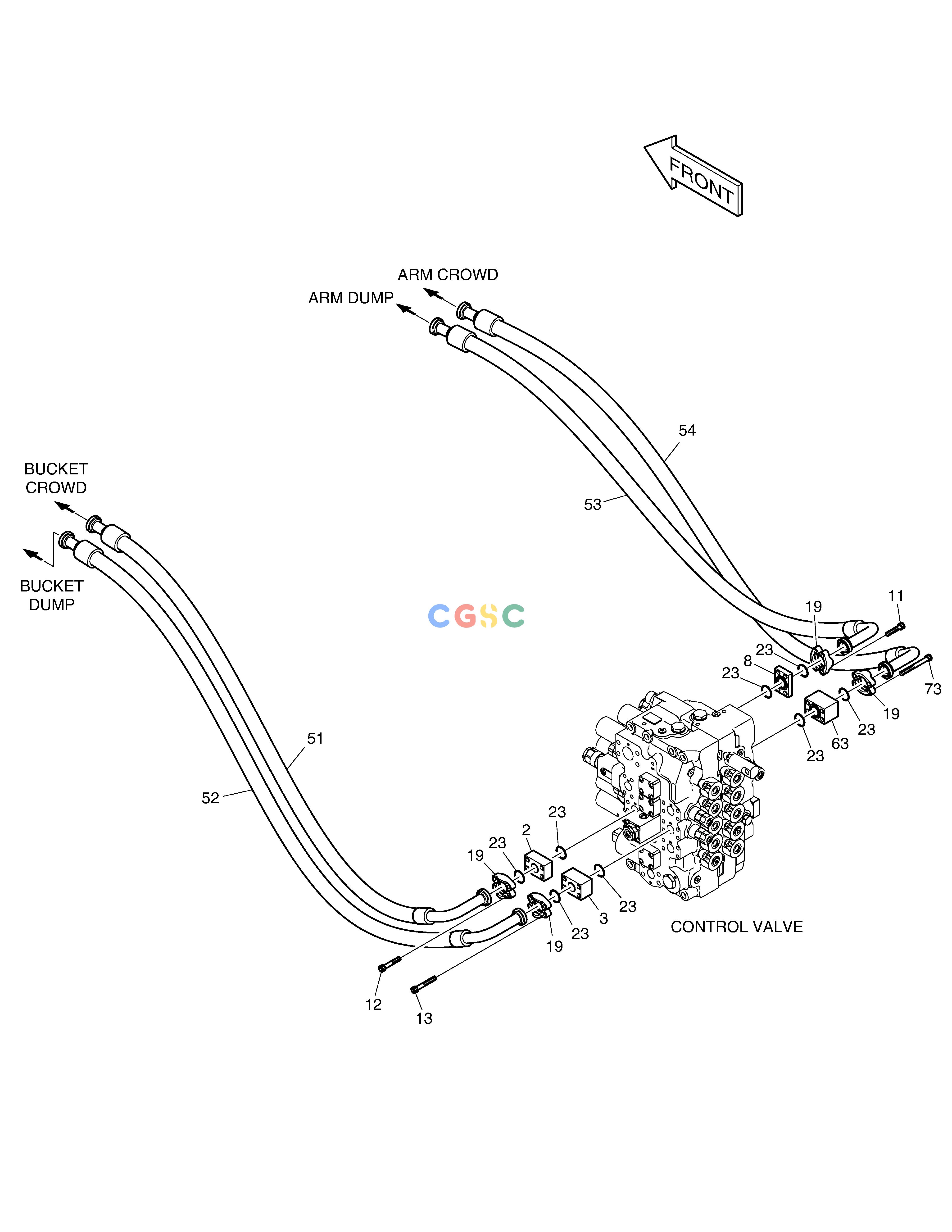

斗山零件查询MAIN PIPING(3) - ARM, BUCKET DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
768 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002988L
|
[-] |
MAIN PIPING
|
|
| 11. |
S2212466
|
[4] |
BOLT
|
|
| 12. |
S2212866
|
[4] |
BOLT
|
|
| 13. |
S2213066
|
[4] |
BOLT;SOCKET M10X1.5X70
|
|
| 19. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 2. |
2423-1407
|
[1] |
BLOCK;SPACER
|
|
| 23. |
2180-1026D19
|
[8] |
O-RING
|
DS2856003
|
| 23. |
DS2856003
|
[8] |
O-RING
|
|
| 3. |
2181-2614
|
[1] |
BLOCK;SPACER
|
|
| 51. |
DS2040474
|
[1] |
HOSE
|
|
| 52. |
DS2040702
|
[1] |
HOSE
|
|
| 53. |
DS2040703
|
[1] |
HOSE
|
|
| 54. |
DS2040702
|
[1] |
HOSE
|
|
| 63. |
181-00806
|
[1] |
BLOCK;SPACER
|
|
| 73. |
S2213266
|
[4] |
BOLT;SOCKET M10X1.5X80
|
|
| 8. |
423-00199
|
[1] |
BLOCK;SPACER
|
|
