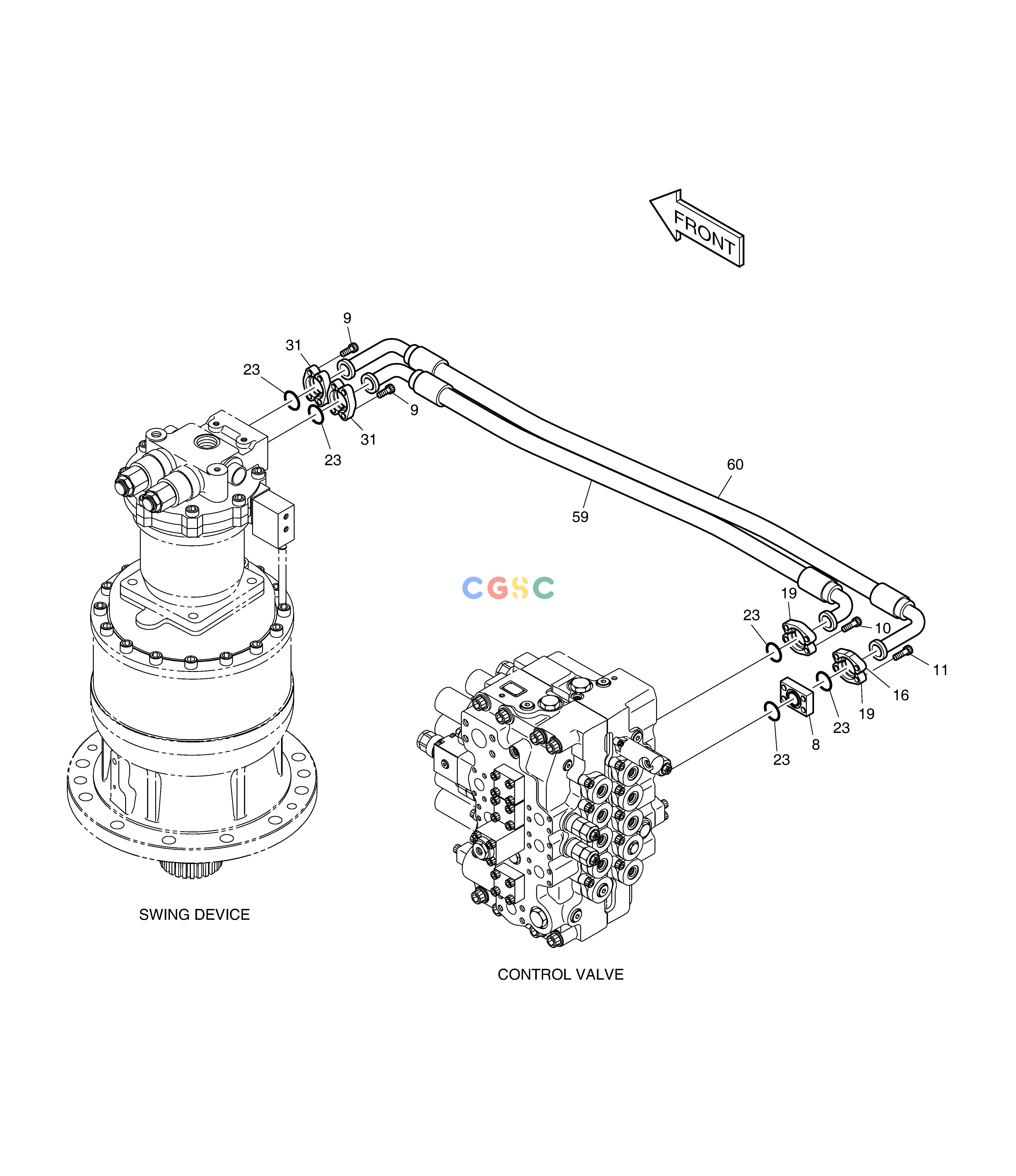

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1002988L | [-] | MAIN PIPING | |
| 10. | S2212266 | [4] | BOLT | |
| 11. | S2212466 | [4] | BOLT | |
| 16. | 2181-9083 | [1] | FLANGE;SPLIT | |
| 19. | 2181-9078 | [3] | FLANGE;SPLIT | |
| 23. | 2180-1026D19 | [5] | O-RING | DS2856003 |
| 23. | DS2856003 | [5] | O-RING | |
| 31. | 2181-9084A | [4] | FLANGE;SPLIT | |
| 59. | DS2045274 | [1] | HOSE | |
| 60. | DS2045240 | [1] | HOSE | |
| 8. | 423-00199 | [1] | BLOCK;SPACER | |
| 9. | S2215466 | [8] | BOLT |
