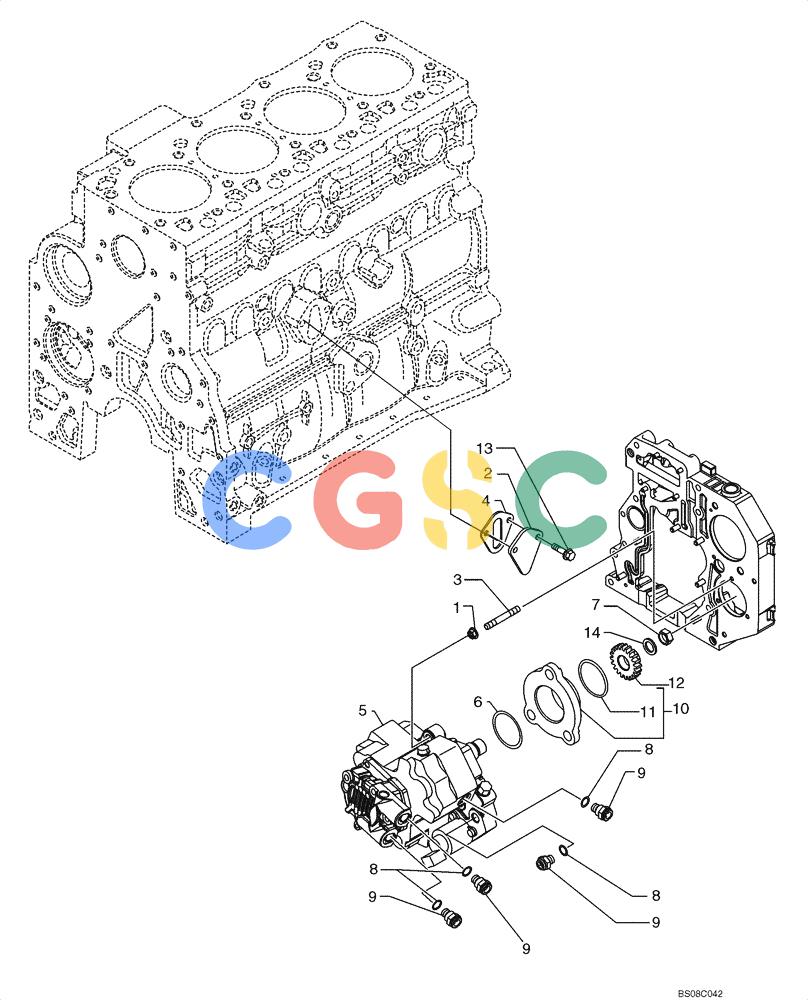

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (03-01) - FUEL INJECTION PUMP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
255 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899003 | [3] | FLANGE NUT,M8 x 1.25 | TOR Superseded by part number: 17044735 |
| 2. | 4896952 | [1] | COVER | TOR |
| 3. | 2852488 | [3] | STUD | SMM8 x 1.25 x 50 |
| 4. | 4890700 | [1] | GASKET,1.21mm Thk | TOR |
| 5. | 4898921 | [1] | FUEL INJECTION PUMP | TORIncl. Refs. 6 - 9, 14 Superseded by part number: 5801382396 |
| . . | 84385110R | [1] | REMAN-INJECTION PUMP | TORD95B TIER 3 (3/08-), Reman for New P/N 4898921 |
| . . | 84385110C | [1] | CORE-INJECTION PUMP | TORReturn Number |
| 5. | 4898921R | [1] | REMAN-INJECTION PUMP | MKTD95B, w/T3 Eng. Superseded by part number: 84385110R |
| 5. | 4898921C | [1] | CORE-INJECTION PUMP | MKTReturn Number |
| 6. | 4890088 | [1] | O-RING,44mm ID x 3mm Width | TOR Superseded by part number: 42549209 |
| 7. | 4890634 | [1] | NUT | TORM18X1.5 |
| 8. | 4891385 | [4] | SEALING WASHER | TOR Superseded by part number: 42556616 |
| 9. | 4893962 | [4] | QUICK MALE COUPLING | TOR Superseded by part number: 42559146 |
| 10. | 2852804 | [1] | HUB | TORASSY. Incl. Ref. 11 Superseded by part number: 504041278 |
| 11. | 2852805 | [1] | O-RING | TOR |
| 12. | 4893389 | [1] | DRIVEN GEAR | TOR |
| 13. | 2852234 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16978124 |
| 14. | 4890635 | [1] | SPRING WASHER | TOR Superseded by part number: 17095814 |
