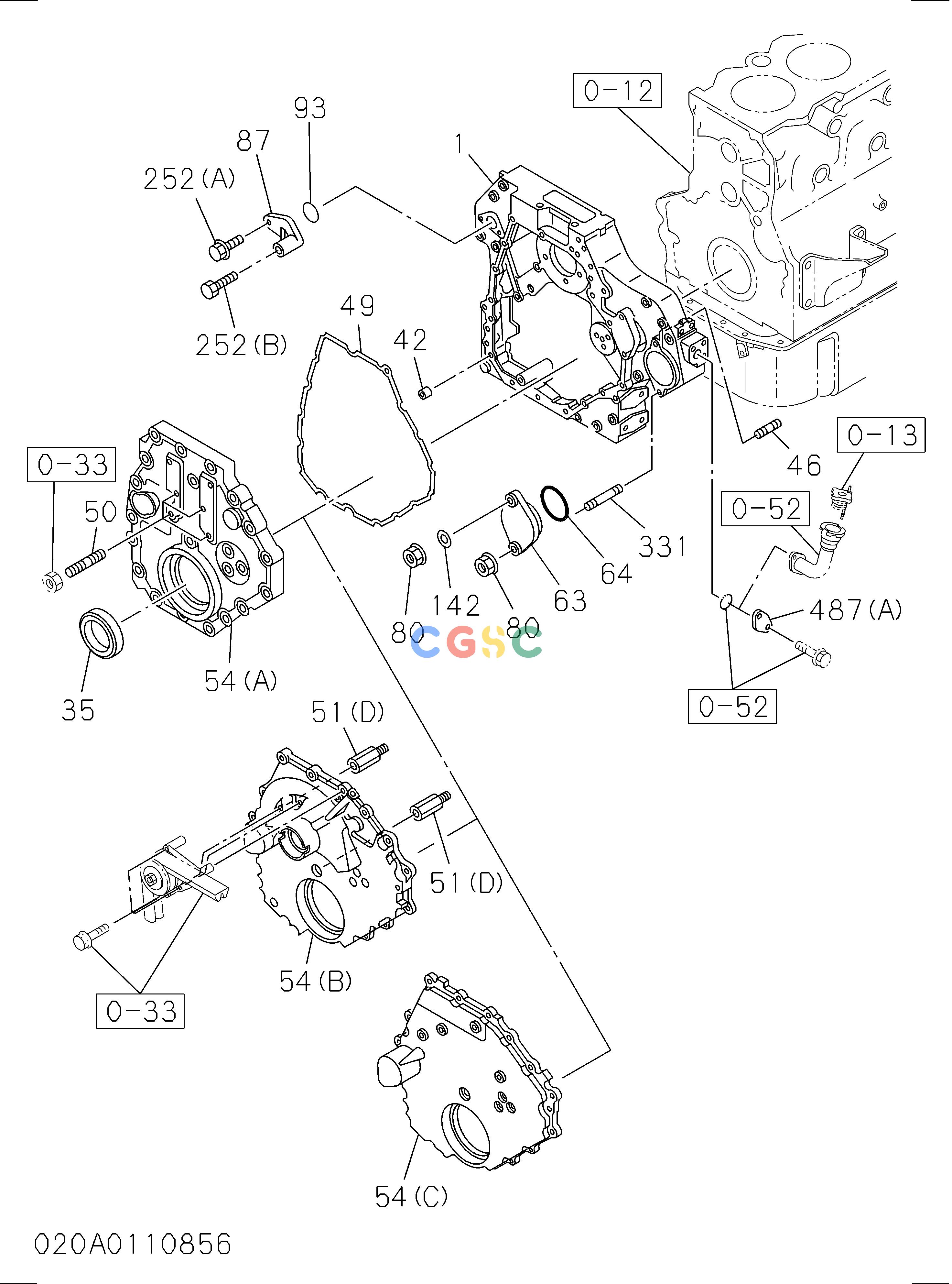

日立零件查询（600C）LC JD 020: TIMING GEAR CASE AND FLYWHEEL HOUSING Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
660 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 1113100535 | [1] | CASE; TIMING GEAR | C |
| 001. | 8980300950 | [1] | CASE; TIMING GEAR | A |
| 001. | 8980322864 | [1] | CASE; TIMING GEAR | |
| 001. | 8981522490 | [1] | CASE; TIMING GEAR | |
| 002(A). | 1113416352 | [1] | HOUSING; FLYWHEEL | |
| 035. | 1096255562 | [1] | SEAL; OIL,CRANKSHAFT FRT | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 035. | 8976173080 | [1] | SEAL; OIL,CRANKSHAFT FRT | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 036(A). | 1090200070 | [10] | BOLT; GEAR CASE | M14X110 |
| 036(A). | 1090200070 | [9] | BOLT; GEAR CASE | M14X110 |
| 036(B). | 0281810000 | [3] | BOLT; GEAR CASE | M10X100 FLANGE |
| 036(B). | 0281810000 | [2] | BOLT; GEAR CASE | A M10X100 FLANGE |
| 036(B). | 0281510000 | [2] | BOLT; GEAR CASE | M10X100 FLANGE |
| 036(C). | 0281810250 | [4] | BOLT; GEAR CASE | A M10X25 FLANGE |
| 036(C). | 0281510250 | [4] | BOLT; GEAR CASE | M10X25 FLANGE |
| 036(D). | 0281810350 | [1] | BOLT; GEAR CASE | A M10X35 FLANGE |
| 036(D). | 0281510350 | [1] | BOLT; GEAR CASE | M10X35 FLANGE |
| 036(E). | 1090201460 | [1] | BOLT; GEAR CASE | M14X60 |
| 036(F). | 9098041721 | [1] | BOLT; GEAR CASE | M14X150 |
| 036(G). | 0281860140 | [1] | BOLT; GEAR CASE | A M10X140 FLANGE |
| 036(G). | 0281560140 | [1] | BOLT; GEAR CASE | M10X140 FLANGE |
| 037. | 9091645140 | [11] | WASHER; PL,GEAR CASE | ID=14 |
| 042. | 1131190040 | [1] | DOWEL; GEAR CASE COVER | |
| 046. | 9044114450 | [1] | STUD; BRG COVER,RR | A |
| 046. | 0440114450 | [1] | STUD; BRG COVER,RR | |
| 049. | 1113220610 | [1] | GASKET; GEAR CASE TO COVER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 050. | 9044110400 | [2] | STUD | A M10X40 L=55 |
| 050. | 0440110400 | [2] | STUD | M10X40 L=55 |
| 051(A). | 0287810400 | [19] | BOLT; GEAR CASE COVER | A M10X40 FLANGE |
| 051(A). | 0287510400 | [19] | BOLT; GEAR CASE COVER | M10X40 FLANGE |
| 051(B). | 9010658400 | [3] | BOLT; GEAR CASE COVER | A M8X40 |
| 051(B). | 0109558400 | [3] | BOLT; GEAR CASE COVER | M8X40 |
| 051(C). | 0281810450 | [1] | BOLT; GEAR CASE COVER | A M10X45 FLANGE |
| 051(C). | 0281510450 | [1] | BOLT; GEAR CASE COVER | M10X45 FLANGE |
| 051(D). | 1113290241 | [3] | BOLT; GEAR CASE COVER | M10X90 |
| 051(D). | 8976034820 | [3] | BOLT; GEAR CASE COVER | M10X90 |
| 054(A). | 1113211682 | [1] | COVER; GEAR CASE | |
| 063. | 1117491860 | [1] | COVER; P/S | |
| 064. | 1096234210 | [1] | GASKET; COVER,P/S | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 080. | 0911501100 | [2] | NUT; COVER | A M10 FLANGE |
| 080. | 0911801100 | [2] | NUT; COVER | M10 FLANGE |
| 083. | 5095031110 | [3] | WASHER; PL,COVER | ID=8.5 OD=20 |
| 087. | 1113491512 | [1] | COVER; TACHOMETER DRIVE | |
| 093. | 1096234160 | [1] | GASKET; ELBOW | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 115(A). | 1815107131 | [1] | SENSOR; REVOLUTION,ENG SPD | |
| 142. | 0916145100 | [1] | WASHER; COVER | ID=10.5 |
| 169. | 0911501080 | [4] | NUT; COVER | M8 FLANGE |
| 169. | 0911801080 | [4] | NUT; COVER | M8 FLANGE |
| 175. | 1096255571 | [1] | SEAL; OIL,CR/SHF,RR | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 175. | 8976173090 | [1] | SEAL; OIL,CR/SHF,RR | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 177. | 0280808160 | [1] | BOLT; SENSOR | A M8X16 FLANGE |
| 177. | 0280508160 | [1] | BOLT; SENSOR | M8X16 FLANGE |
| 191(A). | 1113492410 | [1] | STAY; FLYWHEEL HSG | |
| 191(B). | 1113492400 | [1] | STAY; FLYWHEEL HSG | |
| 192. | 1090200081 | [2] | BOLT; STAY TO HSG | M14X155 |
| 196. | 9916664000 | [4] | BOLT; STAY TO C/BL | C M14X100 |
| 196. | 0169564000 | [4] | BOLT; STAY TO C/BL | M14X100 |
| 197. | 9091645140 | [6] | WASHER; PL,STAY | ID=14 |
| 206. | 9113490490 | [1] | COVER; STARTER CHECK HOLE | |
| 211(A). | 0280808350 | [8] | BOLT; HSG | A M8X35 FLANGE |
| 211(A). | 0280508350 | [8] | BOLT; HSG | M8X35 FLANGE |
| 211(B). | 9916664500 | [2] | BOLT; HSG | C M14X50 |
| 211(B). | 0169564500 | [2] | BOLT; HSG | M14X50 |
| 211(C). | 9923614450 | [10] | BOLT; HSG | M14X45 |
| 211(D). | 0287914400 | [1] | BOLT; HSG | M14X40 FLANGE |
| 211(D). | 0287614400 | [1] | BOLT; HSG | M14X40 FLANGE |
| 213(A). | 1113270451 | [1] | POINTER; FLYWHEEL HSG | |
| 219(A). | 1113491310 | [2] | COVER; POINTER | |
| 224. | 9044114350 | [3] | STUD; STARTER | A M14X35 L=56 |
| 224. | 0440114350 | [3] | STUD; STARTER | M14X35 L=56 |
| 241. | 9091645140 | [13] | WASHER; PL,HSG | ID=14 |
| 241. | 9091645140 | [12] | WASHER; PL,HSG | ID=14 |
| 252(A). | 0280808200 | [1] | BOLT; GEAR BOX | A M8X20 FLANGE |
| 252(A). | 0280508200 | [1] | BOLT; GEAR BOX | M8X20 FLANGE |
| 252(B). | 0280808600 | [1] | BOLT; GEAR BOX | A M8X60 FLANGE |
| 252(B). | 0280508600 | [1] | BOLT; GEAR BOX | M8X60 FLANGE |
| 252(B). | 1090440721 | [1] | BOLT; GEAR BOX | M8X65 FLANGE |
| 254. | 1093000581 | [4] | STUD; POINTER & COVER | M8X14,M8X14 L=33 |
| 278. | 1113491270 | [2] | WASHER; COVER FIX | |
| 331. | 9044110300 | [2] | STUD; P/S PUMP | A M10X30 L=45 |
| 331. | 0440110300 | [2] | STUD; P/S PUMP | M10X30 L=45 |
| 331. | 8981780610 | [2] | STUD; P/S PUMP | M10X35 L=46 |
| 487(A). | 1113190120 | [1] | COVER; HOLE | |
