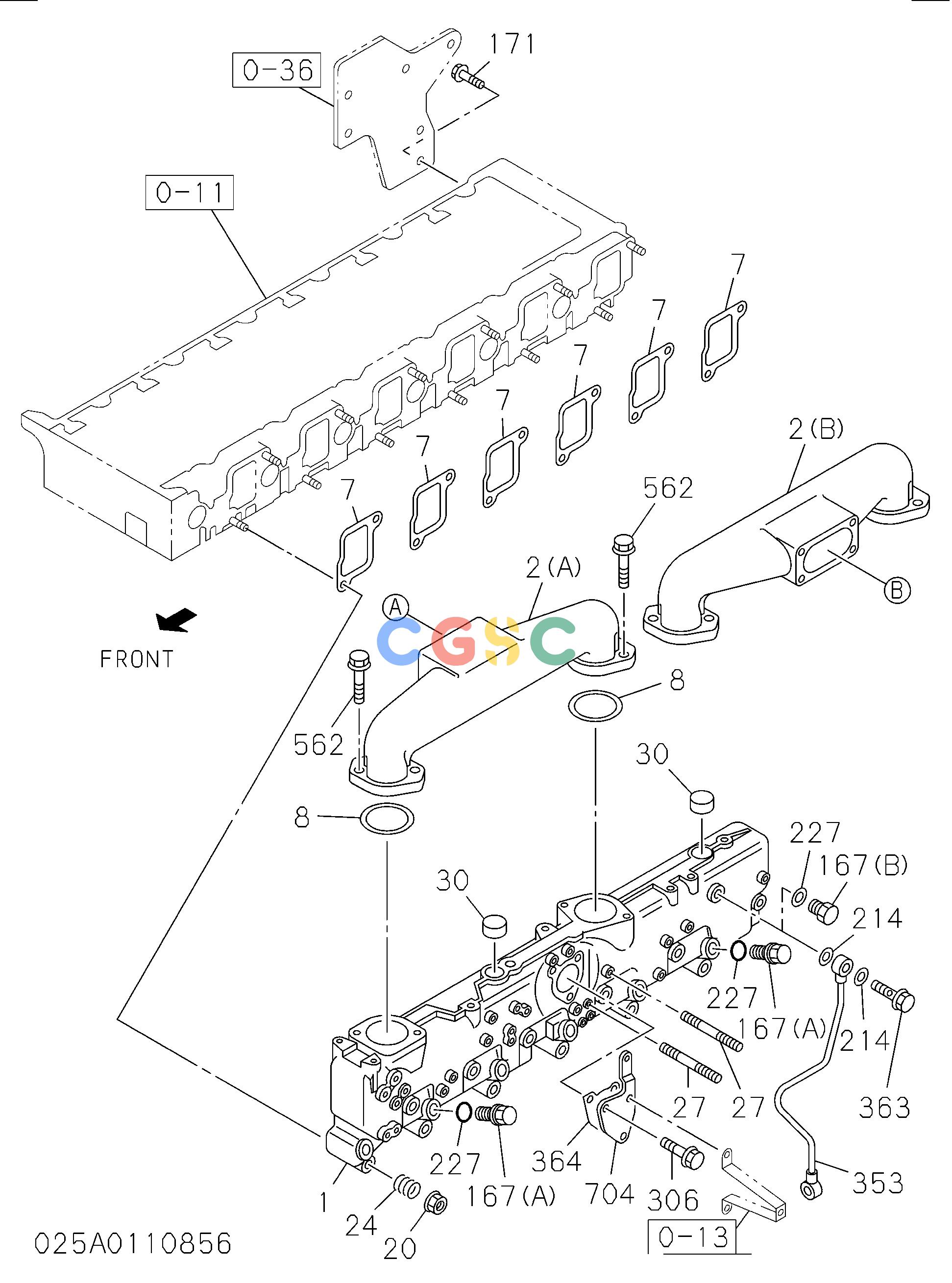

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 1141127301 | [1] | MANIFOLD; INL | |
| 002(B). | 1141343610 | [1] | COVER; INL | |
| 007. | 1141150631 | [6] | GASKET; INL MANIF TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 008. | 1096234210 | [2] | GASKET; INT DUCT | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 020. | 0911501100 | [12] | NUT; INL MANIF | A M10 FLANGE |
| 020. | 0911801100 | [12] | NUT; INL MANIF | M10 FLANGE |
| 024. | 1095801560 | [12] | SPRING; INL MANIF | |
| 027. | 9041106300 | [8] | STUD; INL MANIF | A M6X30 L=38 |
| 027. | 0410106300 | [8] | STUD; INL MANIF | M6X30 L=38 |
| 030. | 8942416380 | [2] | CUP; SEALING,INL MANIF | OD=30 |
| 050(B). | 1141127551 | [1] | PIPE; INL | |
| 167(A). | 1096040780 | [6] | PLUG; INL MANIF | M20 |
| 167(B). | 1096040940 | [1] | PLUG; INL MANIF | M10X7 |
| 171. | 0281912250 | [2] | BOLT; BRKT | A M12X25 FLANGE |
| 171. | 0281612250 | [2] | BOLT; BRKT | M12X25 FLANGE |
| 214. | 1096300830 | [2] | GASKET; EYE BOLT | ID=10.2 ALSO INCLUDED IN GASKET SET(ENGINE) |
| 227. | 1096300880 | [6] | GASKET; PLUG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 227. | 1096300830 | [1] | GASKET; PLUG | ID=10.2 ALSO INCLUDED IN GASKET SET(ENGINE) |
| 306. | 0287810250 | [1] | BOLT; VLV | A M10X25 FLANGE |
| 306. | 0287510250 | [1] | BOLT; VLV | M10X25 FLANGE |
| 320. | 1141171010 | [1] | GASKET; PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 353. | 1191932390 | [1] | PIPE; AIR,BOOST | |
| 363. | 1096750770 | [1] | BOLT; EYE | M10X21 FLANGE |
| 364. | 1096236590 | [1] | GASKET | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 562. | 0281810200 | [4] | BOLT; INL DUCT | M10X20 FLANGE |
| 562. | 0287810250 | [4] | BOLT; INL DUCT | A M10X25 FLANGE |
| 562. | 0287510250 | [4] | BOLT; INL DUCT | M10X25 FLANGE |
| 568. | 0287810250 | [4] | BOLT; PIPE | A M10X25 FLANGE |
| 568. | 0287510250 | [4] | BOLT; PIPE | M10X25 FLANGE |
| 704. | 1141127570 | [1] | COVER |
