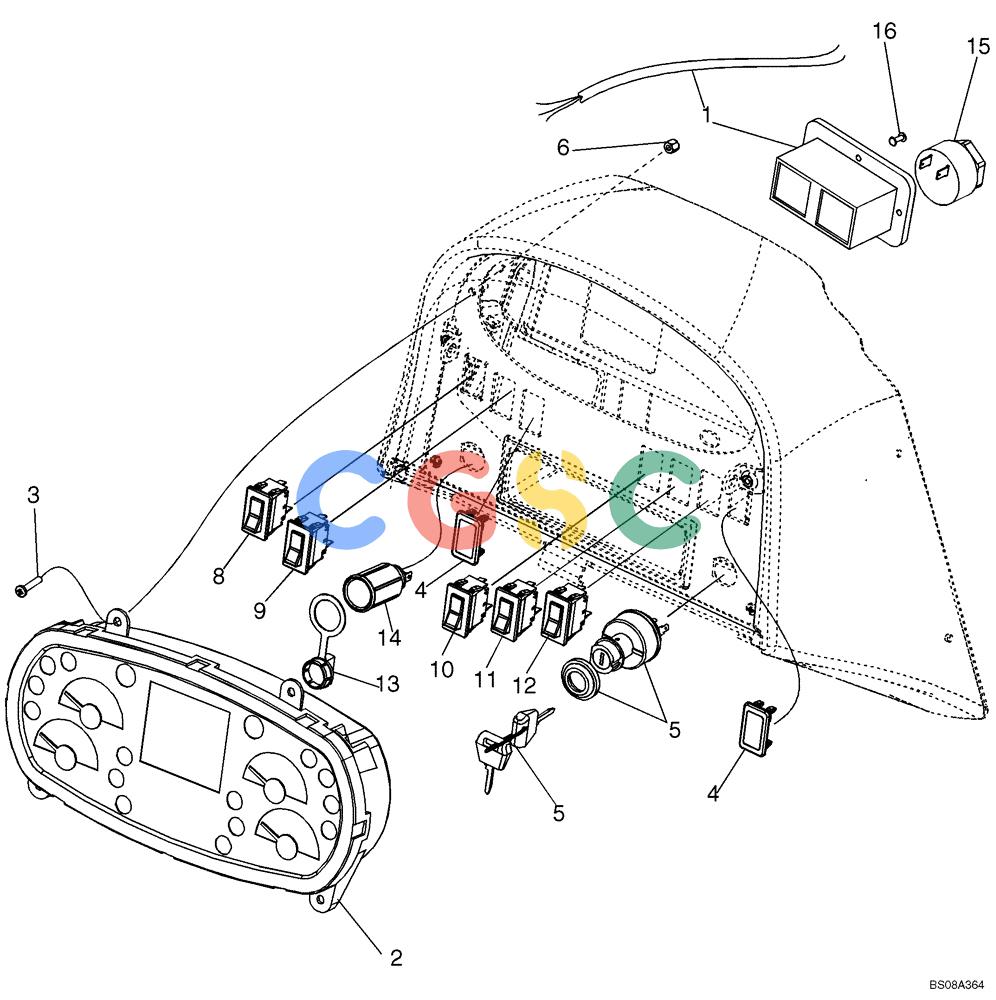

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (04-12) - HARNESS, FRONT CONSOLE AND SWITCHES - CANOPY, ROPS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
444 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87639284 | [1] | WIRE HARNESS | BURHARNESS, WIRE, Front Console; Canopy Models |
| 2. | 87664591 | [1] | CLUSTER, INSTR. | BURINSTRUMENT CLUSTER, (Digitek) 12V |
| 3. | 540-701 | [2] | SCREW,Cross Pan Hd, M5 x 20 | CAS Superseded by part number: 86511827 |
| 4. | 126844A1 | [2] | PLUG | CASSwitch Hole Superseded by part number: 86000535 |
| 5. | 87416177 | [1] | IGNITION SWITCH | FARIncludes Keys |
| . . | 86502201 | [1] | IGNITION KEY | WINOn Ring Superseded by part number: 47457834 |
| 6. | 832-10405 | [4] | NUT,M5 x .8, Cl 8 | CAS Superseded by part number: 86639241 |
| 8. | 87536793 | [1] | LIGHT SWITCH | BURRocker; Front Work Lamps |
| 9. | 87536792 | [1] | LIGHT SWITCH | BURRocker; Rear Work Lamps |
| 10. | 87410087 | [1] | ROCKER SWITCH | BURRocker; Momentary, Up/Down |
| 11. | 87410091 | [1] | ROCKER SWITCH | BURRocker; Momentary, Display |
| 12. | 386852A2 | [1] | SWITCH | CASRocker; Horn |
| 13. | 283779A1 | [1] | POWER SOCKET | CAS |
| 14. | 283781A1 | [1] | CAP | CASFor Power Plug |
| 15. | 87312549 | [1] | HORN | LEC Superseded by part number: 85826014 |
| 16. | 86837478 | [5] | RIVET,Pop, 1/8" x .650" | RAC |
