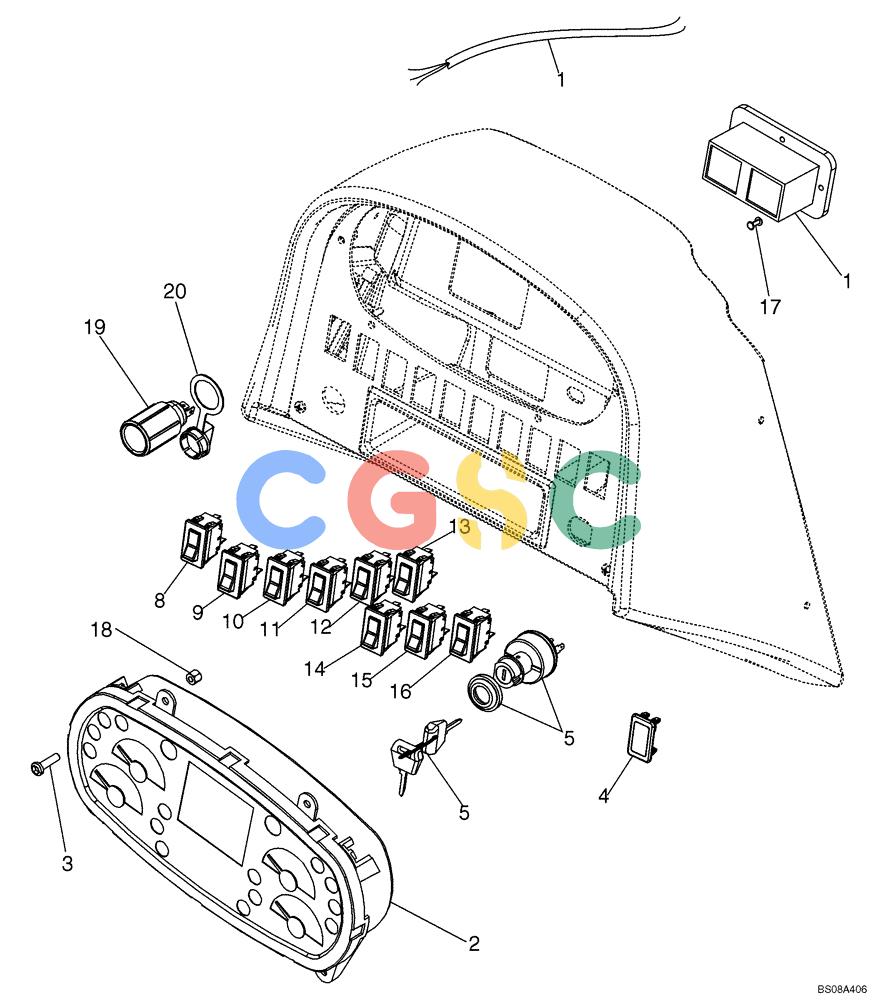

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (04-13) - HARNESS, FRONT CONSOLE AND SWITCHES - CAB New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
487 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87639284 | [1] | WIRE HARNESS | BURHarness, Wire; Front Console; Dashboard; Cab Models |
| 2. | 87664591 | [1] | CLUSTER, INSTR. | BURInstrument Cluster; Component Parts Not Serviced |
| 3. | 840-1520 | [2] | SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8 | CASM5 X 25 Superseded by part number: 86511827 |
| 4. | 86000535 | [1] | PLUG,1.427" x .62", Plastic | WINSwitch Hole; Models without Grid Heater; If Used |
| 5. | 87416177 | [1] | IGNITION SWITCH | FARIncludes Keys |
| . . | 86502201 | [1] | IGNITION KEY | WIN Superseded by part number: 47457834 |
| 8. | 87536793 | [1] | LIGHT SWITCH | BURRocker; Front Work Lamps |
| 9. | 87536792 | [1] | LIGHT SWITCH | BURRocker; Rear Work Lamps |
| 10. | 87410552 | [1] | WINDSHIELD WIPER SWITCH | BURRocker; Front and Rear Windshield Wipers |
| 11. | 386788A1 | [1] | WINDSHIELD WIPER SWITCH | CASRocker; Rear Windshield Washers |
| 12. | 87410551 | [1] | WINDSHIELD WIPER SWITCH | BURRocker; Left-Hand and Right-Hand Door Window Wipers |
| 13. | 87411310 | [1] | WINDSHIELD WASHER SWITCH | BURRocker; Left-Hand and Right-Hand Door Window Washers |
| 14. | 87410087 | [1] | ROCKER SWITCH | BURRocker; Momentary, Up/Down |
| 15. | 87410091 | [1] | ROCKER SWITCH | BURRocker; Momentary, Display |
| 16. | 386852A2 | [1] | SWITCH | CASRocker; Horn |
| 17. | 86837478 | [4] | RIVET,Pop, 1/8" x .650" | RAC1/8 x 21/32 Rivet; Dashboard Harness to Rear of Console |
| 18. | 832-10405 | [4] | NUT,M5 x .8, Cl 8 | CAS Superseded by part number: 86639241 |
| 19. | 283779A1 | [1] | POWER SOCKET | CAS |
| 20. | 283781A1 | [1] | CAP | CASPower Plug |
