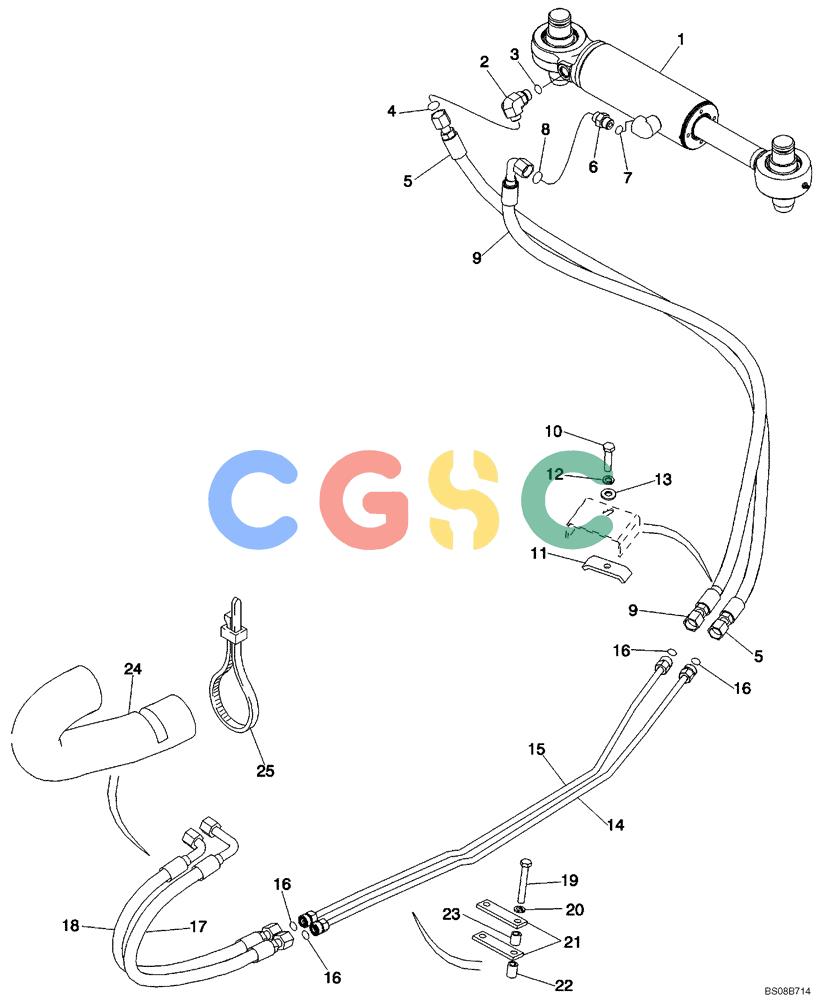

| 1. | 87432203 | [1] | CYLINDER ASSY.,Double Acting, 44.4mm Rod, 147.8mm Stroke | BUR89 ID x 148 mm Stroke; Tilt; See Figure 08-12 |
| 2. | 201-326 | [1] | ELBOW,90º, 13/16"-16 x 7/8"-14, Adj, ORFS | CASIncl. Ref 3, 4 Superseded by part number: 85802961 |
| 3. | 237-6010 | [1] | O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro | CASBoss End Superseded by part number: 72186125, 167269 |
| 4. | 238-6014 | [1] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 9992298 |
| 5. | 87309493 | [1] | HOSE ASSY.,12.7mm ID x 1235mm L | BUR1235 mm (48-5/8 in); Closed End; Outer |
| 6. | 435038A1 | [1] | HYD CONNECTOR | BURIncl. Ref 7, 8 |
| 9. | 87309492 | [1] | HOSE ASSY.,12.7mm ID x 1175mm L | BUR1175 mm (46-5/16 in); To Rod End Of Cylinder; Inner |
| 10. | 827-10045 | [1] | BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9 | CAS Superseded by part number: 86508618 |
| 11. | D40236 | [1] | CLAMP | CAS |
| 12. | 892-11010 | [1] | LOCK WASHER,M10 | CAS Superseded by part number: 140028 |
| 13. | 896-15010 | [1] | WASHER,11mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86639325 |
| 14. | 426936A1 | [1] | HYD. TUBE | BURTo Closed End Of Cylinder; Tilt Right |
| 15. | 426934A1 | [1] | HYD. TUBE | BURTo Rod End Of Cylinder; Tilt Left |
| 17. | 87309489 | [1] | HOSE ASSY.,12.7mm ID x 675mm L | BUR675 mm (26-5/8 in); Outer |
| 18. | 87309488 | [1] | HOSE ASSY.,12.7mm ID x 635mm L | BUR635 mm (25 in); Inner |
| 19. | 827-10070 | [2] | BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9 | CAS Superseded by part number: 355788 |
| 21. | 435511A1 | [2] | PLATE | BUR |
| 22. | 436109A1 | [2] | SPACER | BUR |
| 23. | 436110A1 | [2] | SPACER | BUR |
| 24. | 445338A1 | [1] | HOSE PROTECTION,46.00 mm ID x 825.00 mm | BUR |
| 25. | L18331 | [1] | CABLE TIE,375.9mm L | CAS15" Superseded by part number: 529070 |
