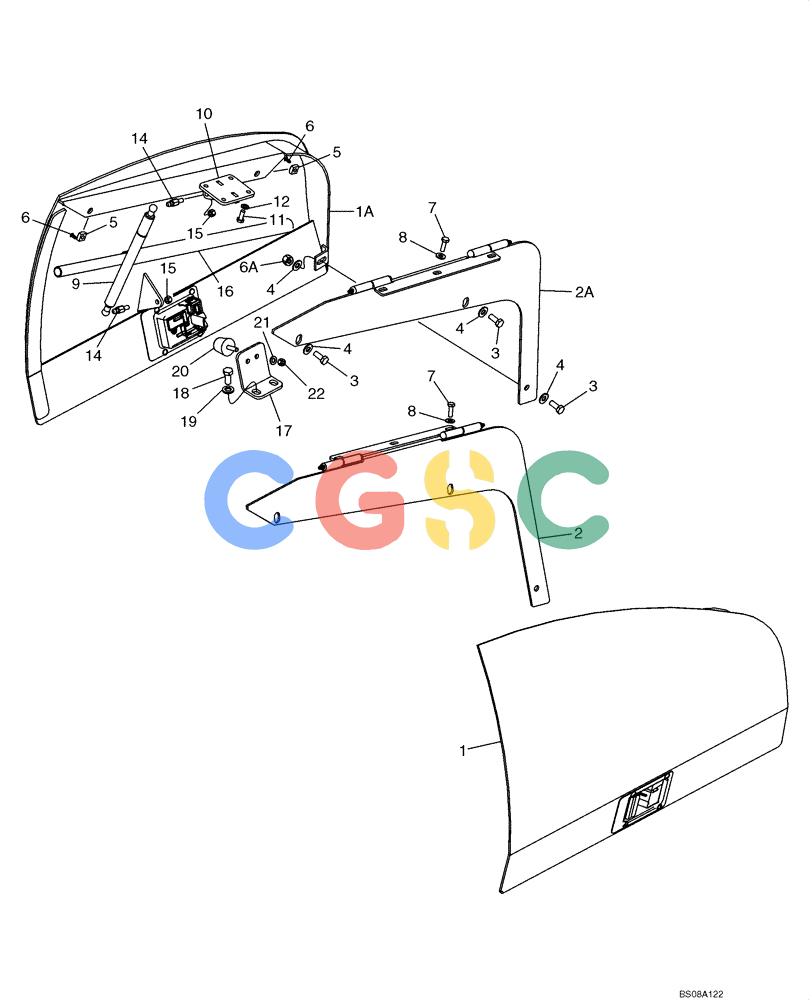

| . . | 87355469 | [1] | DOOR ASSY. | BURRight-Hand; Incl. Ref 1, 2, 3 - 6A; Also Includes 87353954 Latch, (4) 151-567 1/4 x 5/8 Rivets; Replaces 87355469 Superseded by part number: 84121762 |
| . . | 87355470 | [1] | DOOR ASSY. | BURLeft-Hand; Incl. Ref 1A, 2A - 6A; Also Includes 87353954 Latch, (4) 151-567 1/4 x 5/8 Rivets; Replaces 87355470 Superseded by part number: 84121763 |
| . . | 87353954 | [1] | LATCH | BURDoor |
| . . | 151-567 | [4] | RIVET,Pop, 1/4" x .625" | BRR Superseded by part number: 86979019 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONDoor, Right-Hand |
| 2. | 87495225 | [1] | HINGE | BHBHINGE, Door, Right-Hand; Replaces 87758116 Hinge R.H. Used On Some Models; Replaces 414382A4 |
| 2A. | 84121765 | [1] | HINGE | BHBHINGE, Door, Left-Hand; Replaces 87758118 Hinge L.H. Used On Some Models; Replaces 414384A4 |
| 3. | 627-10025 | [3] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106231 |
| 4. | 895-25010 | [4] | WASHER,M11 x 30 x 2.5 | RAC Superseded by part number: 86642464 |
| 5. | 122958A1 | [2] | SQUARE NUT | CASM10 Superseded by part number: 230427A1 |
| 6. | 336371A1 | [2] | PIN | CASNut Retainer |
| 6A. | 832-10410 | [1] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 7. | 627-8025 | [6] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 43234 |
| 8. | 895-15008 | [6] | WASHER,M8 x 20 x 1.6 | CAS Superseded by part number: 86625263 |
| 9. | 87403799 | [2] | SPRING | BURGas, Includes Integral Spring Clip Retainer |
| 10. | 411339A1 | [2] | MOUNTING PARTS | BUR |
| 11. | 627-8030 | [8] | BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | CAS Superseded by part number: 43235 |
| 12. | 895-11008 | [8] | WASHER,M8 x 16 x 1.6 | CAS Superseded by part number: 86624184 |
| 14. | 109498A1 | [4] | STUD | CAS |
| 15. | 231-1445 | [4] | NUT,5/16"-18, GB | CAS Superseded by part number: 86050277 |
| 16. | 86990971 | [1] | HANDLE | BURHydraulic Pump, Cab/Canopy Tilt; Door, Left-Hand |
| 17. | 87434237 | [2] | PLATE | BURDoor Latch |
| 18. | 614-12025 | [4] | BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd | IH Superseded by part number: 300388 |
| 19. | 896-11012 | [4] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 20. | 87330642 | [2] | BUMPER | BUR28 mm Stud Length |
| 21. | 495-11034 | [2] | WASHER,5/16", SAE | CAS Superseded by part number: 80701, 72187257 |
| 22. | 231-2445 | [2] | LOCK NUT,5/16"-24, GB | CAS |
