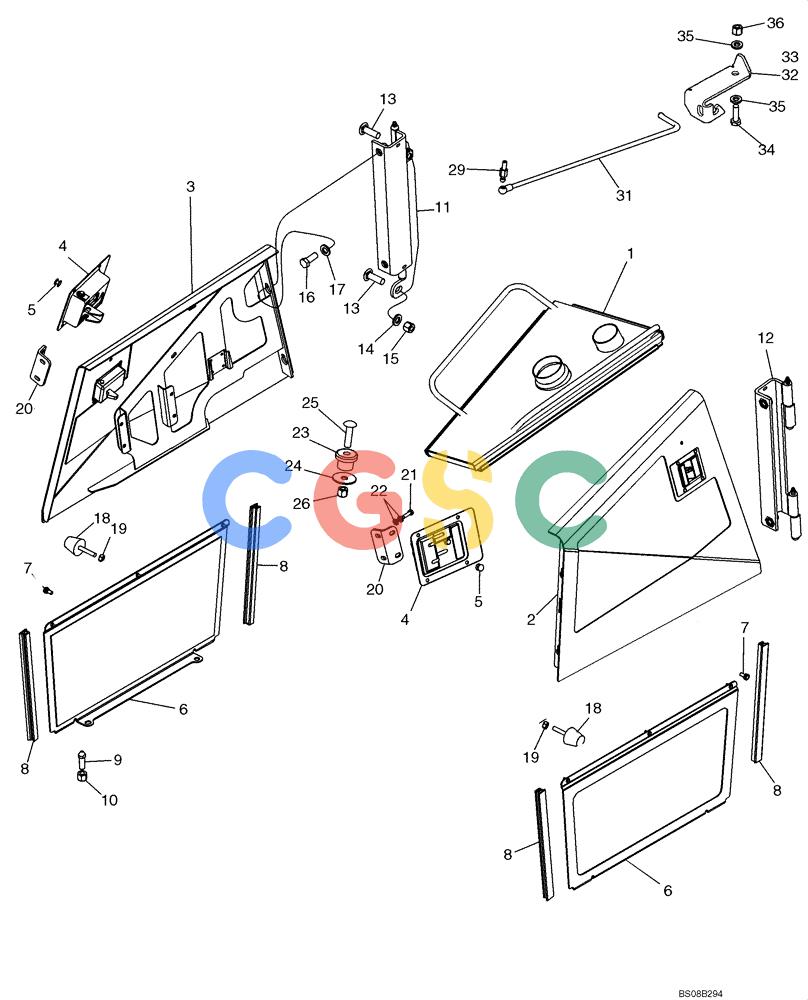

| 1. | 87717010 | [1] | ENGINE HOOD | BURPLATE, COVER |
| 2. | 87709495 | [1] | DOOR ASSY. | BURDOOR ASSY., Right-Hand; Incl. Ref 4, 5 Superseded by part number: 87495232, 86979019, 87353954 |
| 3. | 87618600 | [1] | DOOR ASSY. | BURDOOR ASSY., Left-Hand; Incl. Ref 4, 5 Superseded by part number: 87495231, 86979019, 87353954 |
| 4. | 87353954 | [1] | LATCH | BURLOCK; Tri/Mark Vendor Part Number 18530; Heavy Duty; Used With 87709495, 87618600 Doors |
| 5. | 151-567 | [4] | RIVET,Pop, 1/4" x .625" | BRR Superseded by part number: 86979019 |
| 6. | 87615361 | [2] | PLATE, COVER, Incl. Ref 7 | |
| 7. | A161780 | [3] | BUMPER | CAS |
| 8. | 449674A1 | [4] | RUBBER SEAL,290mm L | BUR |
| 9. | 418479A2 | [4] | PIN | BUR |
| 10. | 832-10412 | [4] | NUT,M12 x 1.75, Cl 8 | CAS Superseded by part number: 87780366, 412126 |
| 11. | 87436339 | [1] | HINGE | BURLeft-Hand |
| 12. | 87436338 | [1] | HINGE | BURRight-Hand |
| 13. | 811-12040 | [4] | CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8 | CAS Superseded by part number: 328754 |
| 14. | 896-11012 | [4] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 16. | 627-12035 | [4] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 626-12035 |
| 18. | 346104A1 | [4] | MOUNTING PARTS | CASBumper; 75.13 mm (3 in) Long; Upper and Lower |
| 19. | 425-115 | [4] | NUT,5/16"-24, G5 | CAS Superseded by part number: 86629539 |
| 20. | 419392A2 | [2] | RETAINING PLATE | BUR |
| 21. | 627-6020 | [4] | BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86505530 |
| 22. | 896-11006 | [1] | WASHER,6.6mm ID x 12.5mm OD x 2mm Thk | IH Superseded by part number: 87778338, 86588450 |
| 23. | R29799 | [2] | SHOCK ABSORBER | CAS |
| 24. | R40262 | [2] | WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk | CAS |
| 25. | 811-12050 | [2] | CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8 | CAS Superseded by part number: 334682 |
| 29. | 109498A1 | [2] | STUD | CAS |
| . . | 87330423 | [1] | KIT | BURDoor Strut Kit; Incl. Ref 31 - 36 |
| 31. | 87308889 | [2] | ROD | BURDoor Prop Rod |
| 32. | 87310136 | [1] | BRACKET | BURRight-Hand Bracket |
| 33. | 87310137 | [1] | BRACKET | BURLeft-Hand Bracket |
| . . | L18337 | [1] | CABLE TIE,9.95"-12.1" lg | CAS Superseded by part number: 529070 |
| 34. | 43234 | [2] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd | NHReplaces 627-8025 |
| 35. | 86624185 | [4] | WASHER,8.8mm ID x 17.5mm OD x 2mm Thk | FORReplaces 9 x 17 x 2 mm 896-11008 |
| 36. | 86528579 | [2] | NUT,M8 x 1.25 | WINReplaces 832-10408 |
