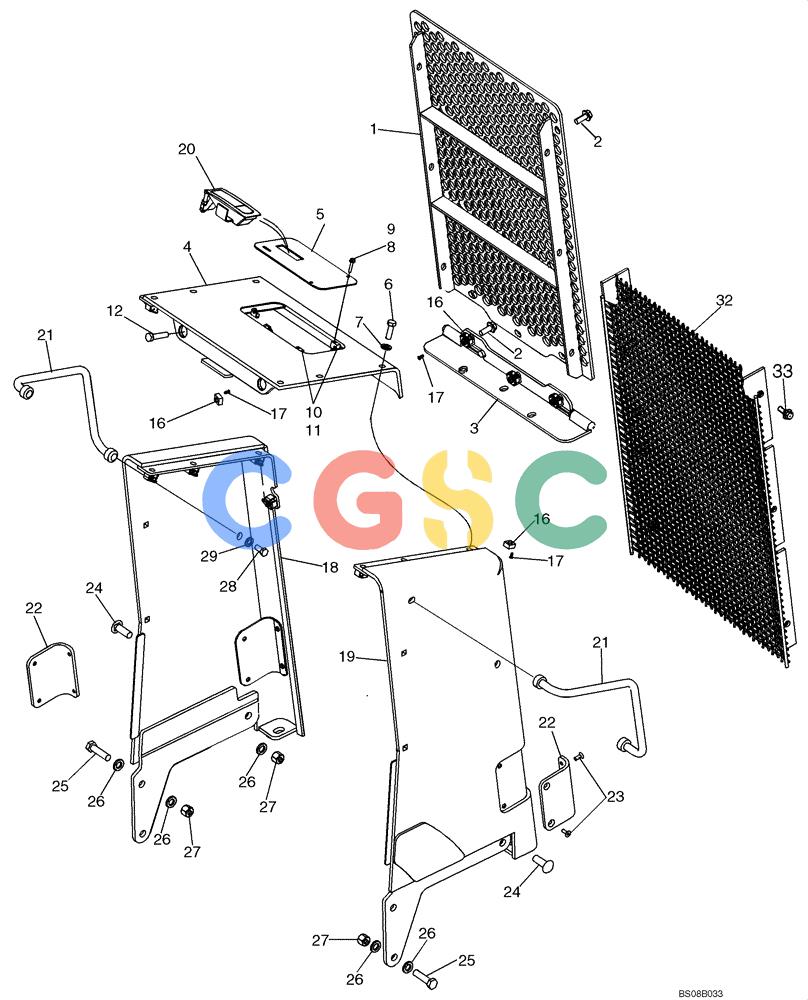

| 1. | 87600301 | [1] | GRILLE | BURGRILL, Front Radiator |
| 2. | 87030508 | [5] | BOLT,M12 x 30 Full 10.9 ZND | GI |
| 3. | 87439476 | [1] | HINGE | BUR |
| 4. | 87470130 | [1] | PLATE | BURPLATE, COVER, Top Wrapper; Replaces 87728908 |
| 5. | 87440320 | [1] | DOOR | BURRadiator |
| 6. | 627-12040 | [6] | BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 337563 |
| 7. | 896-11012 | [6] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 8. | 844-6030 | [2] | BOLT,Hvy Hex, M6 x 30mm, Cl 8.8 | CAS Superseded by part number: 86511839 |
| 9. | 896-11006 | [6] | WASHER,6.6mm ID x 12.5mm OD x 2mm Thk | IH Superseded by part number: 87778338, 86588450 |
| 10. | 87440322 | [2] | HINGE | BURBlock |
| 11. | 832-10406 | [2] | NUT,M6 x 1, Cl 8 | CAS |
| 12. | 857-12035 | [2] | BOLT,Hvy Hex, M12 x 35mm, Cl 10.9 | CASUse With Loctite 242 (345-49); Used On Some Models |
| 12. | 827-12060 | [2] | BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9 | CASUsed On Some Models Superseded by part number: 43263 |
| 16. | 87447306 | [13] | SQUARE NUT | CASIf Used |
| 17. | 336371A1 | [13] | PIN | CAS |
| 18. | 87728917 | [1] | PLATE | BURPLATE, COVER, Left Hand Superseded by part number: 87496574 |
| 19. | 87728913 | [1] | PLATE | BURPLATE, COVER, Right Hand Superseded by part number: 87496577 |
| 20. | 356924A3 | [1] | LATCH | CASHood |
| 21. | 87728921 | [2] | HANDRAIL | BURHANDLE |
| 22. | 87439797 | [2] | WEAR PAD | BUR |
| 23. | 931860R1 | [8] | HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8 | IH Superseded by part number: 87313767 |
| 24. | 86595832 | [2] | CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd | NH |
| 25. | 827-16060 | [4] | BOLT,Hex, M16 x 2 x 60mm, Cl 10.9 | CASUsed On Some Models Superseded by part number: 11119133 |
| 25. | 627-16050 | [4] | BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd | CASUsed On Some Models Superseded by part number: 412398 |
| 26. | 896-11016 | [10] | WASHER,17.5mm ID x 30mm OD x 4mm Thk | IH Superseded by part number: 86625266 |
| 27. | 832-10416 | [6] | NUT,M16 x 2, Cl 8 | CAS Superseded by part number: 412066 |
| 28. | 627-12025 | [4] | BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 398792 |
| 32. | 87600304 | [1] | SCREEN | BURSCREEN, Radiator Brush |
| 33. | 854-10025 | [6] | BOLT,Hvy Hex, M10 x 25mm, Cl 10.9 | CAS Superseded by part number: 87015905 |
