纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-19) - CANOPY, ROPS - HEADLINER, FLOORMAT AND MIRROR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
235 次

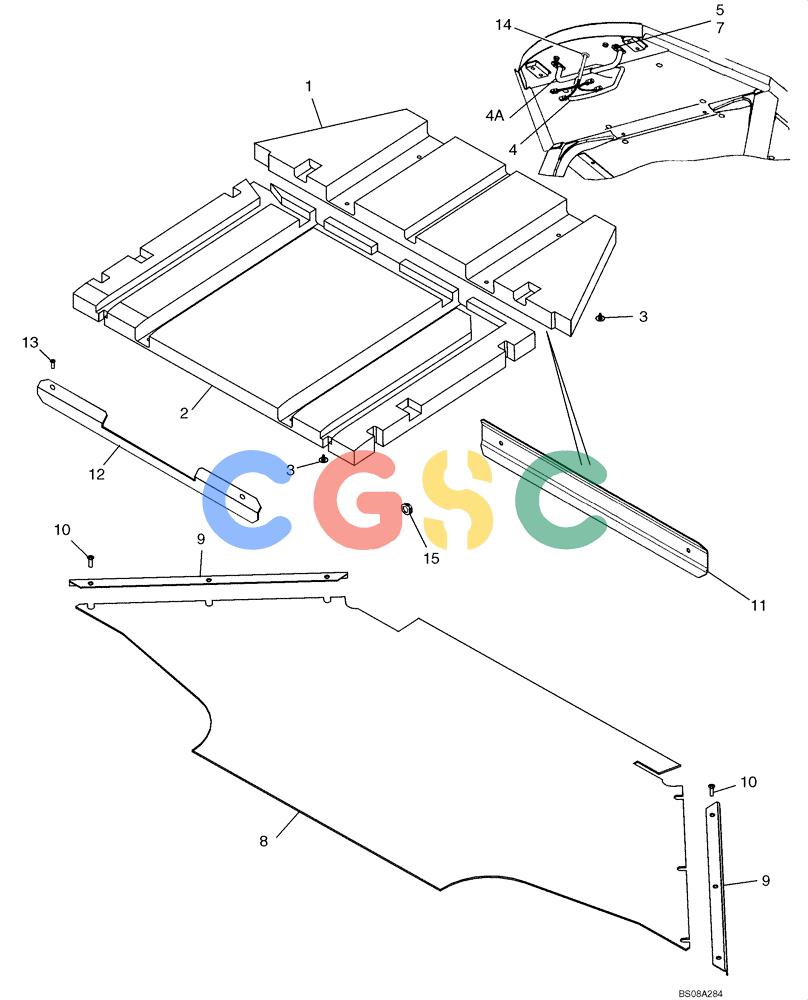

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87437767 | [1] | ROOF LINING | BURFront ROPS Headliner |
| 2. | 87437768 | [1] | ROOF LINING | BURRear ROPS Headliner |
| 3. | 151-706 | [10] | CLIP,Rd 7/8" Hd, 1/4" Hole | CAS Superseded by part number: 774849 |
| 4. | 76067706 | [1] | REAR VIEW MIRROR | LEC |
| 4A. | 87444309 | [1] | BRACKET | BUR |
| 5. | 614-8025 | [2] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43127 |
| 7. | 892-11008 | [2] | LOCK WASHER,M8 | IH Superseded by part number: 72187304, 83990583 |
| 8. | 87532477 | [1] | MAT | BURFloormat |
| 9. | 76067625 | [2] | RETAINER | LEC |
| 10. | 87341593 | [6] | SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8 | BURM6 x 20 Oval Countersunk, Phillips Head |
| 11. | 87311638 | [1] | PLATE | BURHeadliner Retainer, Front |
| 12. | 87313220 | [1] | PLATE | BURHeadliner Retainer, Rear |
| 13. | 760-14613 | [4] | SELF-TAP SCREW,Pan Hd, M6.3 x 13 | CAS6.3 x 13 Superseded by part number: 973738 |
| 14. | 248-1220 | [1] | GROMMET,3/4" ID x 1 3/8" x .062", Diag Cut | CAS |
| 15. | 248-1370 | [2] | GROMMET | DUBGROMMET |
