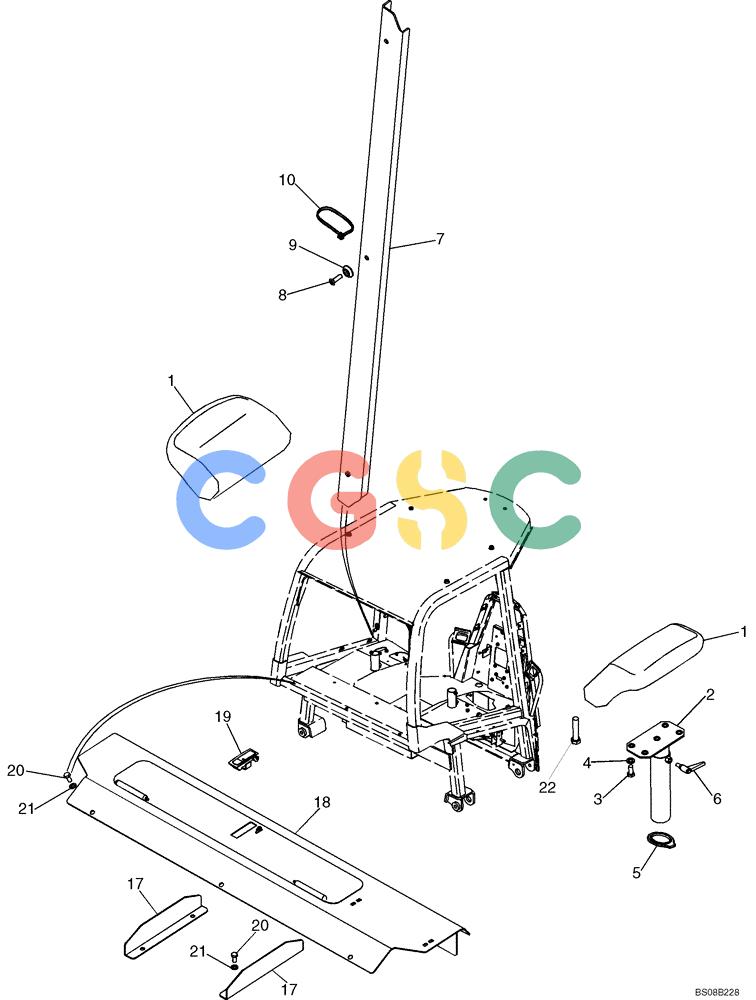

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-20) - CANOPY, ROPS - ARMRESTS, TOOLBOX AND COVERS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
670 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067361 | [2] | ARMREST | LEC |
| 2. | 87608818 | [2] | SUPPORT | BHBSUPPORT |
| 3. | 614-8016 | [8] | BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd | CAS Superseded by part number: 16043224 |
| 4. | 895-11008 | [8] | WASHER,M8 x 16 x 1.6 | CAS Superseded by part number: 86624184 |
| 5. | 76067464 | [2] | SEAL | LECArmrest Seal |
| 6. | 87446967 | [2] | HANDLE | BURHandle Armrest, Plastic Handle |
| 7. | 443798A1 | [1] | PROTECTIVE COVER | BURLamp Harness Cover, ROPS Post |
| 8. | 79105220 | [3] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 9. | 79076208 | [3] | WASHER | LECNylon |
| 10. | L18331 | [3] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
| 17. | 87445567 | [2] | PLATE | BURDivider Plate |
| 18. | 87445428 | [1] | PLATE ASSY. | BURToolbox Plate; Incl. 19 |
| 19. | 356924A3 | [1] | LATCH | CASIncludes Hardware |
| 20. | 627-10020 | [9] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106031 |
| 21. | 895-11010 | [9] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 22. | 627-10030 | [2] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | CAS, Serial Range: -22 Superseded by part number: 9515003 |
