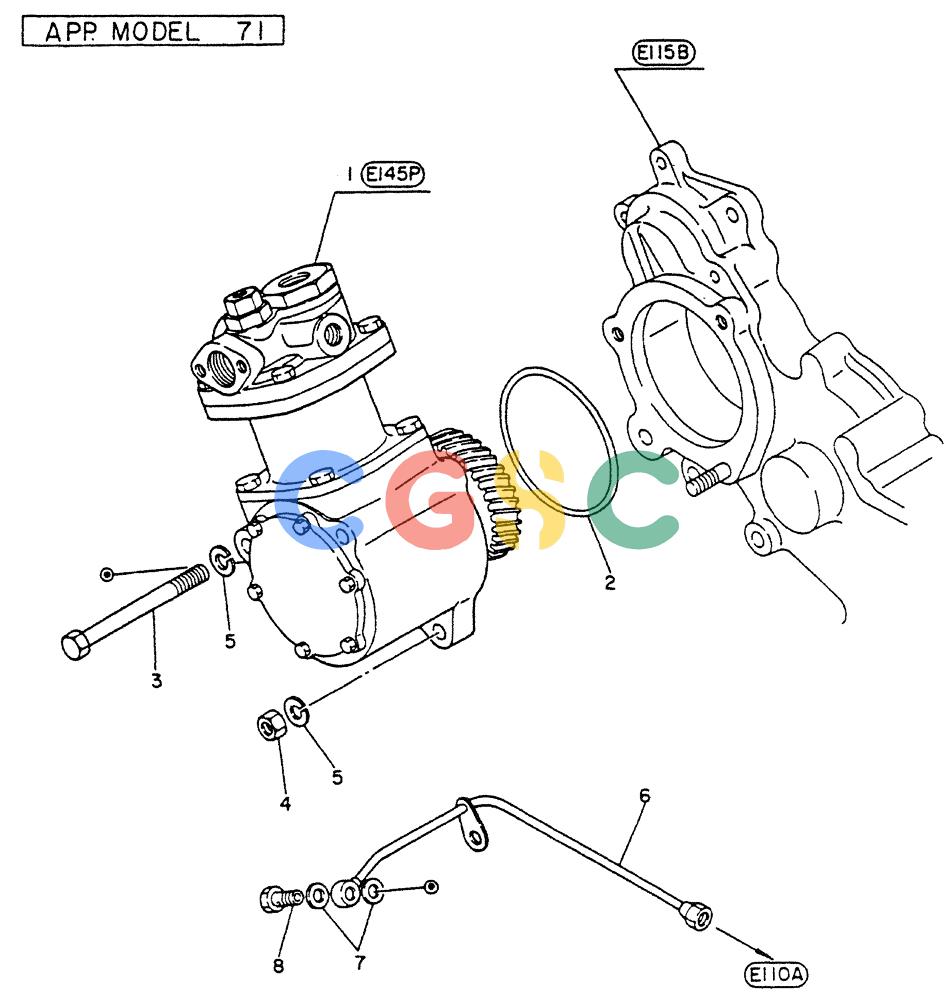

神钢零件查询(FD6T04) - NISSAN DIESEL ENGINE - LK500 (1/06-12/06) (03-007) - COMPRESSOR-AIR (FITTING PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
388 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONCOMPRESSOR -AIR (FITTING PARTS) |
| 1. | VG14501Z5500 | [1] | AIRCOND. COMPRESSOR | KOBCOMPRESSOR ASSY-AIR (INNER PARTS 03-008), FOR 71 ONLY |
| 2. | VG14612Z5500 | [1] | O-RING | KOBO-RING, FOR 71 ONLY |
| 3. | VG2002090002 | [2] | BOLT BOLT, FOR 71 ONLY | BOLT BOLT, FOR 71 ONLY |
| 4. | VG0891124010 | [1] | NUT | KOBNUT, FOR 71 ONLY |
| 5. | VG0891514010 | [3] | WASHER WASHER-SPRING, FOR 71 ONLY | WASHER WASHER-SPRING, FOR 71 ONLY |
| 6. | VG15112Z5500 | [1] | TUBE | KOBTUBE ASSY, FOR 71 ONLY |
| 7. | VG0135121104 | [2] | GASKET | KOBGASKET, FOR 71 ONLY |
| 8. | VG0161900314 | [1] | SCREW | KOBBOLT-EYE, FOR 71 ONLY |
