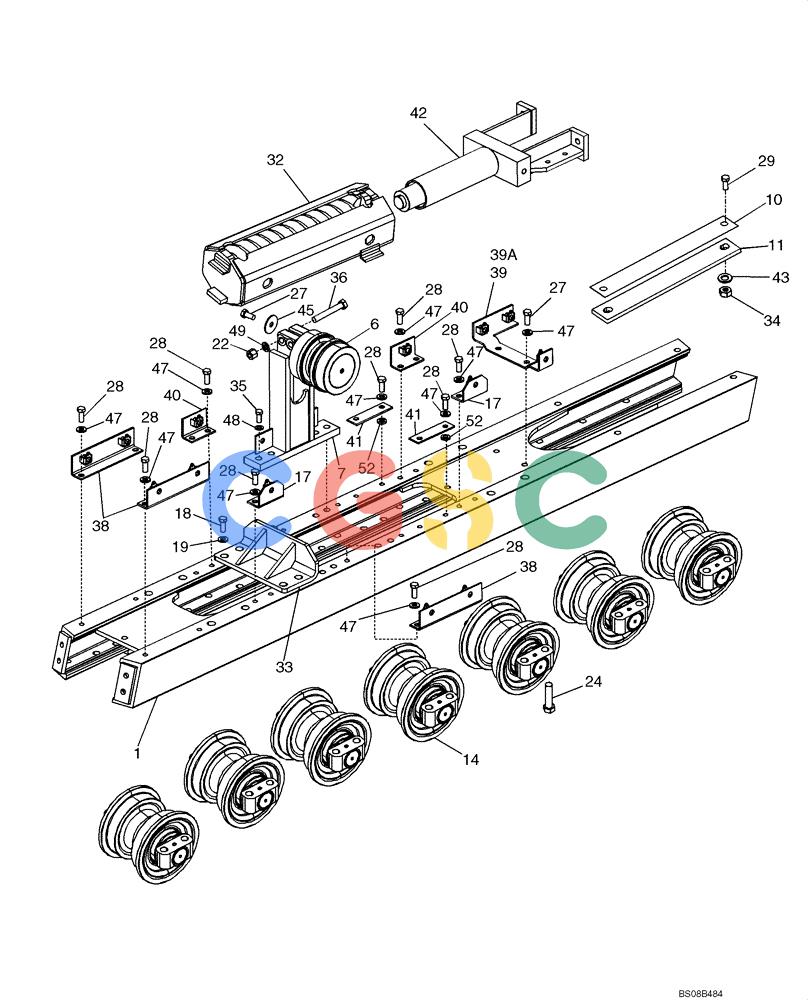

| 1. | 87559526 | [2] | FRAME | BURTrack |
| 6. | 87353982 | [2] | ROLLER | BURROLLER ASSY., Carrier; See Figure 05-07 |
| 7. | 87353994 | [2] | BRACKET, SUPPORTING | BURCarrier, Roller |
| 10. | 87559519 | [4] | SHIM | BURIdler |
| 11. | 87559520 | [4] | BAR | BURIdler Wear |
| 14. | 87581583 | [14] | ROLLER | BURROLLER ASSY. |
| 17. | 87644147 | [2] | BRACKET | BURBRACKET, Cover Mount, Outter Side of Track |
| 18. | 426-1228 | [8] | BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8 | CAS Superseded by part number: 86632560 |
| 19. | 496-11081 | [8] | WASHER,13/16" x 1 1/2" x .134", HDN | CAS Superseded by part number: 394632 |
| 22. | 232-41410 | [4] | LOCK NUT,5/8"-11, GC | CAS Superseded by part number: 85700693 |
| 24. | 409-91248 | [56] | BOLT,Hex, 3/4" - 10 x 3", Gr 5 | BRR |
| 27. | 413-816 | [6] | BOLT,Hex, 1/2" - 13 x 1", Gr 5 | CAS Superseded by part number: 87909 |
| 28. | 413-820 | [36] | BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5 | CAS Superseded by part number: 87670, 72187215 |
| 29. | 413-1040 | [8] | BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5 | CAS Superseded by part number: 280233 |
| 32. | 419386A1 | [2] | HOUSING ASSY. | CASRecoil Spring |
| 33. | 419391A2 | [2] | BRACKET | CASRecoil, Stop |
| 34. | 425-1010 | [8] | NUT,5/8"-11, G5 | CAS Superseded by part number: 280374 |
| 35. | 426-1032 | [8] | BOLT,Hex, 5/8" - 11 x 2", Gr 8 | CAS Superseded by part number: 86508732 |
| 36. | 426-1064 | [4] | BOLT,Hex, 5/8" - 11 x 4", Gr 8 | CAS Superseded by part number: 9804395 |
| 38. | 430453A1 | [6] | BRACKET | BURCover |
| 39. | 431877A1 | [1] | BRACKET | BURCover, Right Track L- Shaped |
| 39A. | 431795A1 | [1] | BRACKET | BURCover,Left Track L- Shaped, Not Illustrated |
| 40. | 430454A1 | [1] | BRACKET | BUR |
| 41. | 419387A1 | [4] | STRAP | CASPlate |
| 42. | 435383A1 | [1] | YOKE | CASASSY., Track Adj. RH |
| 42A. | 435384A1 | [1] | YOKE | CASASSY., Track Adj. LH |
| 43. | 492-11062 | [8] | BEARING WASHER,5/8" | CAS Superseded by part number: 86729275 |
| 45. | 495-91167 | [2] | WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk | CAS |
| 47. | 496-21053 | [40] | WASHER,17/32" x 1 1/16" x .134" | CAS Superseded by part number: 86624188 |
| 48. | 496-21066 | [8] | WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk | CAS Superseded by part number: 5122064 |
| 49. | 87023159 | [4] | WASHER,0.64" ID x 1.05" OD x 0.13" Thk | SAS |
| 52. | R24323 | [8] | WASHER | CAS |
