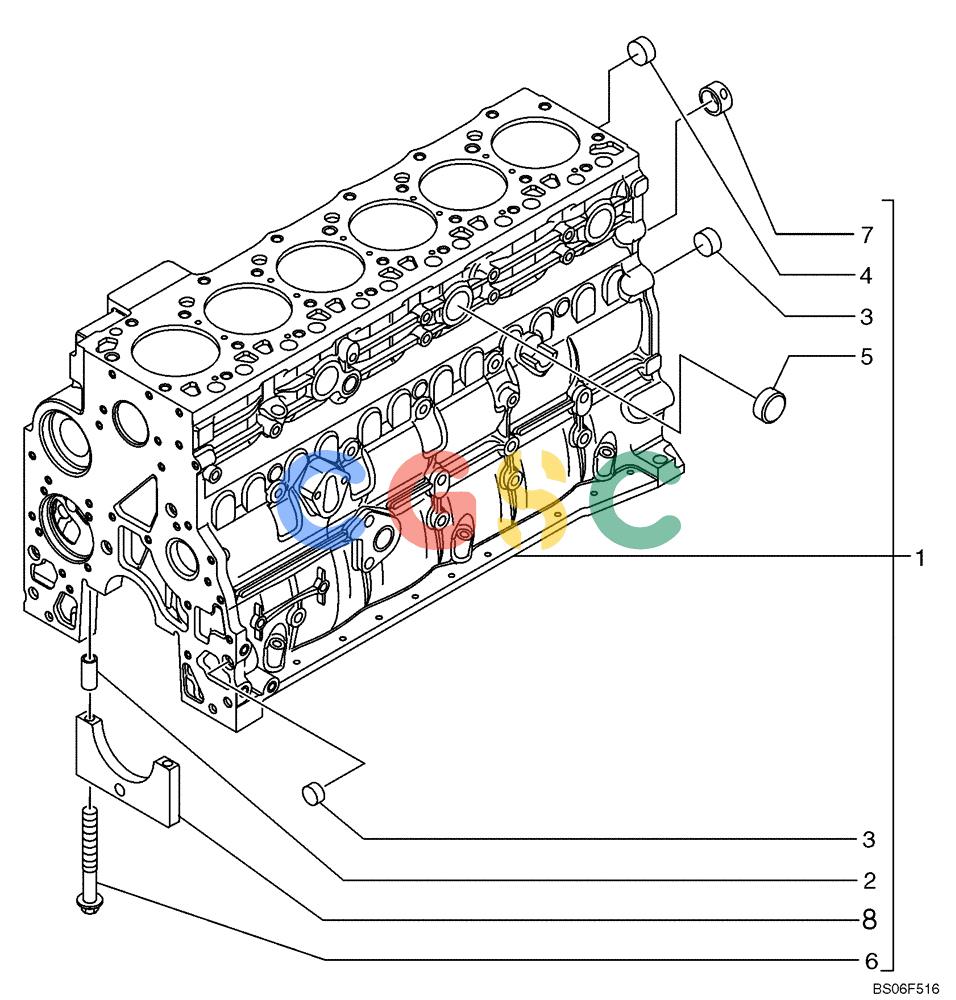

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-18) - CYLINDER BLOCK - MAIN BEARINGS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
336 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 4899026 | [2] | DOWEL,M18 x 10 | TORRing |
| 3. | 4895039 | [2] | EXPANSION PLUG,M17.73 | TOR |
| 4. | 4895038 | [6] | EXPANSION PLUG,M58.06 | TOR |
| 5. | 4895228 | [3] | EXPANSION PLUG,35.23mm x 7.94mm | TOR |
| 6. | 4891353 | [14] | SCREW,Flg Hd, M12 x 1.5 x 120 | TOR |
| 7. | 4895040 | [1] | BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L | TOR |
| 8. | 4895919 | [6] | BEARING ASSY | TORMain; With Hole; Incl. Ref 2 |
| 8. | 4895921 | [1] | BEARING ASSY | TORMain; Without Hole; Incl. Ref 2 |
