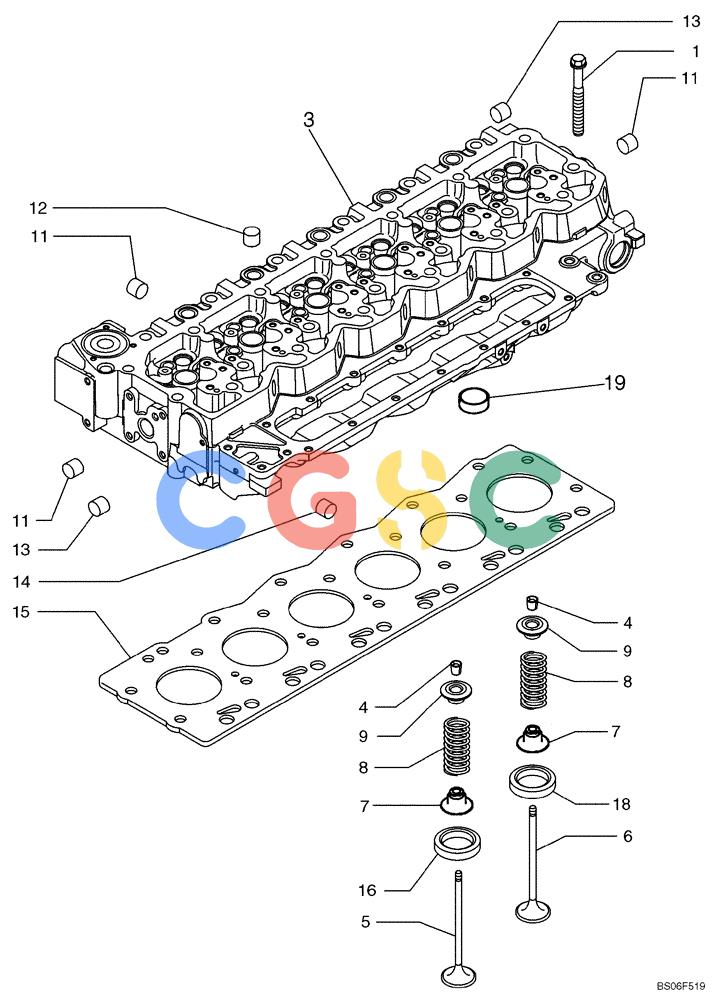

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-27) - CYLINDER HEAD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
209 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4891024 | [12] | BOLT,Flng, M12 x 1.75 x 130mm | TORM12X130 |
| 1. | 4891025 | [14] | SCREW,Flng, M12 x 1.75 x 150mm | TORM12X150 |
| 3. | 2831274 | [1] | CYLINDER HEAD | TORCylinder Head Assembly; Incl. Ref 4 - 14, 16-19 |
| . . | 2831274R | [1] | REMAN-CYLINDER HEAD | TORD150B DOZER TIER 3 (10/07-) |
| . . | 2831274C | [1] | CORE-CYLINDER HEAD | TORReturn Number |
| 3. | 2831279 | [1] | CYLINDER HEAD | TORAssembly, Alternate Part for 2831274 |
| . . | 87536188 | [1] | CYLINDER HEAD | TOR- ASSY Include Ref. 3,4,5,6,7,8,9 |
| . . | 87536188R | [1] | REMAN-CYLINDER HEAD | MKTD150B TIER 3 (HYDRO) (10/07-) |
| . . | 87536188C | [1] | CORE-CYLINDER HEAD | MKTReturn Number |
| 4. | 4899081 | [48] | ROCKER ARM COTTER | TORASSY |
| 5. | 4895051 | [12] | STD EXHAUST VALVE | TORSTD ENGINE EXHAUST VALVE |
| 6. | 4895052 | [12] | STD INLET VALVE | TORSTD ENGINE INLET VALVE Intake |
| 7. | 2831287 | [24] | SEAL | TORValve Stem Seal |
| 8. | 4895073 | [24] | VALVE SPRING | TOR Superseded by part number: 2831473 |
| 9. | 4895074 | [24] | CUP | TORRetainer |
| 11. | 4895085 | [13] | EXPANSION PLUG,25.74mm | TOR |
| 11. | 4895408 | [2] | PLUG | TOR.511" OD |
| 12. | 4895089 | [11] | PLUG | TOR.886" OD |
| 13. | 4895406 | [7] | EXPANSION PLUG,9.8mm OD | TOR |
| 14. | 4895407 | [2] | EXPANSION PLUG | TOR38.28mm OD |
| 15. | 2830704 | [1] | CYLINDER HEAD GASKET,1.25mm Thk | TOR1.25 mm; If Used |
| 15. | 2830705 | [1] | CYLINDER HEAD GASKET,1.15mm Thk | TOR1.15 mm; If Used |
| 16. | 4897106 | [12] | VALVE SEAT | TOR |
| 18. | 4897578 | [12] | VALVE SEAT | TOR |
| 19. | 4893036 | [3] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
