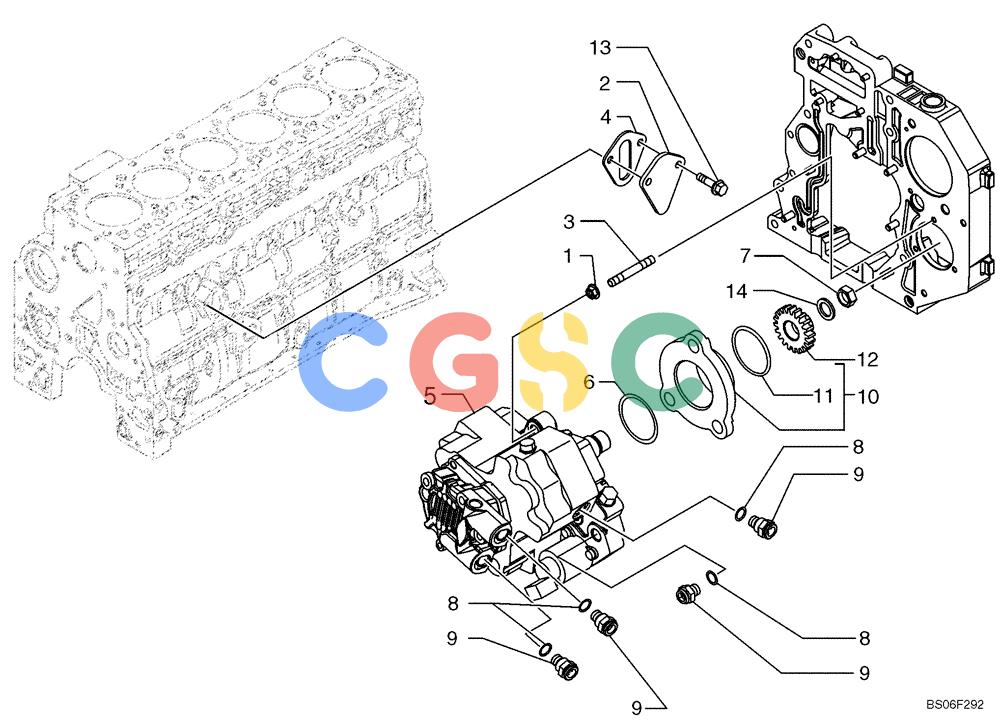

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (03-03) - FUEL INJECTION PUMP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
986 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 17044731 | [3] | FLANGE NUT,Hex, M8 x 1.25, Cl 10 | LECReplaces 4899003 Superseded by part number: 17044735 |
| 2. | 4896952 | [1] | COVER | TOR |
| 3. | 2852488 | [3] | STUD | SMSTUD, M8X1.25X50 |
| 4. | 4890700 | [1] | GASKET,1.21mm Thk | TOR |
| 5. | 4898921 | [1] | FUEL INJECTION PUMP | TORIncl. Ref 6 - 9, 14 Superseded by part number: 5801382396 |
| . . | 84385110R | [1] | REMAN-INJECTION PUMP | TORD150B CRAWLER DOZER TIER 3 (HYDRO) (10/07-), Reman for New P/N 4898921 |
| . . | 84385110C | [1] | CORE-INJECTION PUMP | TORReturn Number |
| 5. | 4898921R | [1] | REMAN-INJECTION PUMP | MKTD150B w/T3 Eng. Superseded by part number: 84385110R |
| 5. | 4898921C | [1] | CORE-INJECTION PUMP | MKTReturn Number |
| 6. | 4890088 | [1] | O-RING,44mm ID x 3mm Width | TOR Superseded by part number: 42549209 |
| 7. | 4890634 | [1] | NUT | TORM18X1.5 |
| 8. | 93156604 | [4] | GASKET | LECReplaces 4891385 Superseded by part number: 42556616 |
| 9. | 4893962 | [4] | QUICK MALE COUPLING | TORM12, Quick Disconnect Superseded by part number: 42559146 |
| 10. | 2852804 | [1] | HUB | TORASSY; Adapter, Incl. Ref 11 Superseded by part number: 504041278 |
| 11. | 2852805 | [1] | O-RING | TOR |
| 12. | 4893389 | [1] | DRIVEN GEAR | TORFuel Pump |
| 13. | 87803136 | [2] | SCREW | TORFlange, M8 x 20; Replaces 2852234 Superseded by part number: 16978124 |
| 14. | 17095814 | [1] | WASHER | PASpring; Replaces 4890635 |
