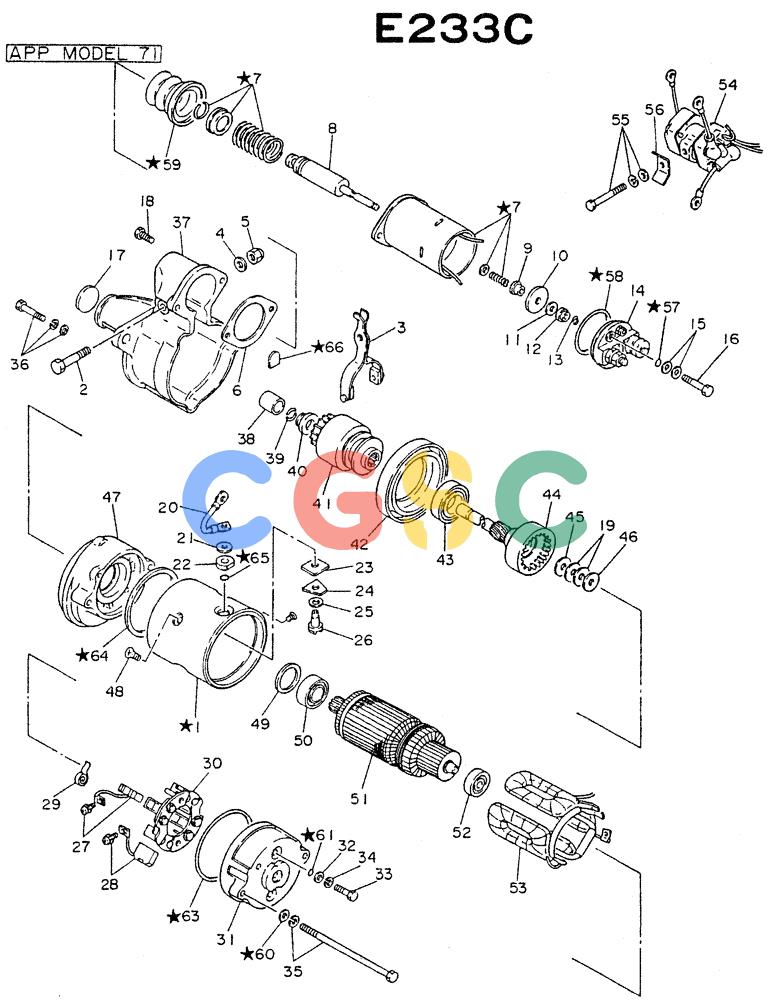

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (08-008) - MOTOR STARTING (INNER PARTS) "NIKKO MAKE" Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
180 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-66. | VG2330095012 | [1] | STARTER MOTOR | KOBMOTOR-STARTING |
| 2. | VG2331199000 | [1] | PIN-LEVER | |
| 3. | VG2332299110 | [1] | LEVER-SHIFT | |
| 4. | VG2332099100 | [1] | WASHER-PLAIN | |
| 5. | VG2333599000 | [1] | NUT | |
| 6. | VG2312499013 | [1] | PLATE | |
| 7-16. | VG2334399211 | [1] | SOLENOID | KOBSWITCH ASSY-MAGNETIC (INC.KEY NO.57-59) |
| 8. | VG2335899002 | [1] | PLUNGER | |
| 9. | VG2331599013 | [1] | BUSH-INSULATE | |
| 10. | VG2335999000 | [1] | CONTACTOR-MOVING | |
| 11. | VG2332099003 | [1] | WASHER-INSULATE | |
| 12. | VG2333099114 | [4] | HOLDER | |
| 13. | VG2337099001 | [2] | RING-CLIP | |
| 14. | VG2339799006 | [1] | TERMINAL ASSY | |
| 15. | VG2332099004 | [2] | MASHER | |
| 16. | VG2332399101 | [2] | BOLT | |
| 17. | VG2315499007 | [1] | PLUG | |
| 18. | VG2332399102 | [2] | BOLT | |
| 19. | VG2332099010 | [2] | WASHER | |
| 20. | VG2336199000 | [1] | WIRE-READ | |
| 21. | VG2332099006 | [1] | WASHER | |
| 22. | VG2332099014 | [1] | WASHER-INSULATE | |
| 23. | VG2336299000 | [1] | SHEET-INSULATE | |
| 24. | VG2336299001 | [1] | SHEET-INSULATE | |
| 25. | VG2332099007 | [1] | WASHER | |
| 26. | VG2336399001 | [1] | RIVET | |
| 27-33. | VG2333799208 | [1] | BRACKET BRACKET ASSY-FR (INC. KEY NO.60-63) | BRACKET BRACKET ASSY-FR (INC. KEY NO.60-63) |
| 27. | VG2333199100 | [2] | BRUSH BRUSH | BRUSH BRUSH |
| 28. | VG2333199019 | [2] | BRUSH BRUSH | BRUSH BRUSH |
| 29. | VG2333399015 | [4] | SPRING-BRUSH | |
| 30. | VG2333099113 | [1] | HOLDER-BRUSH | |
| 31. | VG2333799209 | [1] | BRACKET-REAR | |
| 32. | VG2332099012 | [2] | MASHER | |
| 33. | VG2332399105 | [2] | BOLT | |
| 34. | VG2332099008 | [2] | WASHER | |
| 35. | VG2332399106 | [2] | BOLT | |
| 36. | VG2332399109 | [3] | BOLT BOLT ASSY | BOLT BOLT ASSY |
| 37. | VG2336099002 | [1] | BRACKET-FRONT | |
| 38. | VG2331999100 | [1] | METAL | |
| 39. | VG2337099002 | [2] | RING-CLIP | |
| 40. | VG2336999100 | [1] | STOPPER-PINION | |
| 41. | VG2336599000 | [1] | CLUTCH | KOBCLUTCH ASSY-OVER RUNNING Superseded by part number: 2336599000 |
| 42. | VG2331799015 | [1] | BRACKET-CENTER | |
| 43. | VG2338399202 | [1] | BEARING-BALL | |
| 44. | VG2334899014 | [1] | SHAFT ASSY | |
| 45. | VG2332099009 | [1] | MASHER | |
| 46. | VG2332099011 | [1] | WASHER-INSULATE | |
| 47. | VG2331799016 | [1] | BRACKET-CENTER | |
| 48. | VG2330599005 | [4] | SCREW | |
| 49. | VG2332099005 | [2] | WASHER | |
| 50. | VG2338399206 | [1] | BEARING BEARING-BALL | BEARING BEARING-BALL |
| 51. | VG2331099207 | [1] | RADIATOR PANEL ARMATURE ASSY | RADIATOR PANEL ARMATURE ASSY |
| 52. | VG2338399207 | [1] | BEARING BEARING-BALL | BEARING BEARING-BALL |
| 53. | VG2330699211 | [1] | COIL-FIELD | |
| 54. | VG2334399208 | [1] | THERMOSTAT | KOBSWITCH Superseded by part number: 2334399208 |
| 55. | VG2332399110 | [1] | BOLT | |
| 56. | VG2333099117 | [1] | SPECIAL TOOLS MTLG CAT. HOLDER | SPECIAL TOOLS MTLG CAT. HOLDER |
| 57-66. | VG2334499113 | [1] | SEAL KIT SEAL KIT | SEAL KIT SEAL KIT |
