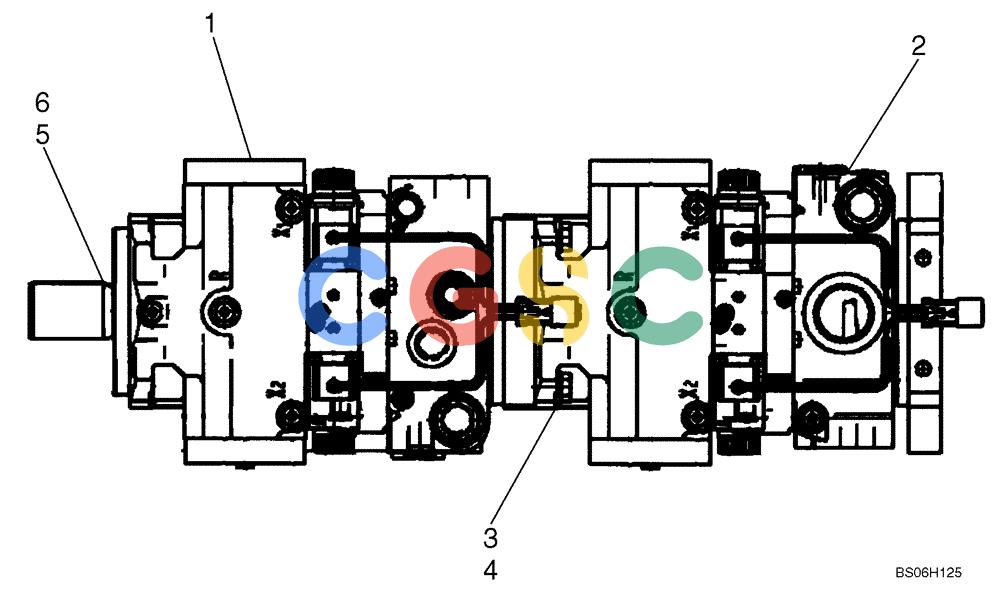

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (06-12) - PUMP ASSEMBLY, TANDEM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
331 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87313549 | [1] | HYDROSTATIC PUMP,105 CC | BURPUMP, Tandem, Incl. Ref 1 - 6; Also Includes Parts On Figure 06-13 Superseded by part number: 84345381 |
| . . | 87313549R | [1] | REMAN-HYD PUMP | BRRTandem |
| . . | 87313549C | [1] | CORE-HYDRAULIC PUMP | BRRReturn Number |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONPump, Shaft End |
| 3. | 87516827 | [4] | SCREW,Hex, M12 x 30mm, Cl 8.8 | BURM12 x 30 Screw |
| 4. | 87516828 | [4] | WASHER | BURM12 Washer |
| 5. | 87516839 | [2] | SEAL,50mm ID x 80mm OD x 7mm Thk | BURSEALRING 50 x 80 x 7/5 Internal Shaft Seal |
| 6. | 87441406 | [2] | RING | BUR |
