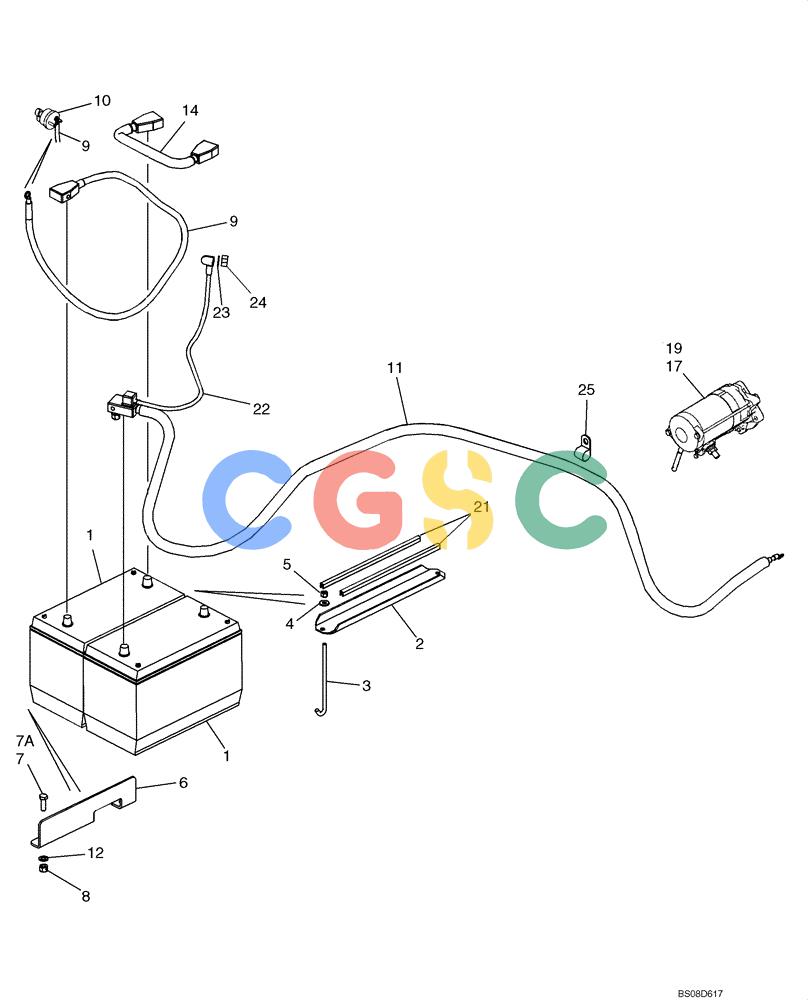

| 1. | BMF31E | [2] | DRY BATTERY | CAS12V Superseded by part number: BMF31G |
| 2. | R46490 | [1] | BRACKET | CAS |
| 3. | 416297A1 | [2] | ROD | CAS5/16 |
| 4. | 896-15008 | [2] | WASHER,9mm ID x 21mm OD x 2.5mm Thk | CAS Superseded by part number: 87015284 |
| 5. | 832-10408 | [2] | NUT,M8 x 1.25, Cl 8 | CAS Superseded by part number: 86528579 |
| 6. | 417789A1 | [1] | ANGLE | CAS |
| 7. | 614-10030 | [2] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd | IHNo Longer Used; Order 614-10035 Superseded by part number: 43140 |
| 7A. | 614-10035 | [2] | BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd | CAS Superseded by part number: 9706704 |
| 8. | 832-10410 | [2] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 9. | 86982902 | [1] | NEG BATTERY CABLE | BURBlack; To Master Disconnect Switch |
| 10. | 87409316 | [1] | SWITCH | IMOMaster Disconnect; Component Parts Not Serviced Separately; Replaces R52278; Also See Figure 04-08 |
| 11. | 87390947 | [1] | CABLE ASSY. | BURPositive, Red; To Starter |
| 12. | 895-11010 | [2] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 14. | 87532598 | [1] | CABLE ASSY. | BURCable, Red Wire, Includes Conduit;, Serial Range: Battery-Battery |
| 17. | R54620 | [3] | BOLT | CAS |
| 19. | 8605784 | [1] | STARTING MOTOR | FARSee Figure 04-01 |
| . . | 8605784R | [1] | REMAN-STARTER | FARD150B Tier 3 (10/07-) |
| . . | 8605784C | [1] | CORE-STARTER | MKTReturn Number |
| 21. | D40442 | [2] | Trim, 12 in, Cut From F42827 116 Inch Bulk Trim | MOLDING |
| 22. | 87608546 | [1] | CABLE | BURWire, Alternator; To Relay Mounting Panel |
| 23. | 893-11008 | [1] | LOCK WASHER,Ext Tooth, M8 | CAS Superseded by part number: 86632601 |
| 25. | 515-25238 | [1] | CLAMP,15/16", Insul, 1/2" Bolt | CASUses Existing Hardware Superseded by part number: 86625037 |
