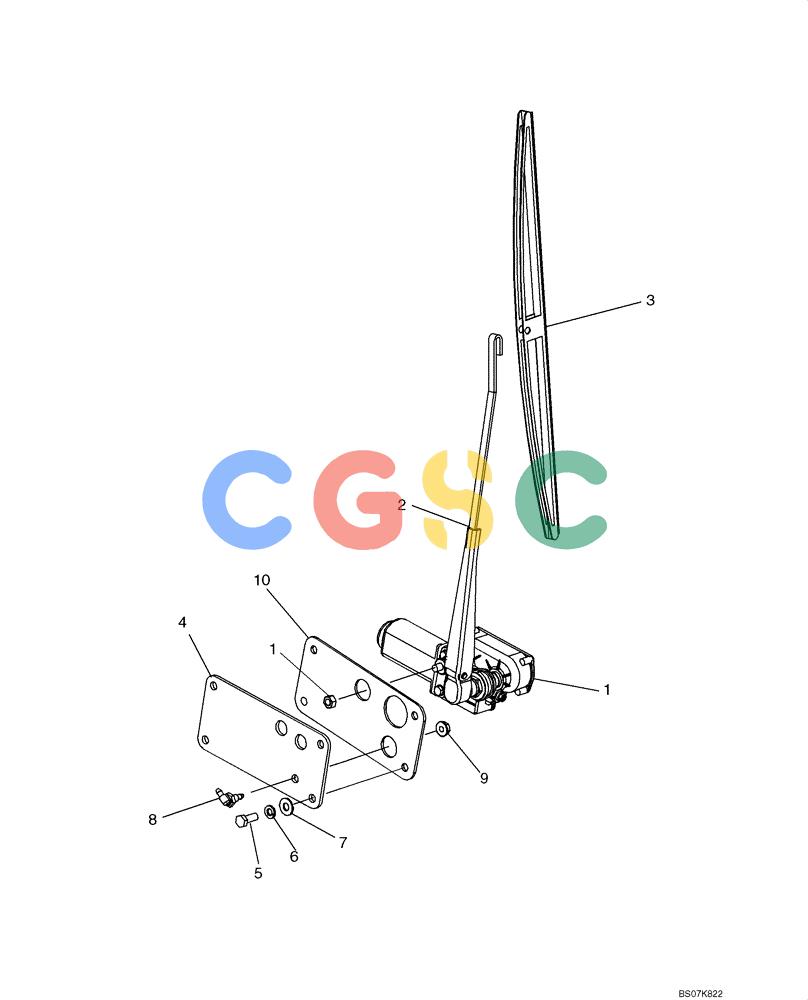

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (04-22) - WIPER, REAR - CAB New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
789 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87397405 | [1] | WIPER MOTOR | BURREAR; 24V |
| 2. | 87397406 | [1] | WIPER ARM | BURRear |
| 3. | 87397407 | [1] | WIPER BLADE | BURRear Superseded by part number: 73329275 |
| 4. | 87584644 | [1] | MOUNTING PLATE | BURPlate |
| 5. | 614-8020 | [4] | BOLT,Hex, M8 x 1.25 x 20mm | CAS Superseded by part number: 120104 |
| 6. | 892-11008 | [4] | LOCK WASHER,M8 | IH Superseded by part number: 72187304, 83990583 |
| 7. | 895-15008 | [4] | WASHER,M8 x 20 x 1.6 | CAS Superseded by part number: 86625263 |
| 8. | 1968053C1 | [1] | ELBOW | IH90 deg Elbow |
| 9. | 825-2408 | [1] | FLANGE NUT,M8 x 1.25, Flg, Cl 8 | CAS Superseded by part number: 9804277 |
| 10. | 87732221 | [1] | GASKET | BURGASKET, Rear Wiper |
