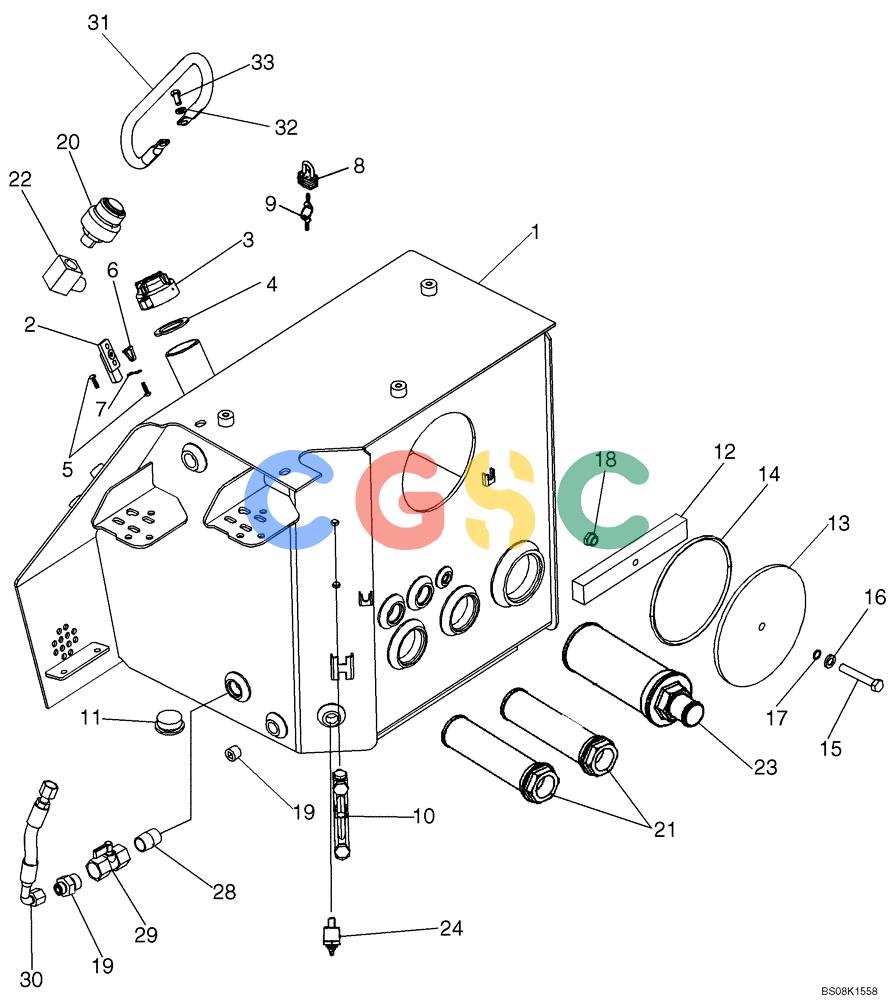

| . . | 87695176 | [1] | TANK, Hydraulic Oil; Complete; Incl. Ref 1 - 19; See Figure 09-09 For Mounting | |
| 1. | 87695178 | [1] | TANK, Unpainted; Incl. Ref 2 | |
| 2. | R46704 | [1] | BRACKET | CASTab; Fill Tube; Weld-On Fill Tube |
| 3. | L128669 | [1] | CAP | CASFill Tube |
| 4. | 87557921 | [1] | GASKET,43mm ID x 61mm OD x 3mm Thk | BUR |
| 5. | 301-14712 | [2] | SCREW,Drive, #12 x 3/4" | CAS |
| 6. | R48634 | [1] | FASTENER | CASHook; Swivel |
| 7. | R47786 | [1] | CHAIN (CE) | CAS241 mm (9-1/2 in) |
| 8. | D93753 | [1] | PADLOCK | CASIncl. 9; If Used |
| 9. | R29555 | [2] | KEY | CASFor Master Padlock Only; If Used Superseded by part number: D93753 |
| 9. | D93751 | [2] | SET OF 2 KEYS | CASFor Yale Padlock Only; If Used |
| 10. | 226456A1 | [1] | LEVEL GAUGE | CASSight; Component Parts Not Serviced Separately; Use with Loctite 243 Adhesive Thread |
| 11. | 86512333 | [1] | PLUG | SASPLUG, O-Ring Boss Socket Head Plug, Includes O-Ring 570186, Use With Loctite 592 |
| . . | 238-6114 | [4] | O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro | CASUsed With Gauge Superseded by part number: 9626944 |
| 12. | L50741 | [1] | BAR | CASHolddown |
| 13. | L128352 | [1] | COVER | CASAccess |
| 14. | 238-5442 | [1] | O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro | CAS |
| 15. | 113-2462 | [1] | BOLT,Hex, 1/2" - 13 x 3", Gr 5 | CAS |
| 16. | 238-5112 | [1] | O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro | CAS Superseded by part number: 14457080 |
| 17. | L78045 | [1] | WASHER | CAS |
| 18. | 131-510 | [1] | LOCK NUT,1/2"-13 | CAS |
| 19. | 217-465 | [1] | DRAIN PLUG,Hex Soc, 1/2"-14, NPTF | CASUse with Loctite 592 |
| 20. | R42675 | [1] | BREATHER | CASUse With Loctite No. 592 |
| 21. | 87346332 | [2] | FILTER STRAINER | BURSuction Strainer, Mesh; 56.8 mm dia x 228.6 mm lg; Incl. Ref 21A |
| 21A. | 84153258 | [1] | O-RING,3mm Thk x 59.4mm ID, 70 Duro | BURO-RING, Not Illustrated |
| 22. | 221-1415 | [1] | ELBOW,90º, 3/4"-14, NPT | CAS90 deg NPTF Male/Female; Use With Loctite 592 |
| 23. | 426784A1 | [1] | FILTER STRAINER | BURStrainer, Suction; Mesh; 81.8 mm dia x 261.6 mm lg; Incl. Ref 23A |
| 23A. | 84153256 | [1] | O-RING,3mm Thk x 83mm ID, 70 Duro | BURO-RING; Not Illustrated |
| 24. | A166057 | [1] | TEMPERATURE SENDER | CASTransmission Oil Temperature; Use With Loctite No. 592 Superseded by part number: 84300765 |
| 28. | 221-1185 | [1] | FITTING | CAS1/2 NPTF x 1-1/8 in; Use With Loctite 592 Superseded by part number: 221-185 |
| 29. | 86984713 | [1] | SHUT-OFF VALVE | BUROne-Way; Use With Loctite 592 |
| 30. | 284452A2 | [1] | FUEL HOSE,9.53 mm ID x 1900.00 mm, SAE 30R7 | CASCooler to Tank; Environmental Drain; For Storage Use (2) L18337 Tie Straps On Left Side Door |
| 31. | 87728875 | [1] | HANDLE | BURGRAB HANDLE |
| 32. | 896-11012 | [2] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 33. | 614-12025 | [2] | BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd | IH Superseded by part number: 300388 |
