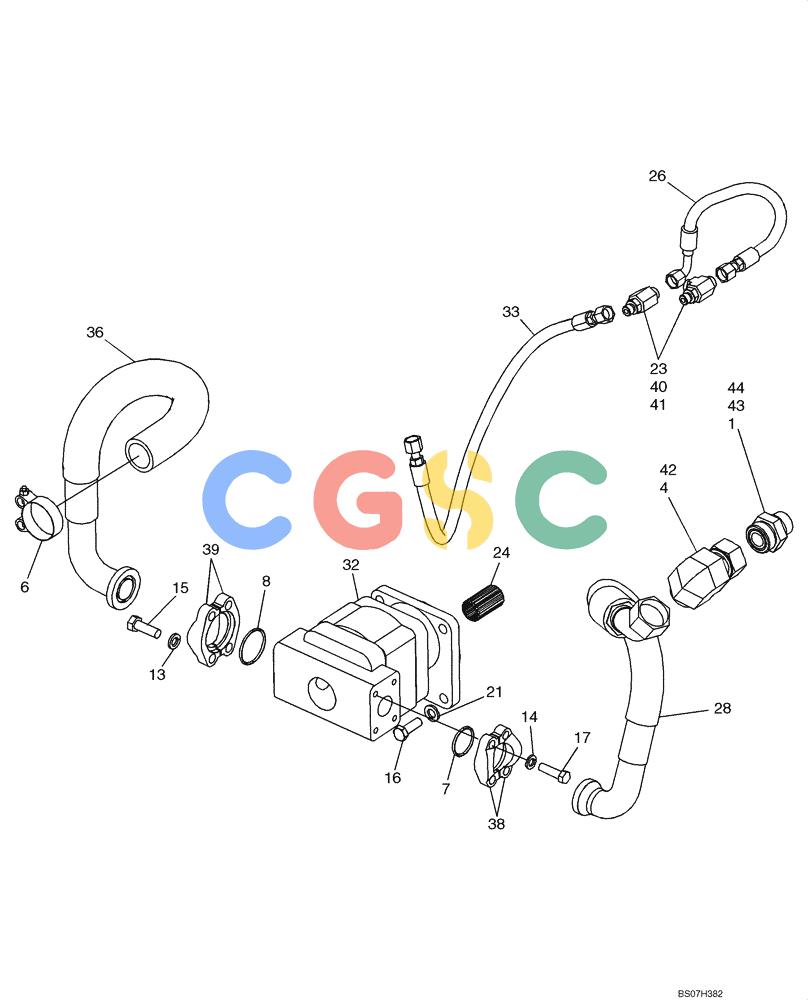

| 1. | 201-134 | [1] | HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/16"-12 ORB | CASCONNECTOR, HYD.Incl. Ref 43, 44 |
| 4. | 201-359 | [1] | ELBOW,90º, 1 11/16"-12 x 1 11/16"-12 Fem Sw ORFS | CASIncl. Ref 42 |
| 6. | 214-2130 | [1] | CLAMP,#30, 1.81"-2.06", T-Bolt | CAS Superseded by part number: 71404506 |
| 7. | 238-5222 | [1] | O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro | CAS Superseded by part number: 14464080 |
| 8. | 238-6225 | [1] | O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro | CAS |
| 13. | 80679 | [4] | LOCK WASHER,1/20.507 CST ZND | NH |
| 14. | 81547 | [4] | BEARING WASHER,7/16" | NH |
| 15. | 87689 | [4] | BOLT,1/2"-13 x 1.813" OAL, Cl 5 | NH |
| 16. | 300389 | [4] | BOLT,M12 x 1.75 x 35mm | NH Superseded by part number: 628-12035 |
| 17. | 9637916 | [4] | BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5 | NH |
| 21. | 86625255 | [4] | WASHER,13.3mm ID x 24.5mm OD x 3mm Thk | GI |
| 23. | 87305436 | [2] | HYD CONNECTOR | BHBTee; Incl. Ref 40, 41 |
| 24. | 87324775 | [1] | SPACER | BURSPACER |
| 26. | 87533710 | [1] | HOSE ASSY. | BURHOSE ASSY., 385 mm (15 - 5/32 in); Accumulator Drain |
| 28. | 87567942 | [1] | HOSE,31.75mm ID x 720mm L, SAE 100R17 | BURHOSE ASSY., 720 mm (28 - 3/8 in), Suction, Equipment Pump |
| 32. | 87604362 | [1] | HYDRAULIC PUMP | BURPUMP, HYDRAULIC; See Figure 08-12 |
| 32. | 87604362R | [1] | REMAN-HYD PUMP | BURD150B TIER 3 (HYDRO) (10/07-) |
| 32. | 87604362C | [1] | CORE-HYDRAULIC PUMP | BURReturn Number |
| 33. | 87611626 | [1] | HOSE ASSY. | BURHOSE ASSY., 615 mm (24 - 1/4 in), Control, Serial Range: Valve-Tank |
| 36. | 87667606 | [1] | HOSE ASSY. | BURHOSE ASSY., 1012 mm (39 - 7/8 in); Hose Equip. Pump Suction, At Tank; Attaches to Suction Filter in Hydraulic Reservoir |
| 38. | A12301 | [2] | CLAMP,Half | CAS |
| 39. | A14157 | [2] | FLANGE | CAS |
| 40. | 238-6012 | [2] | O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro | CAS Superseded by part number: 9993141 |
| 41. | 237-6006 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | CAS Superseded by part number: 9617873 |
| 42. | 238-6025 | [1] | O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro | CAS Superseded by part number: 9824051 |
| 44. | 237-6016 | [1] | O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro | CAS Superseded by part number: 72186238, 167268 |
