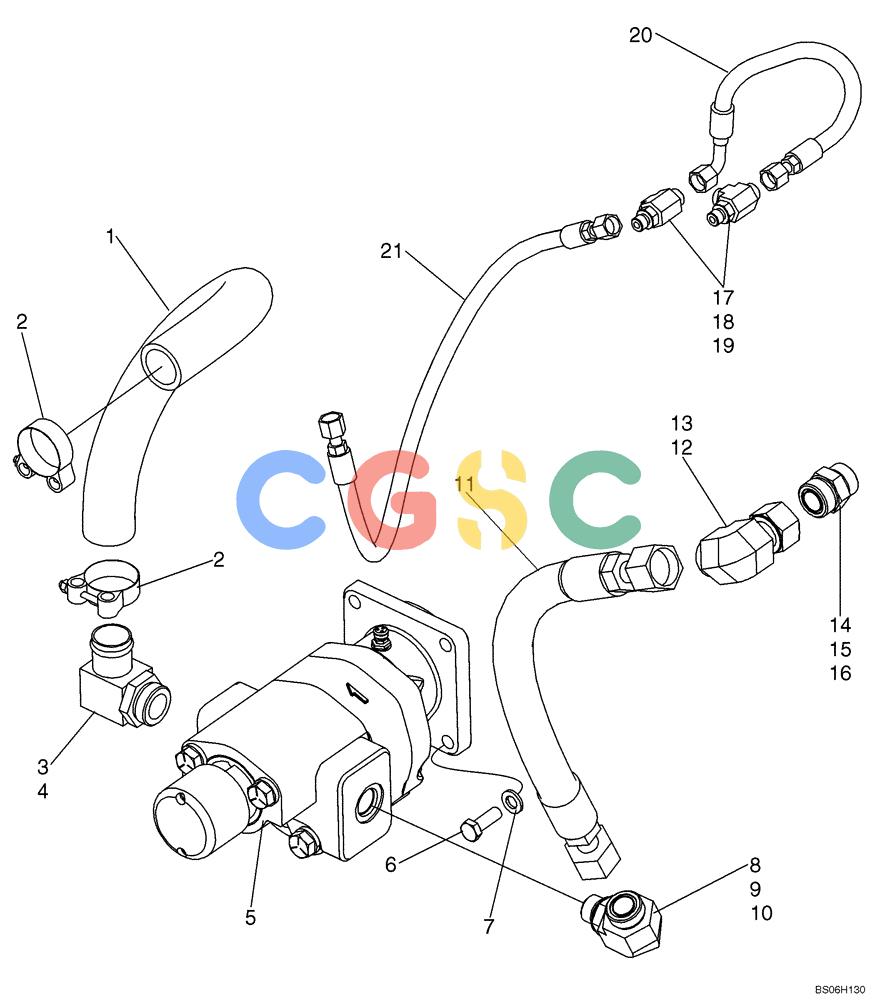

| 1. | 87567944 | [1] | HOSE ASSY. | BURHOSE ASSY., 910 mm (35 - 7/8 in); At Tank; Attaches to 426784A1 Suction Filter in Hydraulic Reservoir |
| 2. | 214-2130 | [2] | CLAMP,#30, 1.81"-2.06", T-Bolt | CASIncl. Hardware; Superseded by part number: 71404506 |
| 3. | 217-365 | [1] | FITTING,90º, 1 1/2" Hose x 1 5/8"-12 ORB Beaded | CASIncl. Ref 4 |
| 4. | 237-6020 | [1] | O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro | CAS Superseded by part number: 87779389, 570186 |
| 5. | 87331905 | [1] | HYDROSTATIC PUMP,65.6 CC | BUREquipment; Models With PTO; See Figure 08-13 |
| . . | 87331905R | [1] | REMAN-HYDROSTATIC PUMP | BUREquipment |
| . . | 87331905C | [1] | CORE-HYDROSTATIC PUMP | BURReturn Number |
| 6. | 300389 | [4] | BOLT,M12 x 1.75 x 35mm | NH Superseded by part number: 628-12035 |
| 7. | 86625255 | [4] | WASHER,13.3mm ID x 24.5mm OD x 3mm Thk | GI |
| 8. | 201-313 | [1] | ELBOW,90º, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS | CASELBOW, Incl. Ref 9, 10 Superseded by part number: 9846956 |
| 9. | 238-6021 | [1] | O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 87473574 |
| 10. | 237-6012 | [1] | O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro | CASBoss End Superseded by part number: 72186120, 167266, 79051113 |
| 11. | 87567943 | [1] | HOSE ASSY. | BURHOSE ASSY., 685 mm (27 in); Equipment Pump to Control Valve |
| 12. | 201-339 | [1] | ELBOW,90º, 1 7/16"-12 x 1 7/16"-12 Fem Sw ORFS | CASIncl. Ref 13 |
| 14. | 201-105 | [1] | HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/16"-12 ORB | IHIncl. Ref 15, 16 Superseded by part number: 9824055 |
| 16. | 237-6016 | [1] | O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro | CASBoss End Superseded by part number: 72186238, 167268 |
| 17. | 87305436 | [2] | HYD CONNECTOR | BHBTee Includes Ref 18, 19 |
| 18. | 238-6012 | [2] | O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 9993141 |
| 19. | 237-6006 | [2] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | CASBoss End Superseded by part number: 9617873 |
| 20. | 87533710 | [1] | HOSE ASSY. | BURHOSE ASSY., 385 mm (15 - 5/32 in); Accumulator Drain |
| 21. | 87611626 | [1] | HOSE ASSY. | BURHOSE ASSY, 615 mm (24 - 1/4 in); Control Valve to Tank; Replaces 87369671 |
