纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (08-24) - CYLINDER ASSY. - ANGLE (LT & XLT) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
842 次

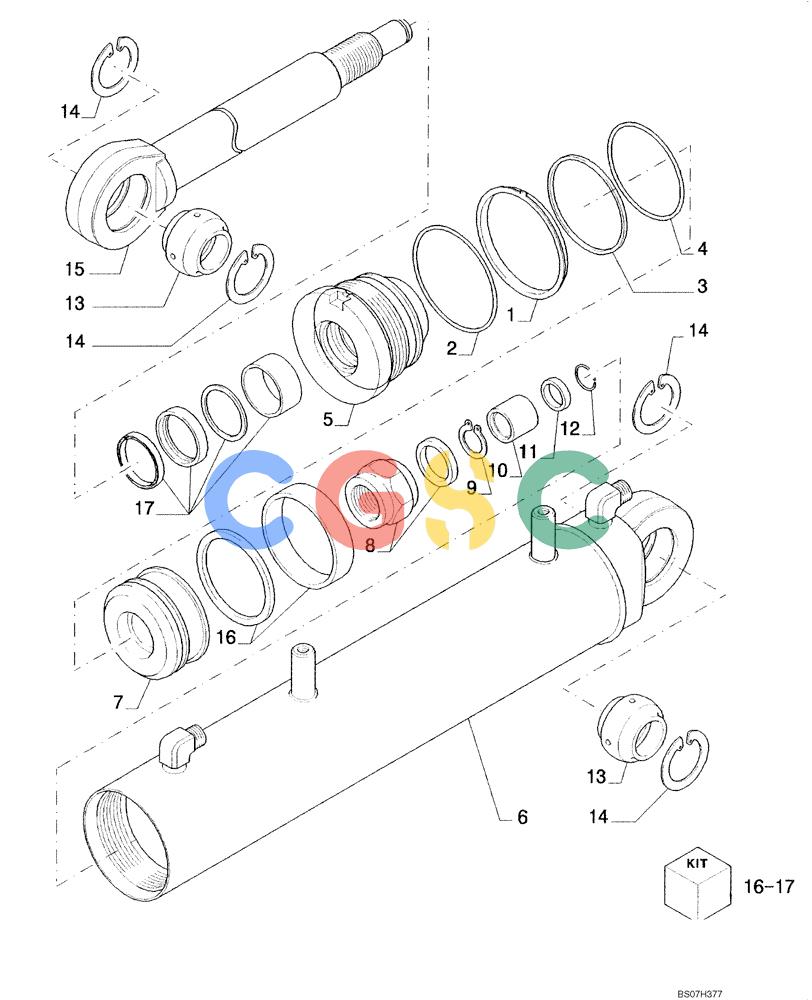

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 76089276 | [2] | OPERATING CYLINDER | LECAssy., Angle; Incl Ref., 1 - 17; Used on Models with LT, XLT Superseded by part number: 76045930 |
| 1. | 76066273 | [1] | CIRCLIP | LEC |
| 2. | 76066274 | [1] | O-RING | LEC |
| 3. | 76066275 | [1] | WASHER, THRUST | LECWASHER,THRUST |
| 4. | 76066276 | [1] | O-RING | LEC |
| 5. | 76066277 | [1] | BASE PLATE | LEC- FRONT |
| 6. | 76066278 | [1] | ENGINE CYLINDER LINER | LEC |
| 7. | 76066279 | [1] | PISTON | LEC |
| 8. | 76066264 | [1] | LOCK NUT | LEC |
| 9. | 76066283 | [2] | CIRCLIP | LEC |
| 10. | 76066284 | [1] | GUIDE BUSHING | LEC |
| 11. | 76066285 | [1] | RING | LEC |
| 12. | 76066286 | [1] | LOCKING RING | LEC |
| 13. | 76066287 | [2] | ARTICULATION | LEC Superseded by part number: 79037239 |
| 14. | 76066288 | [4] | CIRCLIP | LEC |
| 15. | 76066293 | [1] | ROD | LEC |
| 16. | 76066271 | [1] | SEAL KIT | LEC- PISTON SEALS |
| 17. | 76066272 | [1] | GASKET KIT | LEC- ROD |
