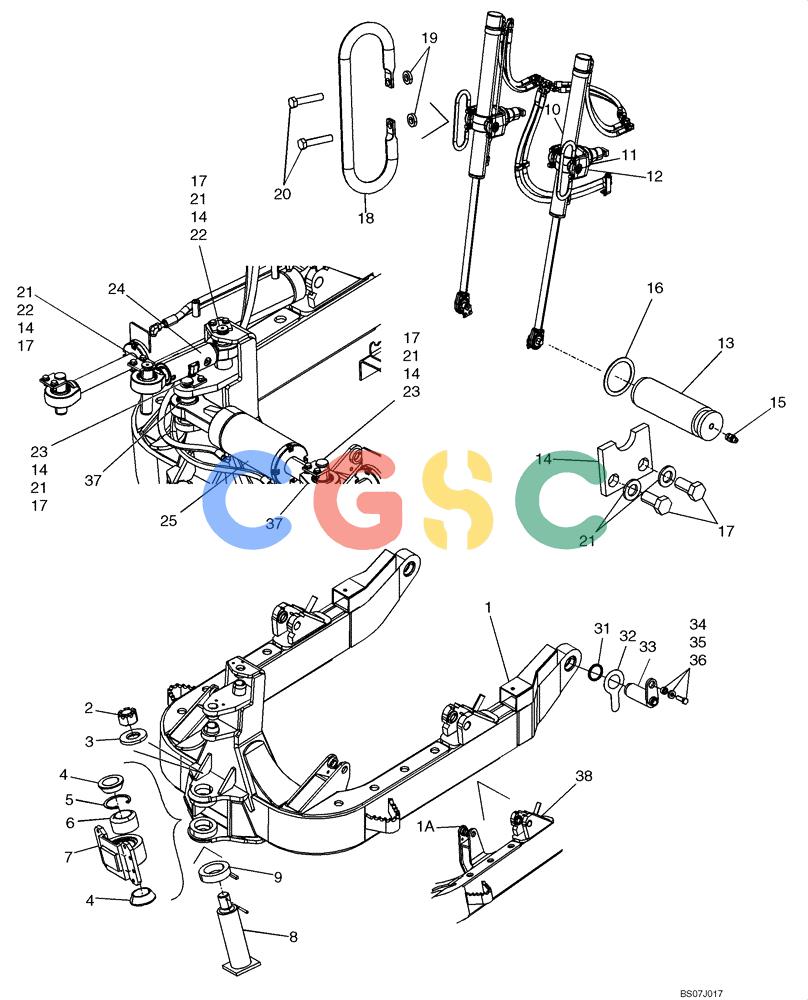

| 1. | 87674693 | [1] | FRAME | BURC- Frame Assy., Used on Models with LT |
| 1A. | 87674697 | [1] | FRAME | BURC- Frame Assy,., Used on Models with XLT, LGP |
| 2. | 70913467 | [1] | NUT | CMI |
| 3. | 76093740 | [1] | WASHER | LEC |
| 4. | 76093730 | [2] | SPACER | LEC |
| 5. | 11076476 | [1] | SNAP RING,M130, Int | MKT Superseded by part number: 370014 |
| 6. | 76093727 | [1] | SPHERICAL BEARING,82.55mm ID x 130.18mm OD x 61.9mm W | LEC |
| 7. | 87682509 | [1] | SUPPORT | BURBlade Hinge Support Superseded by part number: 76093731 |
| 8. | 76093729 | [1] | PIN | LECAssy. |
| 9. | 14607871 | [1] | ROLL PIN | LEC |
| 10. | 87674696 | [2] | LIFT CYLINDER | BURCYLINDER, LIFT, See Figure 08-22 Superseded by part number: 76043960 |
| 10. | 76043960R | [2] | REMAN-HYD CYLINDER | TORD150B TIER 3 (HYDRO) (10/07-), Reman for New PN 87674696 |
| 10. | 76043960C | [2] | CORE-HYD CYLINDER | TORReturn Number |
| 11. | 87694649 | [2] | YOKE ASSY. | |
| 12. | 79092893 | [2] | SEAL | LEC |
| 13. | 219-8 | [2] | LUBE NIPPLE,1/4"-28 x 1/2" | CASTube Superseded by part number: 87414 |
| 14. | 76033228 | [2] | COVER PLATE | LEC |
| 15. | 76043886 | [2] | PIN | LEC Superseded by part number: 84204213 |
| 16. | 76041089 | [2] | SHIM | LEC |
| 17. | 627-12025 | [4] | BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 398792 |
| 18. | 87694408 | [2] | HANDLE | BURGRAB HANDLE |
| 19. | 87564723 | [6] | WASHER,15.3mm ID x 28.5mm OD x 6mm Thk | WICWASHER |
| 20. | 87556906 | [4] | BOLT,Hex, M14 x 70mm, Cl 10.9 | WIC |
| 21. | 895-11012 | [8] | WASHER,13.5mm ID x 24mm OD x 2.5mm Thk | CAS |
| 22. | 84204212 | [2] | PIN | BURStrut Superseded by part number: 84306890 |
| 23. | 84204211 | [2] | PIN,44.8mm OD x 186mm L | BURTilt Cylinder |
| 24. | 76089280 | [1] | TOP LINK | LECStrut |
| 25. | 76089278 | [1] | OPERATING CYLINDER | LECTilt; See Figure 08-23 Superseded by part number: 76043921 |
| 25. | 76043921R | [1] | REMAN-HYD CYLINDER | LECD150B CRAWLER DOZER TIER 3 (HYDRO), Tilt (10/07-), Reman for New PN 76089278 |
| 25. | 76043921C | [1] | CORE-HYD CYLINDER | LECReturn Number |
| 26. | 76089276 | [2] | OPERATING CYLINDER | LECAngle; Used on Models with LT, XLT; See Figure 08-24 Superseded by part number: 76045930 |
| 26A. | 76089427 | [2] | OPERATING CYLINDER,Double Acting, 55mm Rod, 509mm Stroke | LECAngle; Used on Models with LGP; See Figure 08-24A |
| 27. | 87680888 | [2] | GUARD | BUROver the Angle Cylinders |
| 28. | 627-12030 | [8] | BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd | IH Superseded by part number: 43260 |
| 29. | 12648521 | [8] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | IMO |
| 30. | 76089284 | [2] | GUARD | LECCovering the Hoses to Angle Cylinder; Used on Models with LT |
| 30A. | 76089417 | [2] | GUARD | LECCovering the Hoses to Angle Cylinder; Used on Models with XLT, LGP Superseded by part number: 76069544 |
| 31. | L113522 | [4] | SEAL | CAS |
| 32. | 87666368 | [1] | SHIM,64mm ID x 110mm OD x 0.5mm Thk | BUR |
| 33. | 84197015 | [2] | PIN,63.4mm OD x 167mm L | BURAssy., C- Frame |
| 34. | 8296969 | [2] | SPACER,18mm ID x 30mm OD x 13mm L | LEC |
| 35. | 79005240 | [2] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 36. | 412398 | [2] | BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd | NH |
| 37. | 76041090 | [1] | SHIM | LEC |
| 38. | 84204210 | [2] | PIN,39.8mm OD x 130mm L | BURAngle Cylinder |
