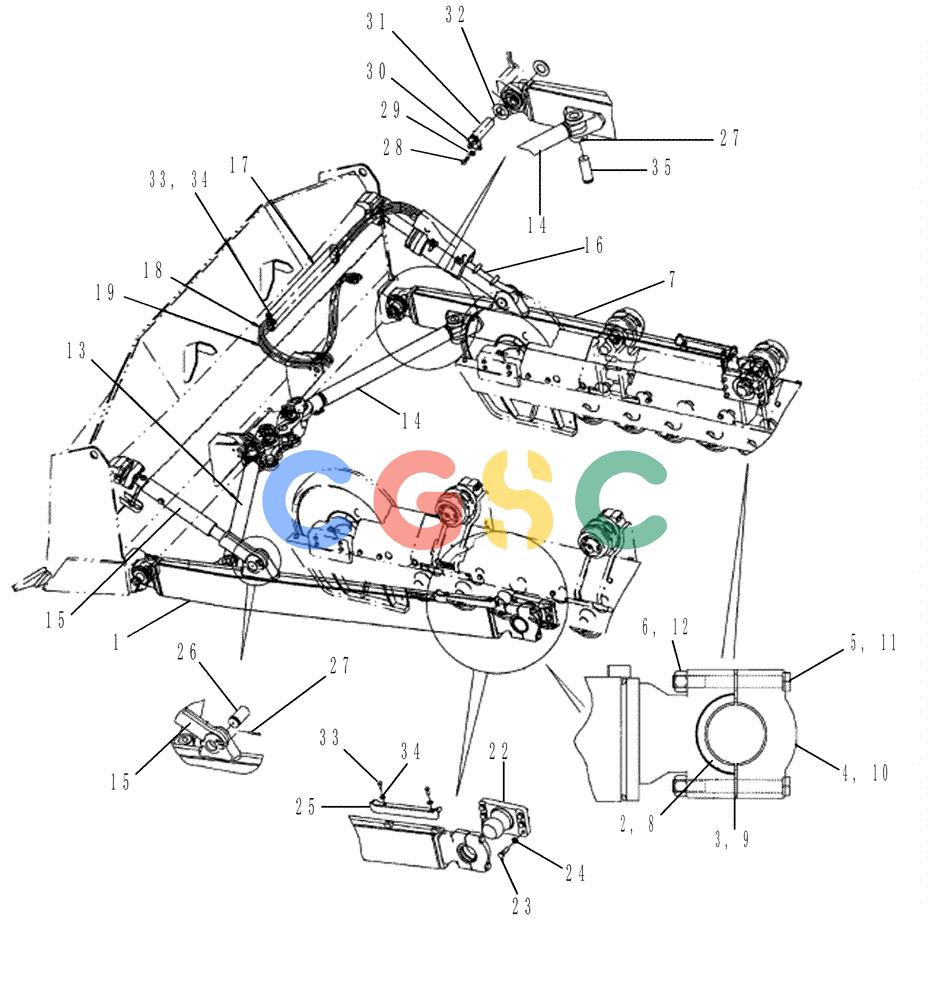

| 1. | 87678011 | [1] | BOOM ASSY, LH; Incl. Refs. 1A - 1E | |
| 2. | 8280721 | [1] | HALF-BUSHING | LEC |
| 3. | 8280723 | [1] | COVER PLATE | LEC |
| 4. | 8296713 | [2] | SUPPORT | LEC Superseded by part number: 76003029 |
| 5. | 514-1231 | [1] | BOLT | BHBBOLT, Hex, M20 x 1.5 x 180, Cl 10.9 Superseded by part number: 15990731 |
| 6. | 86015195 | [2] | NUT,M20 x 1.5, Cl 10 | RAC |
| 7. | 87678012 | [1] | BOOM ASSY, RH; Incl. Refs. 2A - 2E | |
| 13. | 76089483 | [1] | TIE-ROD | LECSee Figure 09-01B Superseded by part number: 76066166 |
| 14. | 76089484 | [1] | TIE-ROD | LECSee Figure 09-01B Superseded by part number: 76066162 |
| 15. | 76089480 | [1] | TIE-ROD | LECSee Figure 09-01B Superseded by part number: 79081632 |
| 16. | 76089486 | [1] | OPERATING CYLINDER | LECSee Figure 09-23A Superseded by part number: 76041029 |
| 17. | 76089489 | [1] | GUARD | LEC Superseded by part number: 76066188 |
| 18. | 76066216 | [1] | FLEXIBLE HOSE | LECTilt, 2900 mm (114 - 11/64 in) |
| 19. | 76066215 | [1] | FLEXIBLE HOSE | LECTilt, 2600 mm (102 - 3/8 in) |
| 20. | 12648501 | [4] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | BAS Superseded by part number: 12648521 |
| 21. | 627-12030 | [4] | BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd | IH Superseded by part number: 43260 |
| 22. | 87677312 | [2] | BALL STUD | BURBALL PIN PIN, Ball |
| 23. | 11122137 | [12] | BOLT,Hex, M18 x 60, 10.9, Full Thd | LECBOLT, Hex, M18 x 60 Superseded by part number: 11122124 |
| 24. | 87016606 | [12] | WASHER,20mm ID x 34mm OD x 3mm Thk | RAC |
| 25. | 76089488 | [2] | FOOTREST | LEC |
| 26. | 84194617 | [2] | PIN | BUR |
| 27. | 412071 | [4] | LOCK PIN,8mm OD x 70mm L, Slotted | NH |
| 28. | 627-14035 | [4] | BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd | SUM Superseded by part number: 11115631 |
| 29. | 895-11014 | [4] | WASHER,M14 x 28 x 2.5 | IH Superseded by part number: 87016605 |
| 30. | 76028734 | [4] | COVER PLATE | LEC |
| 31. | 84194619 | [2] | PIN | BUR |
| 32. | 8285653 | [4] | SPACER | LEC |
| 33. | 627-10030 | [2] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | CAS Superseded by part number: 9515003 |
| 34. | 896-15010 | [2] | WASHER,11mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86639325 |
| 35. | 84194618 | [2] | PIN | BUR |
