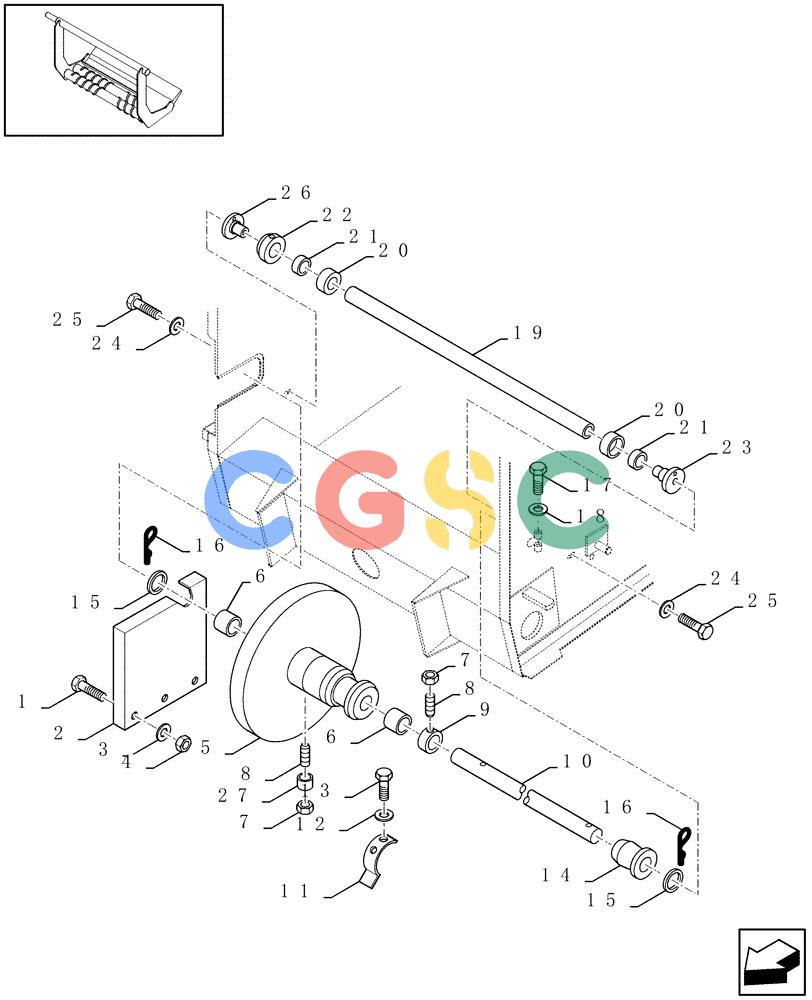

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (15.08[01]) - ROLL WRAP Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
582 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80300383
|
[3] |
SCREW,M10 x 16mm
|
ZED
M10x16 Superseded by part number: 300383
|
| 2. |
84024640
|
[1] |
PLATE
|
PLO
|
| 3. |
80378244
|
[3] |
LOCK WASHER
|
ZED
10MM Superseded by part number: 378244
|
| 4. |
100016
|
[3] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 5. |
84024644
|
[1] |
DRUM
|
PLO
|
| 6. |
84024752
|
[2] |
GUIDE BUSHING,25mm ID x 28mm OD x 30mm L
|
PLO
|
| 7. |
15896221
|
[1] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 8. |
80300473
|
[1] |
SCREW
|
PLO
M6x16
|
| 9. |
84024643
|
[1] |
BUSHING
|
PLO
|
| 10. |
84024642
|
[1] |
SHAFT
|
PLO
|
| 11. |
84024545
|
[2] |
GUIDE
|
PLO
|
| 12. |
80322357
|
[2] |
LOCK WASHER,Belleville, M6
|
ZED
6MM Superseded by part number: 322357
|
| 13. |
80300347
|
[2] |
SCREW
|
A
M6x10 Superseded by part number: 86585711
|
| 14. |
89823255
|
[1] |
GUIDE
|
PLO
Superseded by part number: 9823255
|
| 15. |
80726059
|
[2] |
WASHER
|
ZED
Superseded by part number: 84814994
|
| 16. |
80437424
|
[2] |
COTTER PIN
|
ZED
Superseded by part number: 437424
|
| 17. |
80120240
|
[1] |
M6x80
|
SCREW
|
| 18. |
80140040
|
[1] |
WASHER
|
ZED
6MM Superseded by part number: 140040
|
| 19. |
84025074
|
[1] |
ROLLER
|
PLO
Count roll
|
| 20. |
84024651
|
[2] |
BEARING HOUSING,34 mm ID x 40 mm OD x 18 mm
|
PLO
|
| 21. |
80362804
|
[2] |
BEARING ASSY
|
ZED
Superseded by part number: 87302841
|
| 22. |
84024583
|
[1] |
RING
|
PLO
|
| 23. |
84024788
|
[1] |
FLANGE
|
PLO
|
| 24. |
80140045
|
[2] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 25. |
80120111
|
[2] |
SCREW
|
ZED
M10x30 Superseded by part number: 43140
|
| 26. |
84024650
|
[1] |
FLANGE
|
PLO
|
| 27. |
84025508
|
[1] |
BUSHING
|
PLO
|
