纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-12A) - SIDE PANELS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
158 次

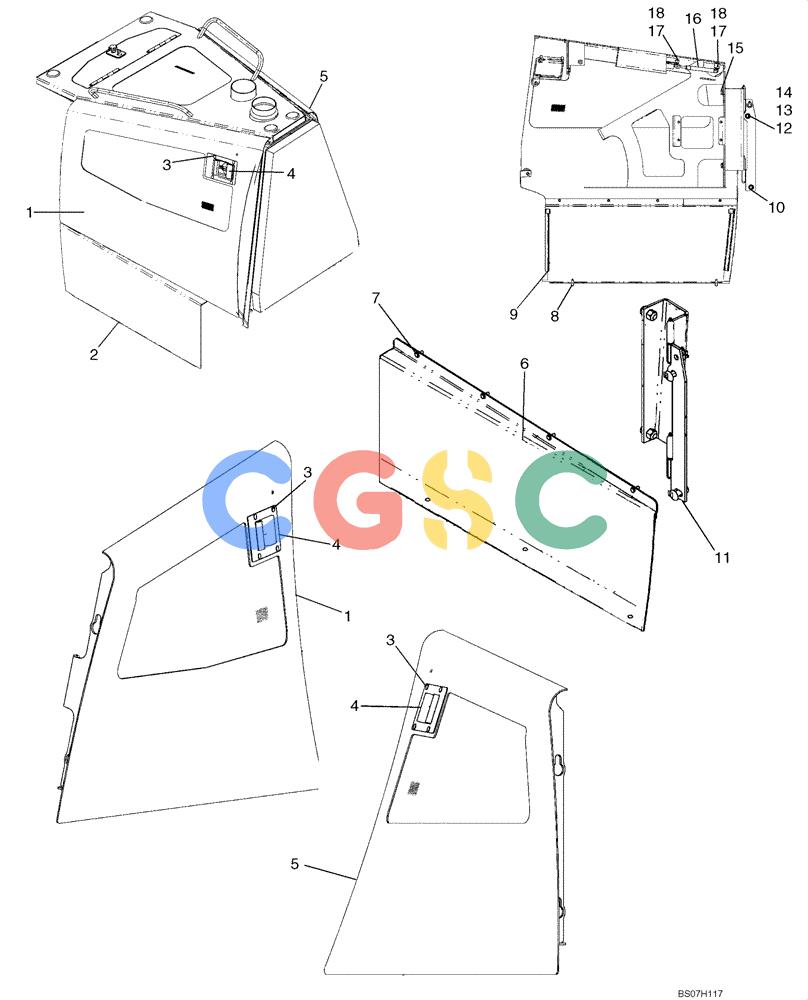

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87725836 | [1] | DOOR ASSY. | BURPANEL, SIDE, DOOR ASSY., Left-Hand; Incl. Ref 3, 4 Superseded by part number: 87725835, 86979019, 87353954 |
| 2. | 87609302 | [1] | PROTECTION PLATE | BURSIDE SHELID, Left-Hand |
| 3. | 151-567 | [8] | RIVET,Pop, 1/4" x .625" | BRR Superseded by part number: 86979019 |
| 4. | 87353954 | [2] | LATCH | BURHeavy Duty |
| 5. | 87725841 | [1] | DOOR ASSY. | BURPANEL, SIDE, DOOR ASSY., Right-Hand; Incl. Ref 3, 4 Superseded by part number: 87725840, 87353954, 86979019 |
| 6. | 87719046 | [1] | PROTECTION PLATE | BURSIDE SHEILD, Right-Hand |
| 7. | A161780 | [8] | BUMPER | CAS |
| 8. | 87611298 | [4] | PIN | BUR |
| 9. | 449674A1 | [4] | RUBBER SEAL,290mm L | BUR |
| 10. | 87609074 | [4] | HOOD | BURDOOR HINGE, Left-Hand |
| 11. | 87609076 | [1] | HOOD | BURDOOR HINGE, Right-Hand |
| 12. | 896-11012 | [4] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 13. | 832-10412 | [4] | NUT,M12 x 1.75, Cl 8 | CAS Superseded by part number: 87780366, 412126 |
| 14. | 811-12040 | [4] | CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8 | CAS Superseded by part number: 328754 |
| 15. | 87030508 | [4] | BOLT,M12 x 30 Full 10.9 ZND | GI |
| 16. | 252550A2 | [2] | GAS STRUT | CAS |
| 17. | 412250 | [4] | NUT,M8 x 1.25, Cl 8 | WIN Superseded by part number: 86528579 |
| 18. | 76078220 | [4] | HINGE | LEC |
