| Pos. | Part No | Qty | Parts name | Comments |
|---|

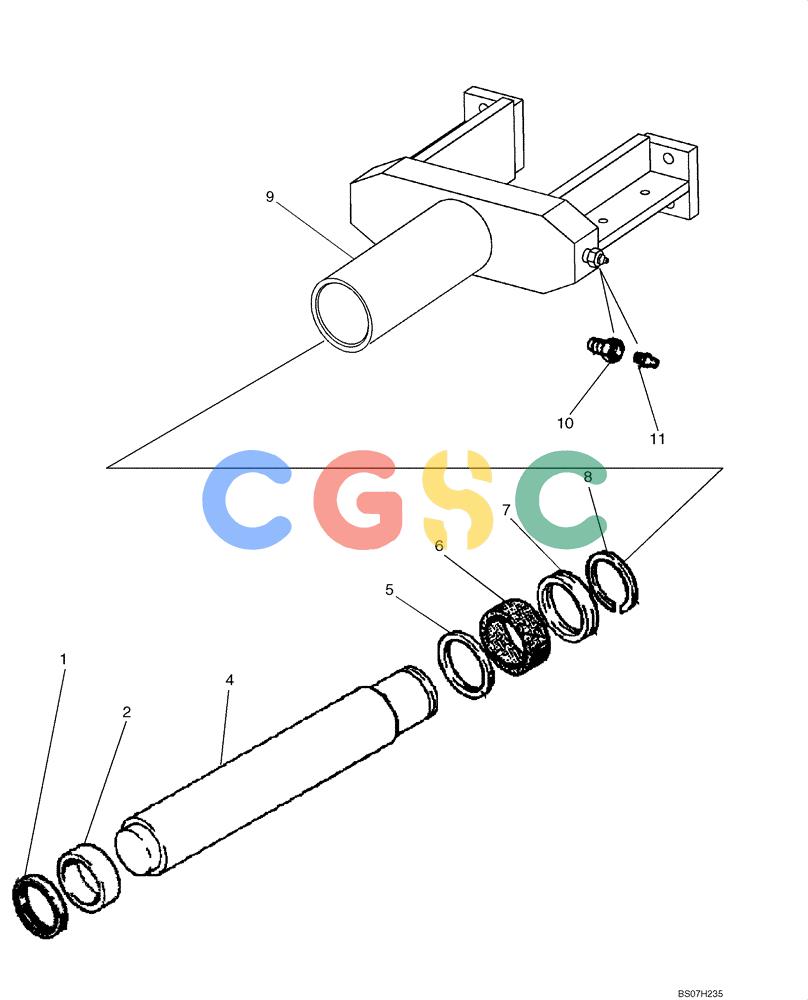

| . . | 87652975 | [1] | YOKE | BURTensioner, Right-Hand and Left-HandIncl. Ref 1 - 11; Shown |
| 1. | D95149 | [1] | PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk | CAS |
| 2. | D30374 | [1] | RING,60.43mm ID x 73.15mm OD x 25.4mm L | CAS |
| 4. | 345091A1 | [1] | PISTON | CAS |
| 5. | R30202 | [1] | RING,54.101mm ID x 65.1mm OD x 5.08mm Thk | CAS |
| 6. | R25663 | [1] | BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L | CAS |
| 7. | R25706 | [1] | SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk | CAS |
| 8. | A32413 | [1] | SNAP RING,#212, 1.997", Ext | CASRING, SNAP Superseded by part number: 101-11212 |
| 9. | NSS | [1] | NOT SERVICED SEPARATELY | CONCLEVIS, YOKE |
| 10. | D35287 | [1] | CHECK VALVE,5/8" - 18 | CASBall Check |
| 11. | 219-1 | [1] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| . . | R57781 | [1] | KIT | CASKIT, Track Adjuster Repair, Incl. Ref 1, 2, 5 - 8 Superseded by part number: R30202, 101-11212, R25663, R25706, D30374, D95149 |
