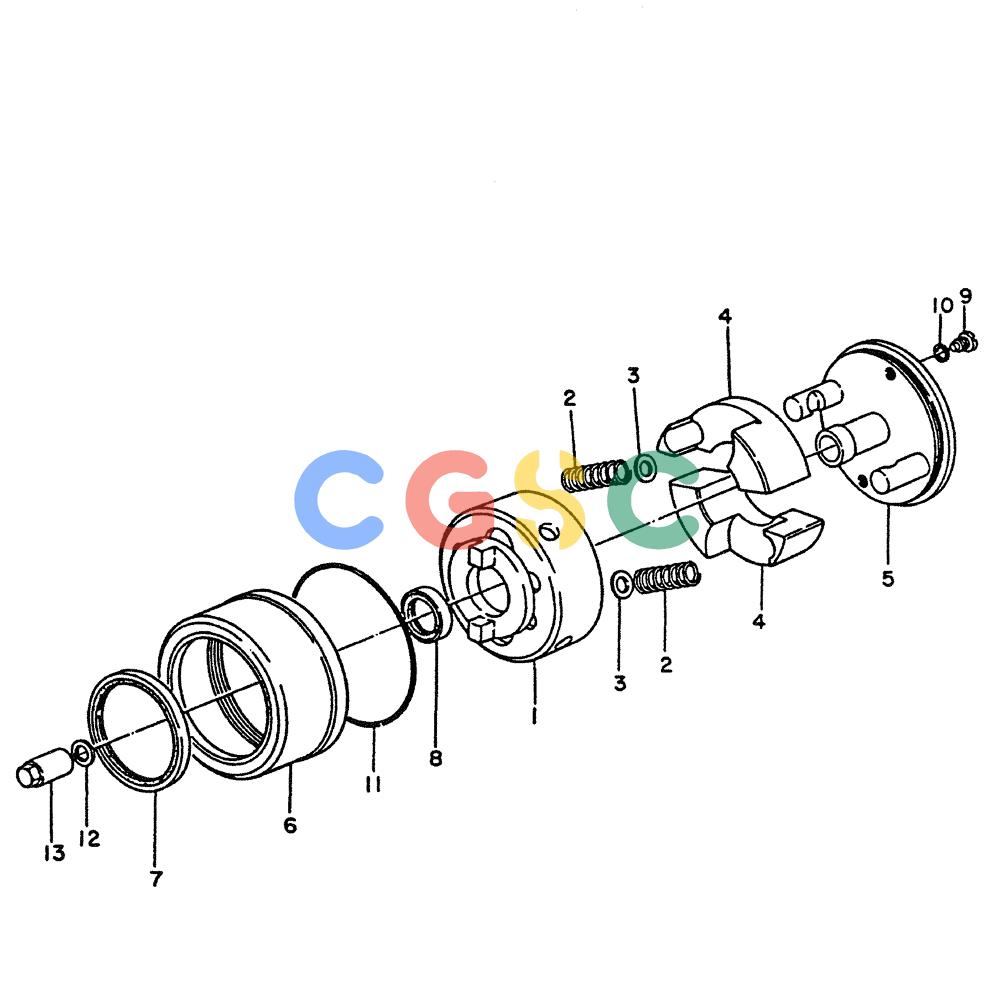

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (05-008) - TIMER-AUTOMATIC, (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
355 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-13. | VG1685196500 | [1] | TIMER | KOBAUTOMATIC (FOR A1) |
| 1-13. | VG1685196505 | [1] | TIMER | KOBTIMER (FOR A2) |
| 1. | VG1686699017 | [1] | FLANGE (FOR A2) | |
| 2. | VG1686799002 | [2] | SPRING | KOBTIMER (FOR A1) |
| 2. | VG1686799106 | [2] | SPRING | KOBTIMER (FOR A2) |
| 3. | VG1687090002 | [1] | SHIM, T=0.5 | |
| 3. | VG1687090003 | [1] | SHIM | KOBT=1.0 |
| 3. | VG1687090004 | [1] | SHIM, T=0.1 | |
| 3. | VG1687090005 | [1] | SHIM, T=0.2 | |
| 3. | VG1687090006 | [1] | SHIM, T=1.5 | |
| 4. | VG1686496000 | [2] | FLYWEIGHT (FOR A1) | |
| 4. | VG1686499009 | [2] | FLYWEIGHT (FOR A2) | |
| 5. | VG1686199012 | [1] | HOLDER (FOR A2) | |
| 6. | VG1687399000 | [1] | CASE | KOB |
| 7. | VG1687299000 | [1] | OIL SEAL | KOB(L) |
| 8. | VG1686590000 | [1] | OIL SEAL | KOBOIL |
| 9. | VG1686390001 | [2] | PLUG | |
| 10. | VG1686290001 | [2] | GASKET | GASKET |
| 11. | VG1687190000 | [1] | O-RING N/A SUB'D | O-RING N/A SUB'D |
| 12. | VG1687490000 | [1] | SPRING WASHER | |
| 13. | VG1687590000 | [1] | NUT | |
