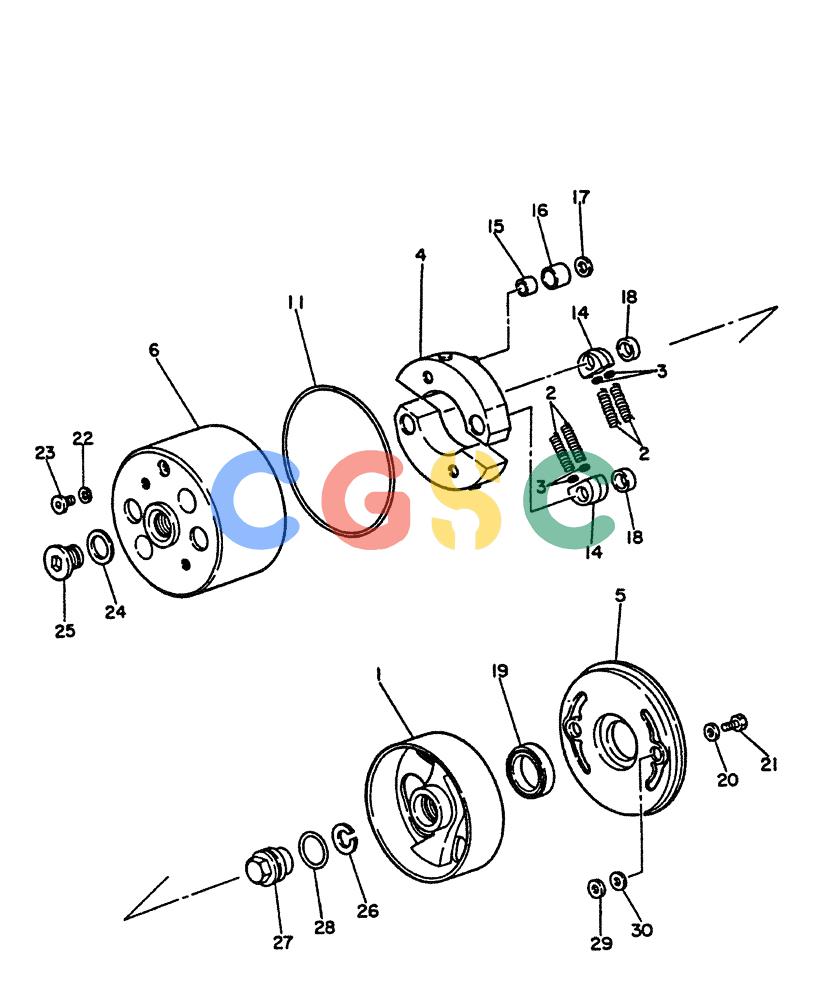

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (05-009) - TIMER-AUTOMATIC, (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
983 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-30. | VG1685196511 | [1] | TIMER-AUTOMATIC | |
| 1. | VG1686699019 | [1] | FLANGE | |
| 2. | VG1686799207 | [4] | SPRING-TIMER | |
| 3. | VG1687099007 | [1] | SHIM, T=0.2 | |
| 3. | VG1687099008 | [1] | SHIM T=0.4 | |
| 3. | VG1687099009 | [1] | SHIM T=0.5 | |
| 3. | VG1687099010 | [1] | SHIM T=0.6 | |
| 3. | VG1687099011 | [1] | SHIM T=0.7 | |
| 3. | VG1687099013 | [1] | SHIM T=1.0 | |
| 3. | VG1932799007 | [1] | SHIM T=0.3 | |
| 3. | VG1932799015 | [1] | SHIM T=0.8 | |
| 3. | VG1932799016 | [1] | SHIM,T=0.9 | |
| 3. | VG1932799017 | [1] | SHIM T=0.1 | |
| 4. | VG1686499012 | [2] | FLYWEIGHT | |
| 5. | VG1685399002 | [1] | COVER | |
| 6. | VG1686199014 | [1] | HOUSING | |
| 11. | VG1687199002 | [1] | O RING | |
| 14. | VG1683199000 | [4] | SPRING SEAT | |
| 15. | VG1682999000 | [2] | BUSH | |
| 16. | VG1683099000 | [1] | ROLLER, D=23.9 | |
| 16. | VG1683099001 | [1] | ROLLER, D=24 | |
| 16. | VG1683099002 | [1] | ROLLER, D=24.1 | |
| 16. | VG1683099003 | [1] | ROLLER, D=24.2 | |
| 16. | VG1683099004 | [1] | ROLLER, D=23.4 | |
| 17. | VG1683299006 | [2] | WASHER | |
| 18. | VG1686599001 | [2] | RETAINER | |
| 19. | VG1687299006 | [1] | OIL SEAL | OIL SEAL |
| 20. | VG1686299003 | [2] | GASKET | |
| 21. | VG1682799011 | [2] | BOLT | |
| 22. | VG1686299001 | [1] | GASKET | |
| 23. | VG1686399001 | [1] | PLUG | |
| 24. | VG1686299004 | [1] | GASKET | |
| 25. | VG1686099001 | [1] | CAP | |
| 26. | VG1687499001 | [1] | WASHER-SPRING | |
| 27. | VG1687399004 | [1] | NUT | |
| 28. | VG1687199003 | [1] | O-RING | KOB |
| 29. | VG1934290002 | [2] | SHIM | |
| 30. | VG1934290003 | [2] | SHIM | |
