神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (05-011) - COUPLING, (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
827 次

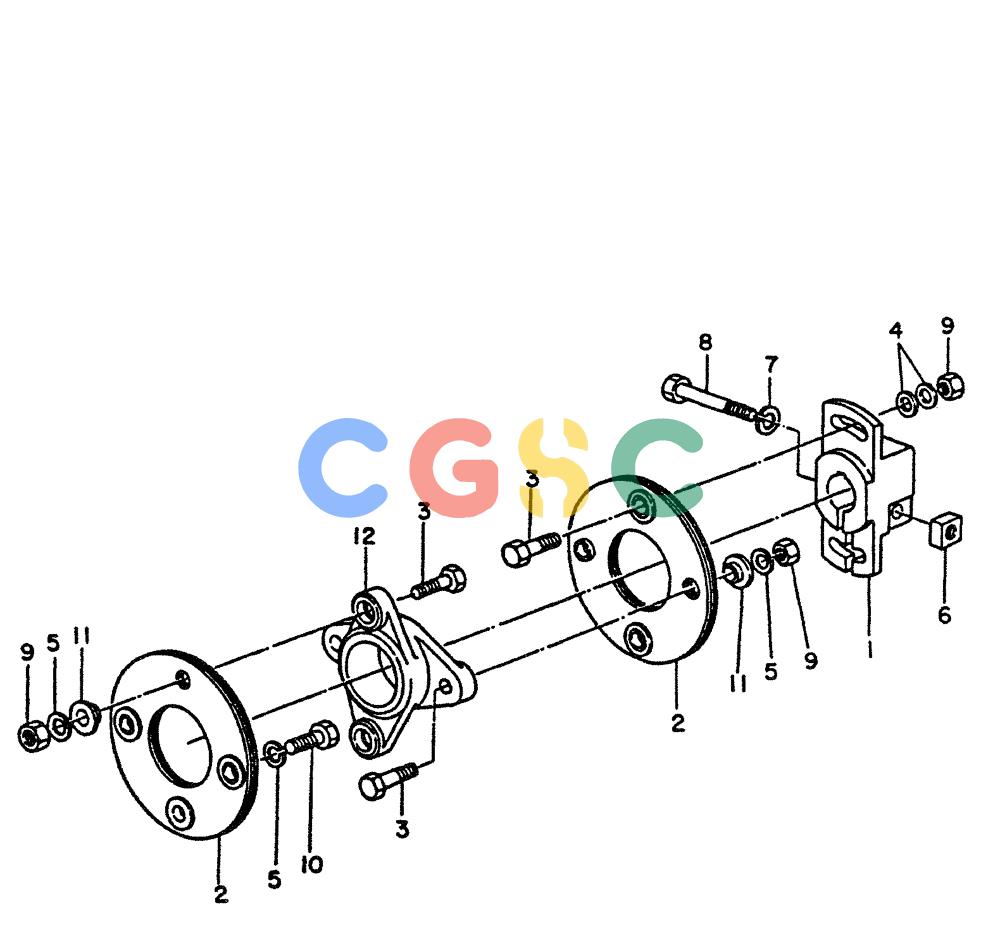

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-12. | VG1682096001 | [1] | COUPLING | KOB |
| 1. | VG1682199005 | [1] | COUPLING | |
| 2. | VG1683390000 | [2] | PLATE | KOBASSY |
| 3. | VG1682799800 | [6] | BOLT | BOLT |
| 4. | VG1682496000 | [4] | WASHER | |
| 5. | VG1682590005 | [6] | WASHER-SPRING | |
| 6. | VG1682990002 | [1] | NUT | |
| 7. | VG0891514010 | [1] | WASHER SPRING | WASHER SPRING |
| 8. | VG1682799010 | [1] | BOLT | |
| 9. | VG1682990000 | [6] | NUT | KOB |
| 10. | VG1682790003 | [2] | BOLT | |
| 11. | VG1685590000 | [4] | GENERATOR BUSH | GENERATOR BUSH |
| 12. | VG1682690003 | [1] | COUPLING-CROSS | |
