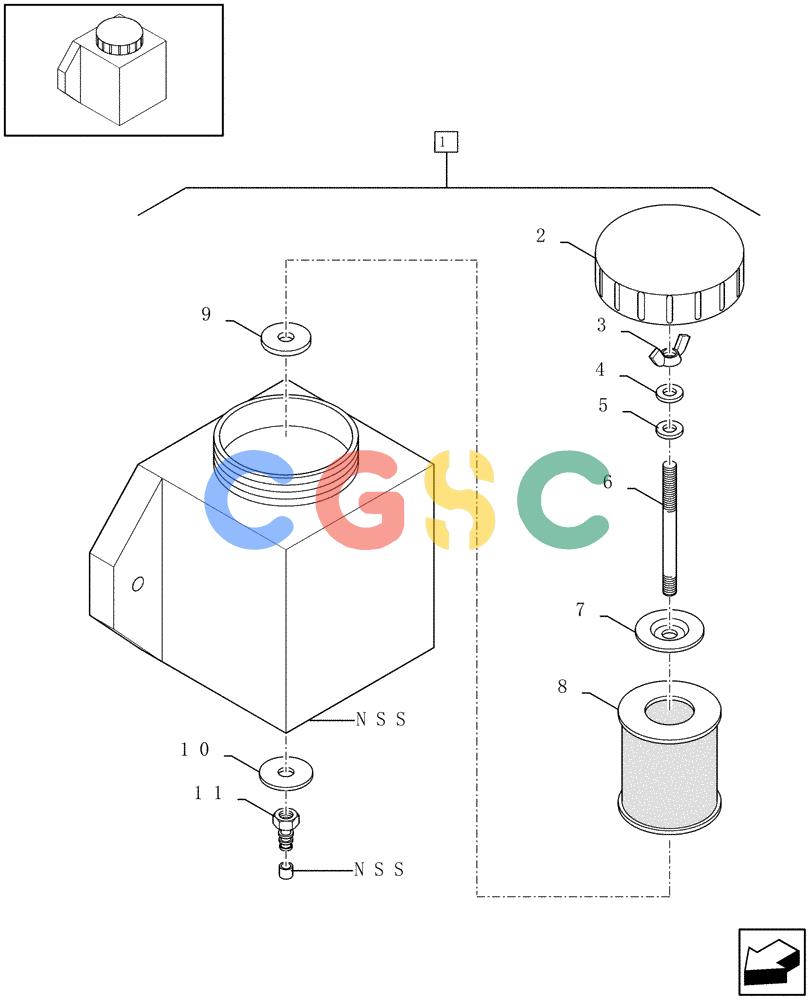

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (09.02[01]) - OIL RESERVOIR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
537 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84025120
|
[1] |
RESERVOIR, HYDRAULIC
|
PLO
, Serial Range: (2-11)
|
| 2. |
84018927
|
[1] |
COVER
|
PLO
|
| 3. |
80080840
|
[1] |
WING NUT
|
PLO
Superseded by part number: 80840
|
| 4. |
80702
|
[1] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 5. |
84023064
|
[1] |
WASHER
|
PLO
|
| 6. |
84012835
|
[1] |
TUBE
|
PLO
|
| 7. |
84019114
|
[1] |
WASHER
|
PLO
|
| 8. |
84018926
|
[1] |
HYDRAULIC OIL FILTER
|
ZED
|
| 9. |
84019017
|
[1] |
WASHER
|
PLO
|
| 10. |
80140198
|
[1] |
WASHER
|
ZED
Superseded by part number: 140198
|
| 11. |
84019214
|
[1] |
NUT
|
PLO
|
