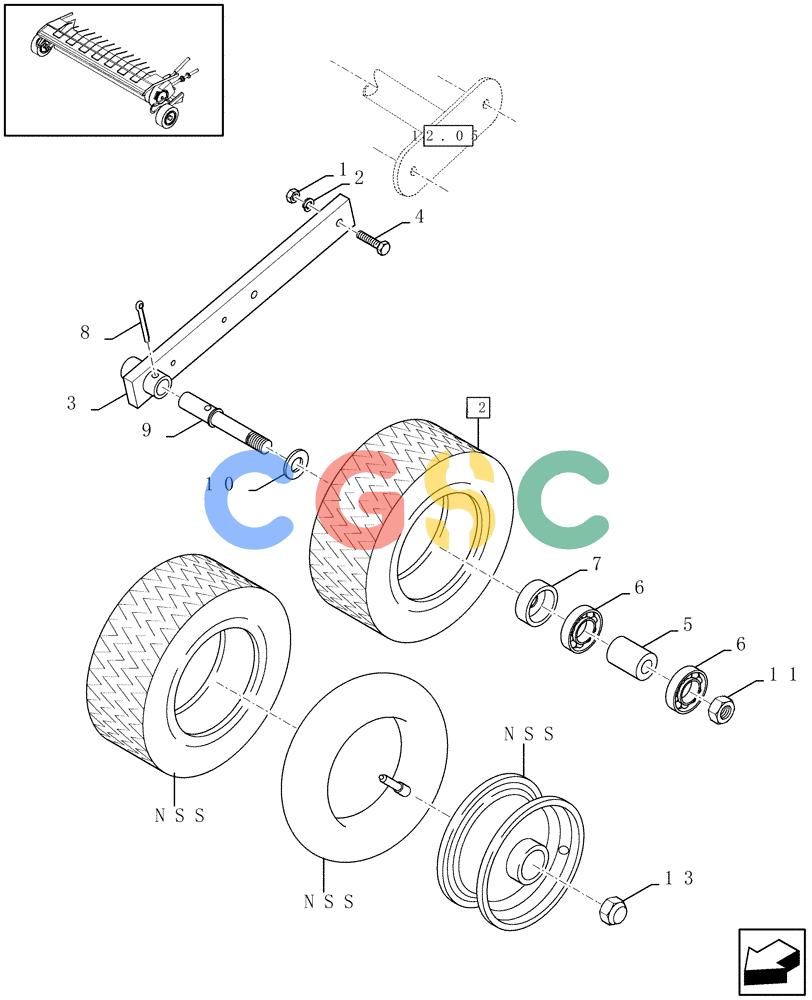

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (13.06[01]) - PICK-UP WHEELS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
748 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
337475
|
[4] |
NUT,M12, Cl 10
|
BHB
|
| 2. |
80140046
|
[4] |
WASHER
|
ZED
12MM Superseded by part number: 140046
|
| 3. |
84822022
|
[2] |
ARM
|
PLO
|
| 4. |
80334966
|
[4] |
BOLT
|
ZED
M12x45 Superseded by part number: 334966
|
| 5. |
84036653
|
[2] |
SPACER
|
ZED
|
| 6. |
544487
|
[4] |
BALL BEARING,25mm ID x 52mm OD x 15mm W
|
GI
|
| 7. |
84036652
|
[2] |
FLANGE COVER CAP
|
ZED
|
| 8. |
89838996
|
[2] |
COTTER PIN
|
ZED
Superseded by part number: 9838996
|
| 9. |
89839000
|
[2] |
SHAFT
|
PLO
Superseded by part number: 9839000
|
| 10. |
80378248
|
[2] |
WASHER
|
ZED
25MM Superseded by part number: 378248
|
| 11. |
89837788
|
[2] |
NUT
|
ZED
M24 Superseded by part number: 9837788
|
| 12. |
84822021
|
[2] |
WHEEL
|
PLO
, Serial Range: (13-16) Superseded by part number: 84607730, 84074953
|
| 13. |
84036651
|
[2] |
CAP
|
ZED
|
