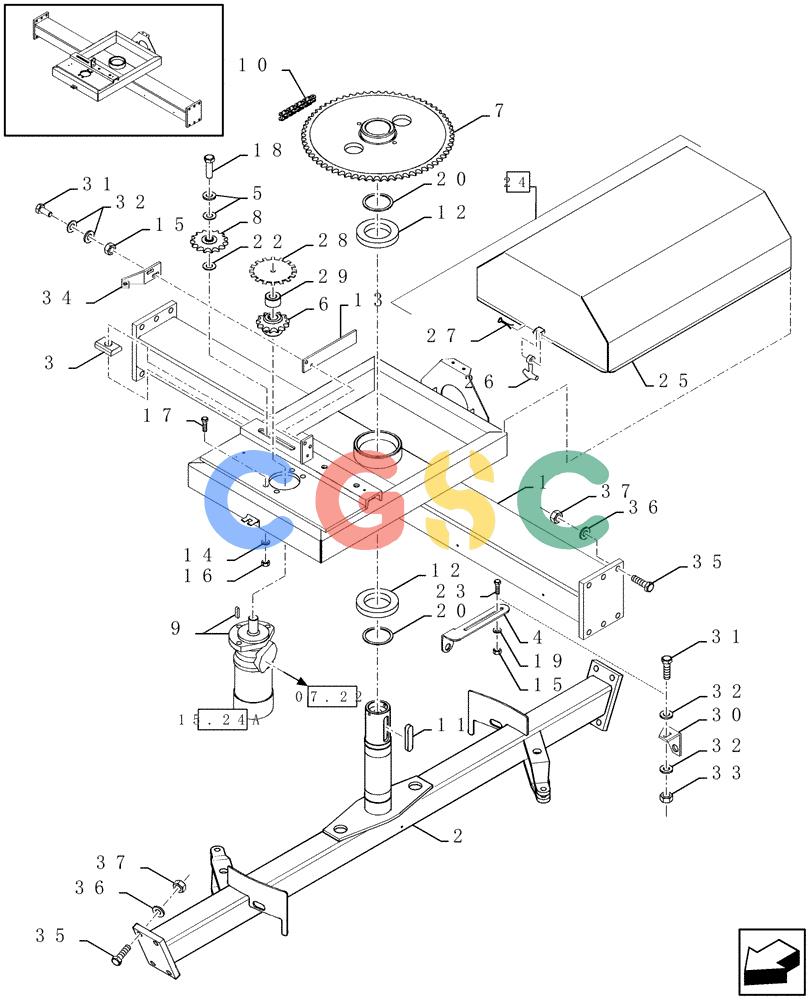

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (15.24[01]) - SATELLITE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
550 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84821070
|
[1] |
BEAM
|
PLO
|
| 2. |
84821074
|
[1] |
HANGER
|
PLO
|
| 3. |
84820707
|
[1] |
NUT
|
PLO
|
| 4. |
84821046
|
[1] |
SUPPORT
|
PLO
, Serial Range: -C639
|
| 5. |
84821078
|
[2] |
WASHER
|
PLO
16MM
|
| 6. |
84821087
|
[1] |
DRIVEN SPROCKET
|
PLO
|
| 7. |
84821091
|
[1] |
DRIVEN SPROCKET
|
PLO
|
| 8. |
84821094
|
[1] |
DRIVEN SPROCKET
|
PLO
|
| 10. |
84821096
|
[1] |
CHAIN,80, 80 Links x 19.05mm = 1524mm
|
PLO
|
| 11. |
84821099
|
[1] |
KEY
|
PLO
|
| 12. |
84821103
|
[2] |
BALL BEARING
|
PLO
Superseded by part number: 84455696
|
| 13. |
84821104
|
[1] |
PLATE
|
PLO
|
| 14. |
86511326
|
[4] |
WASHER,17mm ID x 30mm OD x 3mm Thk
|
NH
13MM Superseded by part number: 80299
|
| 16. |
89706685
|
[4] |
NUT
|
ZED
M12 Superseded by part number: 9706685
|
| 17. |
89628065
|
[4] |
SCREW
|
ZED
M12x45 Superseded by part number: 9628065
|
| 18. |
80385923
|
[1] |
SCREW
|
ZED
M16x55 Superseded by part number: 385923
|
| 19. |
80322358
|
[1] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 20. |
80300636
|
[2] |
CIRCLIP
|
ZED
Superseded by part number: 300636
|
| 21. |
80300477
|
[1] |
SCREW
|
ZED
M8x16 Superseded by part number: 300477
|
| 22. |
80394631
|
[1] |
WASHER
|
ZED
16MM Superseded by part number: 394631
|
| 23. |
120104
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 24. |
-
|
[1] |
, Serial Range: (25-27)
|
|
| 25. |
84821049
|
[1] |
SHIELD
|
PLO
|
| 26. |
211495
|
[2] |
HANDLE
|
NH
|
| 27. |
80300416
|
[2] |
COTTER PIN
|
ZED
Superseded by part number: 86523957
|
| 28. |
84821201
|
[1] |
DISC
|
PLO
, Start Serial: D640 Superseded by part number: 84821108
|
| 29. |
84822449
|
[1] |
BUSHING
|
PLO
, Start Serial: D640
|
| 30. |
84821210
|
[1] |
BRACKET
|
PLO
, Start Serial: D640
|
| 31. |
43128
|
[1] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 33. |
832-46408
|
[1] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 34. |
84821221
|
[1] |
BRACKET
|
PLO
, Start Serial: D640
|
| 35. |
80280264
|
[20] |
SCREW
|
ZED
M14x50 Superseded by part number: 280264
|
| 36. |
140030
|
[20] |
LOCK WASHER,M14
|
ZED
Superseded by part number: 80140047
|
| 37. |
86508817
|
[20] |
NUT,M14, Cl 8
|
ZED
M14
|
| 15. |
89706690
|
[1] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
