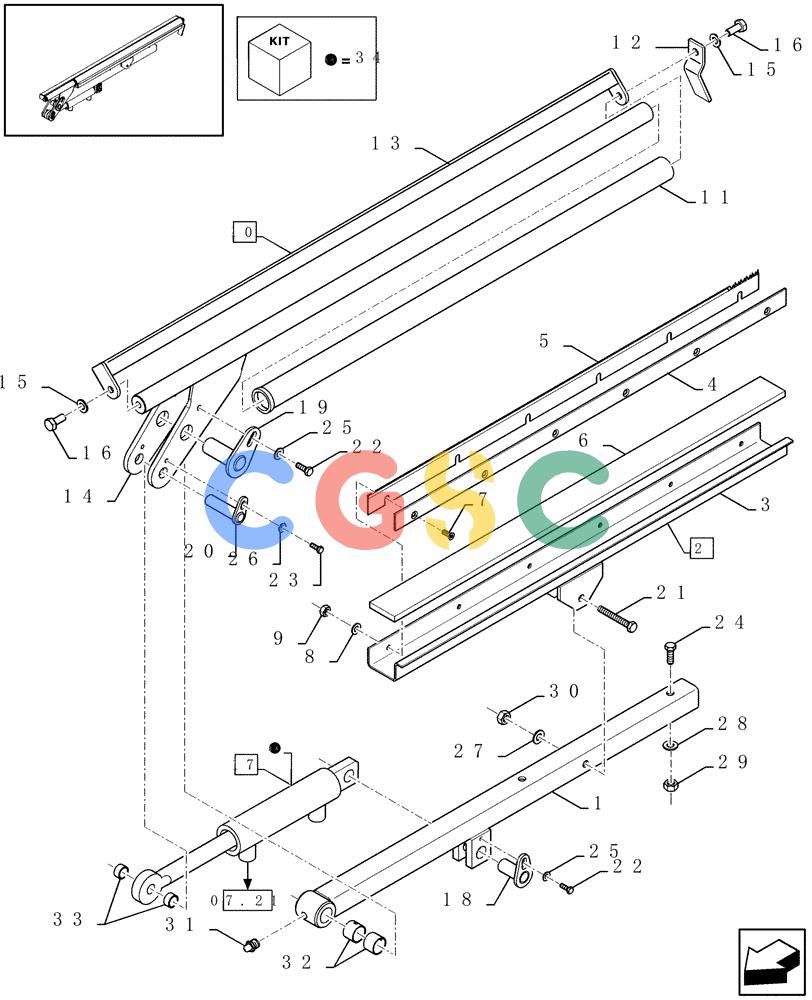

| 1. |
84821009
|
[1] |
SUPPORT
|
PLO
|
| 2. |
-
|
[1] |
, Serial Range: (3-9)
|
|
| 3. |
84821004
|
[1] |
SUPPORT
|
PLO
|
| 4. |
84820868
|
[1] |
FIXING PLATE
|
PLO
|
| 5. |
84820870
|
[1] |
KNIFE
|
PLO
|
| 6. |
84820871
|
[1] |
SEAL PROTECTION
|
PLO
|
| 7. |
300580
|
[6] |
SCREW,Phillips Drive, Flat HD, M6 x 16mm, Cl 4.8
|
WIN
M6x16
|
| 8. |
80322357
|
[6] |
LOCK WASHER,Belleville, M6
|
ZED
6MM Superseded by part number: 322357
|
| 9. |
15896221
|
[6] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 11. |
84820864
|
[1] |
TUBE,37 mm OD x 850 mm L
|
PLO
, Serial Range: -C667 Superseded by part number: 84801289, 84801287
|
| 11. |
84801287
|
[1] |
TUBE,31 mm ID x 40 mm OD x 750 mm L
|
PLO
, Start Serial: D668
|
| 12. |
84820865
|
[1] |
PLATE
|
PLO
, Serial Range: -C667
|
| 12. |
84801289
|
[1] |
TUBE,31 mm ID x 40 mm OD x 99 mm L
|
PLO
, Start Serial: D668
|
| 13. |
84820872
|
[1] |
ANGLE
|
PLO
|
| 14. |
84820884
|
[1] |
SHAFT
|
PLO
|
| 15. |
80140017
|
[2] |
WASHER
|
ZED
10MM Superseded by part number: 14496621
|
| 16. |
80043139
|
[2] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 17. |
84818030
|
[1] |
HYDRAULIC CYLINDER
|
PLO
(34)
|
| 18. |
84821151
|
[1] |
PIN
|
PLO
|
| 19. |
84820875
|
[1] |
PIN
|
PLO
|
| 20. |
84821154
|
[1] |
PIN
|
PLO
|
| 21. |
80043144
|
[1] |
SCREW
|
ZED
M10x70 Superseded by part number: 87015537
|
| 22. |
80120103
|
[2] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
ZED
M8x16 Superseded by part number: 16043224
|
| 23. |
86977726
|
[1] |
BOLT,Hex, M6 x 12mm, Cl 8.8
|
ZED
|
| 24. |
80120071
|
[2] |
SCREW,M10 x 65mm
|
ZED
M10x65 Superseded by part number: 120071
|
| 25. |
80322358
|
[2] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 28. |
80140045
|
[2] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 29. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 30. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
M10 Superseded by part number: 100037
|
| 31. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 32. |
84820564
|
[2] |
BRONZE BUSHING
|
PLO
|
| 33. |
84820509
|
[2] |
BUSHING
|
PLO
, Start Serial: D640
|
| 34. |
84819500
|
[1] |
SEAL KIT
|
PLO
Superseded by part number: 87629320
|
