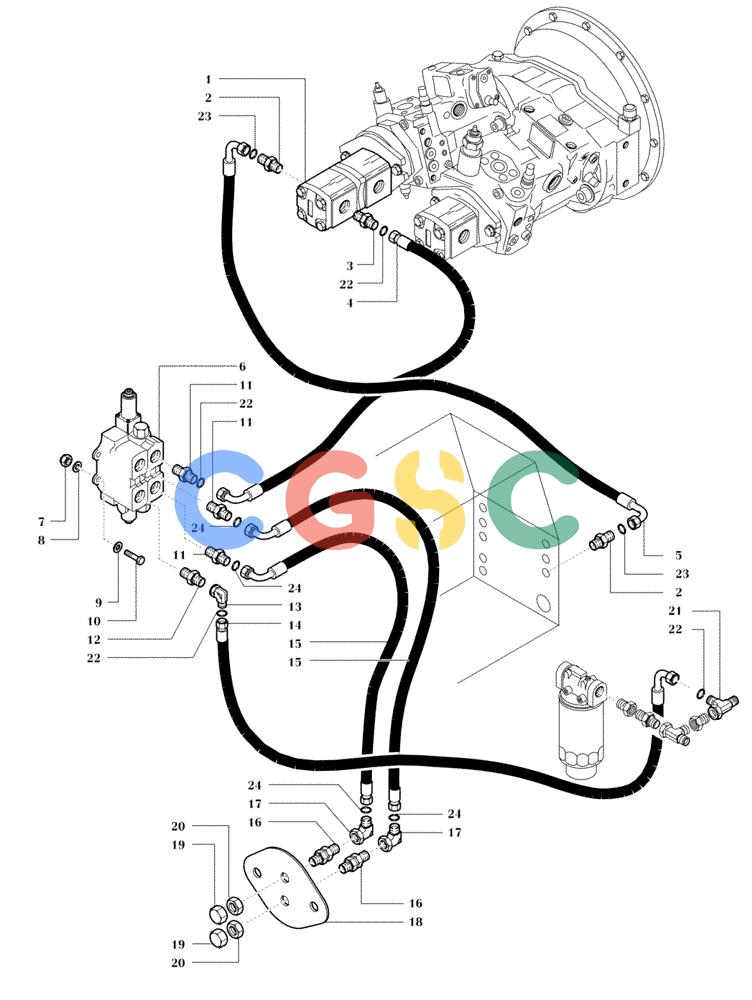

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (9.555[01B]) - REAR HYDRAULIC FUNCTION DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
998 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76596024 | [1] | HYDRAULIC PUMP | MAC |
| 2. | 76591006 | [2] | HYD CONNECTOR | MAC |
| 3. | 76591151 | [1] | HYD CONNECTOR | MAC |
| 4. | 76596025 | [1] | FLEXIBLE HOSE | MAC |
| 5. | 76591152 | [1] | HOSE | MAC |
| 6. | 76596026 | [1] | CONTROL VALVE | MAC |
| 7. | 76590848 | [3] | NUT | MAC- SELF-LOCKING Superseded by part number: 15503611 |
| 8. | 76590847 | [3] | WASHER | MAC Superseded by part number: 10519624 |
| 9. | 76590895 | [3] | WASHER | MAC Superseded by part number: 86639313 |
| 10. | 76596027 | [3] | SCREW | MAC Superseded by part number: 14306424 |
| 11. | 76590990 | [3] | HYD CONNECTOR | MAC |
| 12. | 76591005 | [1] | HYD CONNECTOR | MAC |
| 13. | 76595949 | [1] | HYD CONNECTOR | MAC |
| 14. | 76596028 | [1] | FLEXIBLE HOSE | MAC |
| 15. | 76596029 | [2] | FLEXIBLE HOSE | MAC |
| 16. | 76596030 | [2] | HYD CONNECTOR | MAC |
| 17. | 76591041 | [2] | HYD CONNECTOR | MAC |
| 18. | 76596031 | [1] | COVER | MAC |
| 19. | 76596032 | [2] | PLUG | MAC |
| 20. | 76596033 | [2] | NUT | MAC |
| 21. | 76591164 | [1] | HYD CONNECTOR | MAC |
| 22. | 76596050 | [4] | SEAL | MACO-RING |
| 23. | 76596049 | [2] | SEAL | MACO-RING |
| 24. | 76596046 | [4] | SEAL | MACO-RING |
