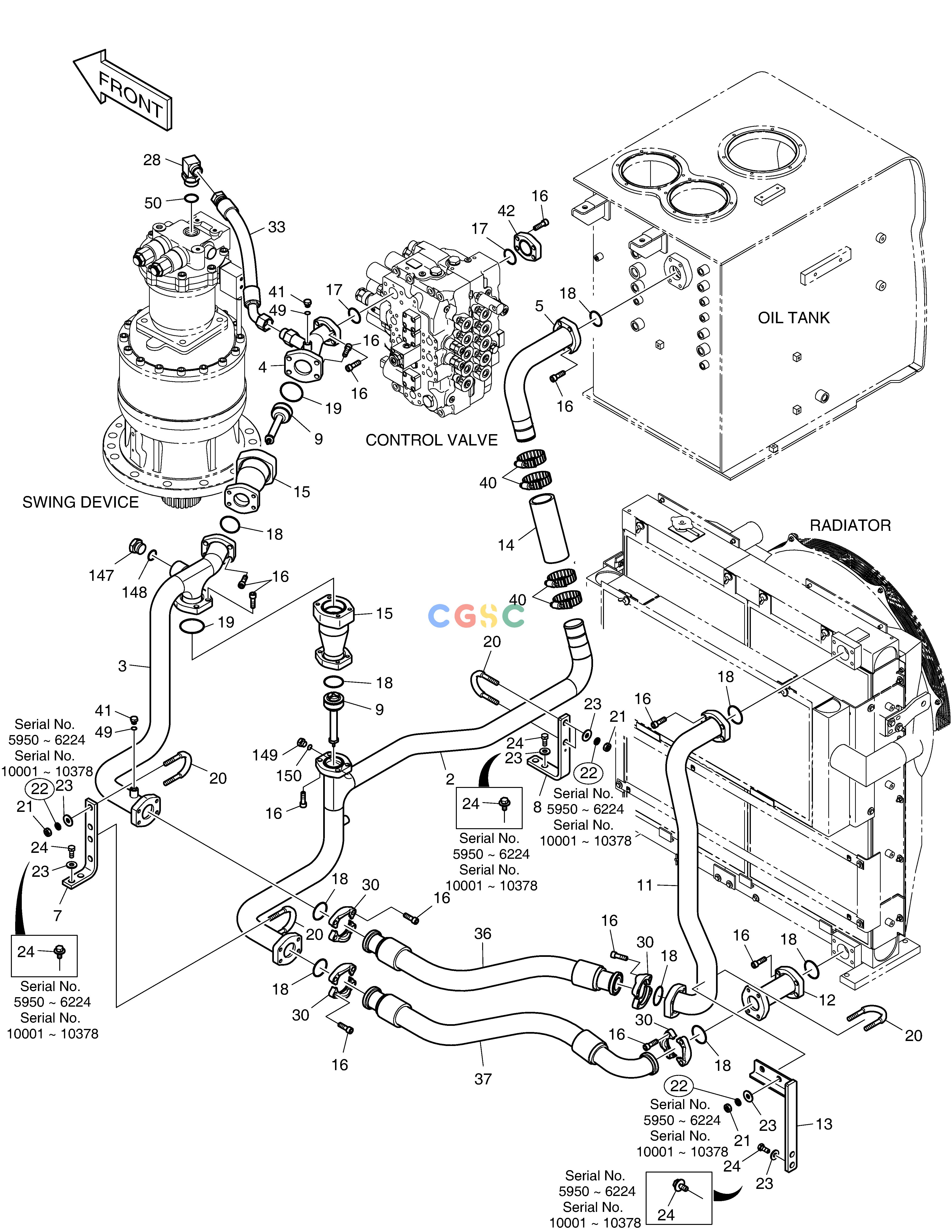

斗山零件查询OIL COOLER PIPING(2) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
132 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04795
|
[-] |
|
|
| 11. |
K1007449A
|
[1] |
PIPE
|
|
| 12. |
420207-01217
|
[1] |
|
|
| 13. |
K1004811A
|
[1] |
BRACKET
|
|
| 14. |
2185-1776D1
|
[1] |
HOSE
|
|
| 147. |
2181-1950D9
|
[1] |
PLUG
|
|
| 148. |
S8000291
|
[1] |
O-RING
|
|
| 149. |
2181-1950D2
|
[1] |
PLUG
|
|
| 15. |
K1000644C
|
[2] |
PIPE
|
|
| 150. |
S8000141
|
[1] |
O-RING
|
|
| 16. |
S2215466
|
[52] |
BOLT
|
|
| 17. |
DS2856005
|
[2] |
O-RING
|
|
| 17. |
2180-1026D24
|
[2] |
O-RING
|
DS2856005
|
| 18. |
DS2856006
|
[9] |
O-RING
|
|
| 18. |
2180-1026D27
|
[9] |
O-RING
|
DS2856006
|
| 19. |
2180-1026D31
|
[2] |
O-RING
|
|
| 2. |
K1003022B
|
[1] |
PIPE
|
|
| 20. |
120-00258A
|
[4] |
BOLT;U
|
|
| 21. |
S4012733
|
[8] |
NUT
|
|
| 22. |
S5102703
|
[8] |
WASHER
|
|
| 23. |
120804-00079
|
[14] |
WASHER
|
|
| 23. |
2114-1058D30
|
[8] |
. WASHER
|
|
| 24. |
S0515266
|
[6] |
BOLT
|
|
| 24. |
DS0025018
|
[6] |
BOLT
|
|
| 28. |
DS2281100
|
[1] |
ELBOW
|
|
| 3. |
K1003021A
|
[1] |
PIPE
|
|
| 30. |
4215-1003D6
|
[8] |
FLANGE;SPLIT
|
|
| 33. |
DS2054318
|
[1] |
HOSE
|
|
| 36. |
DS2038158
|
[1] |
HOSE
|
|
| 37. |
DS2040396
|
[1] |
HOSE
|
|
| 4. |
K1003020B
|
[1] |
PIPE
|
|
| 40. |
S8500092
|
[4] |
CLAMP;HOSE
|
|
| 41. |
2181-1950D1
|
[2] |
PLUG
|
|
| 42. |
2181-2157D6
|
[1] |
FLANGE;COVER
|
|
| 49. |
S8000111
|
[2] |
O-RING
|
|
| 5. |
K1003026A
|
[1] |
PIPE
|
|
| 50. |
S8000381
|
[1] |
O-RING
|
|
| 7. |
195-02735B
|
[1] |
PLATE
|
|
| 8. |
K1004989A
|
[1] |
PLATE
|
|
| 9. |
410128-00053
|
[2] |
|
|
