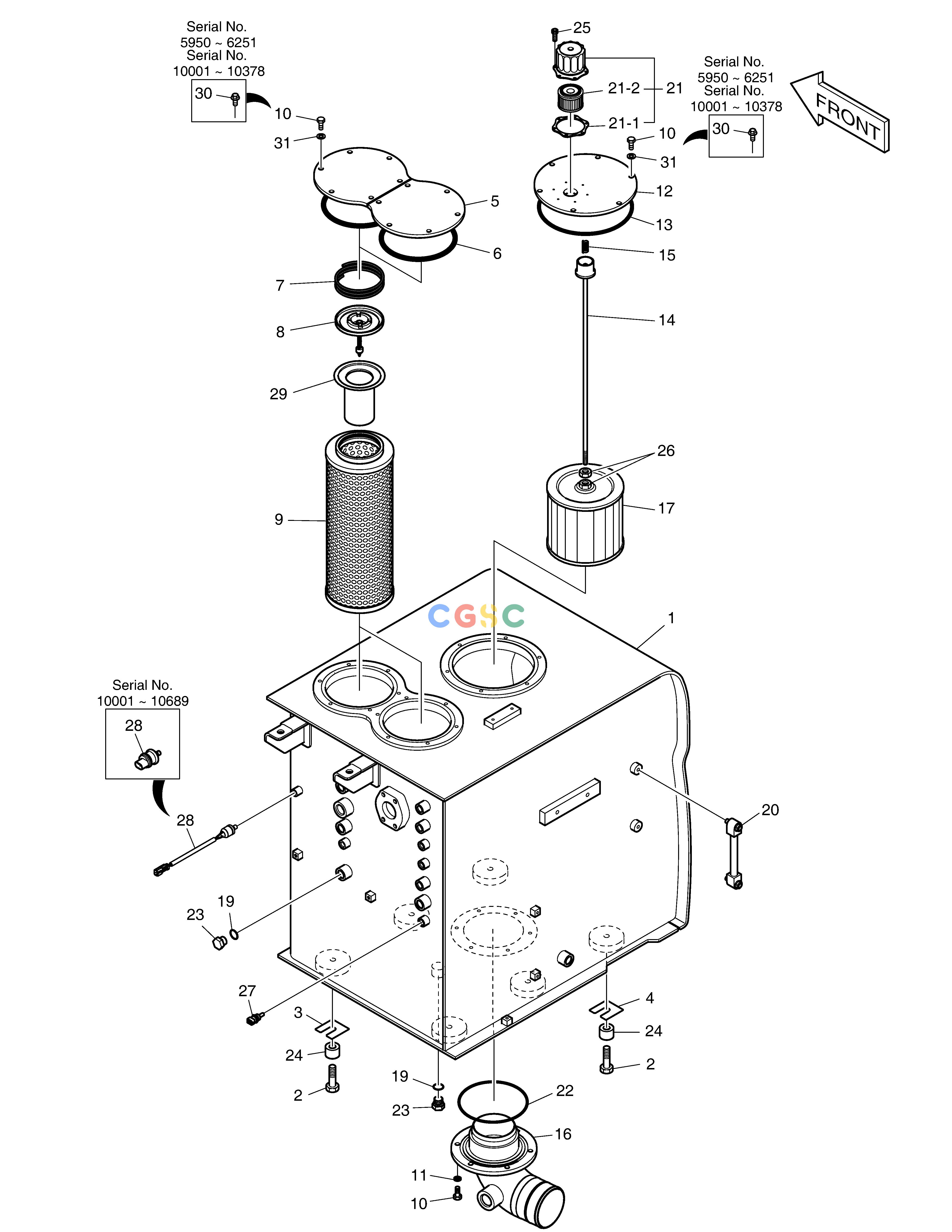

斗山零件查询OIL TANK DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
122 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
450105-00260
|
[-] |
|
|
| 1. |
450105-00259B
|
[1] |
|
|
| 1. |
450105-00259C
|
[1] |
|
450105-00259E
|
| 1. |
450105-00259E
|
[1] |
|
|
| 10. |
S0512066
|
[6] |
. BOLT
|
|
| 10. |
S0512066
|
[24] |
. BOLT
|
|
| 11. |
S5102603
|
[6] |
. WASHER
|
|
| 12. |
110508-03848
|
[1] |
|
|
| 13. |
S8012200
|
[1] |
O-RING
|
|
| 14. |
2136-1433
|
[1] |
ROD
|
|
| 15. |
2129-1008
|
[1] |
SPRING,COMPRESS
|
|
| 16. |
K1009434
|
[1] |
PIPE
|
|
| 16. |
420218-00504
|
[1] |
|
|
| 17. |
2471-9401A
|
[1] |
FILTER;SUCTION
|
|
| 19. |
S8000181
|
[2] |
O-RING
|
|
| 2. |
S0565466
|
[6] |
BOLT
|
|
| 20. |
119-00025B
|
[1] |
GAUGE,LEVEL
|
|
| 21. |
400811-00087
|
[1] |
BREATHER,AIR
|
|
| 21-1. |
K9005662
|
[1] |
. GASKET
|
|
| 21-2. |
400504-00254
|
[1] |
. ELEMENT,AIR BREATHER
|
|
| 22. |
S8011651
|
[1] |
O-RING
|
|
| 23. |
2181-1950D7
|
[2] |
. PLUG
|
|
| 24. |
114-00425
|
[6] |
SPACER
|
|
| 25. |
2120-2166D41
|
[6] |
BOLT
|
|
| 26. |
S4012633
|
[2] |
NUT
|
|
| 27. |
K1003296
|
[1] |
SENSOR,HYD OIL TEMP
|
|
| 28. |
549-00095
|
[1] |
SWITCH;PRESSURE
|
|
| 28. |
301413-00339
|
[1] |
SWITCH,OIL PRESSURE
|
|
| 29. |
400411-00001A
|
[2] |
STRAINER,BY-PASS
|
|
| 3. |
114-00522
|
[3] |
SHIM
|
|
| 30. |
K1007957
|
[18] |
. BOLT;SET
|
|
| 31. |
120804-00076
|
[18] |
WASHER
|
|
| 4. |
114-00523
|
[3] |
SHIM
|
|
| 5. |
K1003992B
|
[2] |
COVER
|
|
| 6. |
S8011850
|
[2] |
O-RING
|
|
| 7. |
2129-1393
|
[2] |
SPRING
|
|
| 8. |
2426-1175
|
[2] |
VALVE;BY-PASS
|
|
| 9. |
474-00055
|
[2] |
FILTER;RETURN
|
400504-00277
|
| 9. |
400504-00277
|
[2] |
|
|
