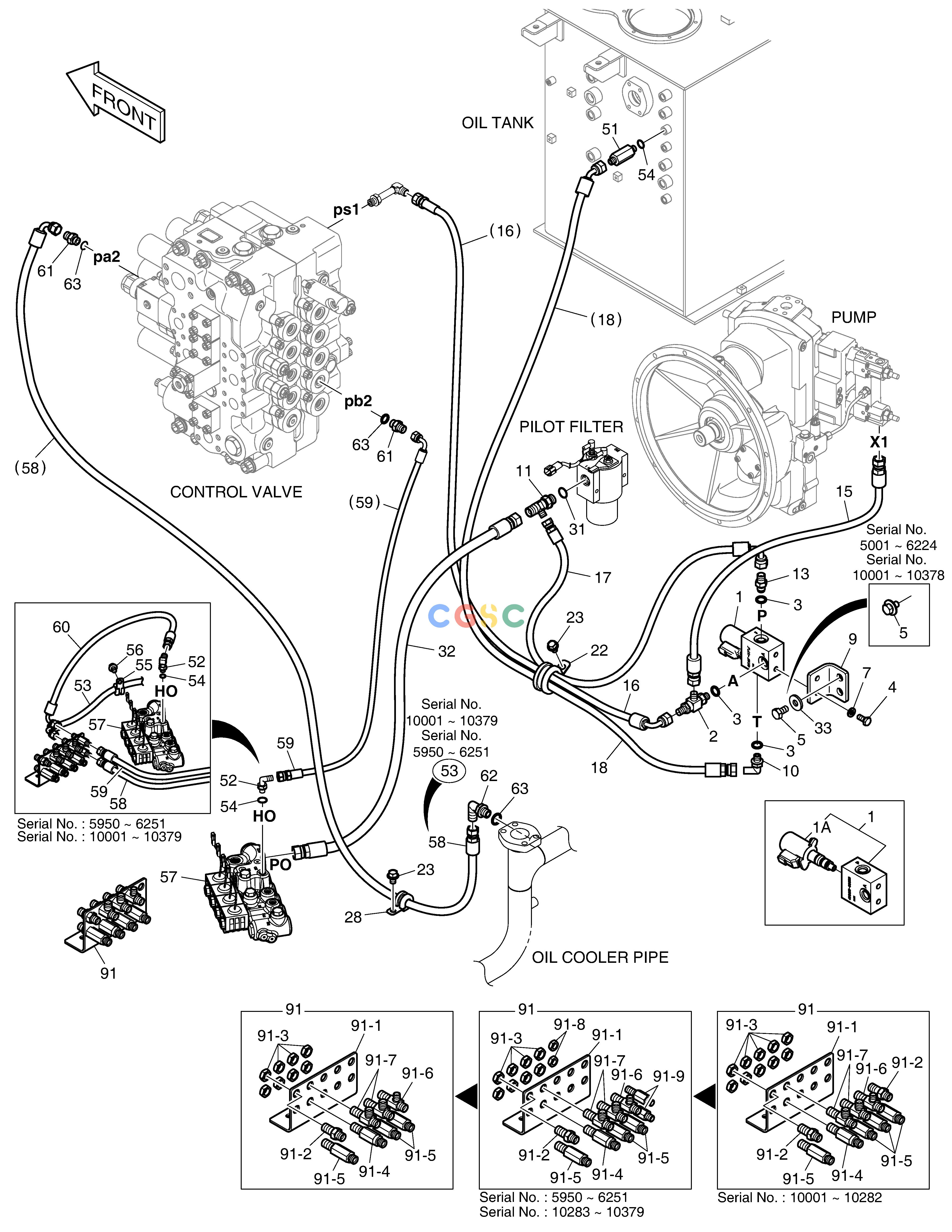

斗山零件查询PILOT PIPING - ONE & TWO WAY DX360LCA(S/N:5950~) Doosan parts catalog online

广数供应链运营团队, 14 02月, 2025，浏览： 772 次

Pos.	Part No	Qty	Parts name
-.	420212-04792	[-]
1.	410116-00526	[1]
10.	2181-1702D4	[1]	ELBOW
11.	2181-1951D19	[1]	TEE
13.	2471-1133	[1]	FILTER;ADAPTER
15.	DS2094006	[1]	HOSE
16.	DS2093122	[1]	HOSE
17.	DS2093249	[1]	HOSE ASSY,HYDRAULIC
18.	DS2092050	[1]	HOSE
1A.	410116-00646	[1]
2.	181-00779	[1]	TEE
22.	124-00208D5	[1]	CLIP
23.	K1001029	[2]	BOLT
28.	124-00208D2	[1]	CLAMP
3.	S8000111	[3]	O-RING
31.	S8000181	[1]	O-RING
32.	DS2053393	[1]	HOSE
33.	120804-00078	[1]	WASHER
4.	S0508766	[2]	BOLT
5.	S0511866	[2]	BOLT
5.	DS0025013	[2]	BOLT
51.	2181-1126D34	[1]	ADAPTER
52.	2181-1702D4	[1]	ELBOW
52.	2181-1702D3	[1]	ELBOW
53.	DS2093014	[1]	HOSE
53.	DS2093244	[1]	HOSE
54.	S8000111	[2]	O-RING
55.	124-00208D2	[1]	CLAMP
56.	K1001029	[1]	BOLT
57.	K1047556	[1]	VALVE;SOLENOID
58.	DS2093163	[1]	HOSE
58.	DS2093533	[1]
59.	DS2093101	[1]	HOSE ASSY,HYDRAULIC
59.	DS2093025	[1]	HOSE
59.	DS2093174	[1]	HOSE
60.	DS2093005	[1]	HOSE
60.	DS2093187	[1]
61.	2181-1126D36	[2]	ADAPTER
61.	2181-1126D7	[2]	ADAPTER
62.	2181-1702D5	[1]	ELBOW
63.	S8000141	[3]	O-RING
7.	S5102503	[2]	. WASHER
9.	110425-00201	[1]
91.	430216-00334A	[1]
91.	430216-00004	[1]
91.	430216-00298	[1]
91-1.	K1000354	[1]	PLATE
91-1.	250201-02680	[1]
91-2.	181-00078D1	[2]	ADAPTER
91-3.	121-00010D1	[8]	NUT
91-3.	121-00010D1	[10]	NUT
91-4.	420-00352D1	[1]	VALVE,SHOCKLESS
91-5.	DS2410009	[3]	ADAPTER
91-5.	DS2410009	[4]	ADAPTER
91-6.	181-00086D1	[1]	TEE
91-7.	181-00086D2	[2]	TEE
91-8.	121-00010D7	[2]	NUT
91-9.	DS2410016	[2]
