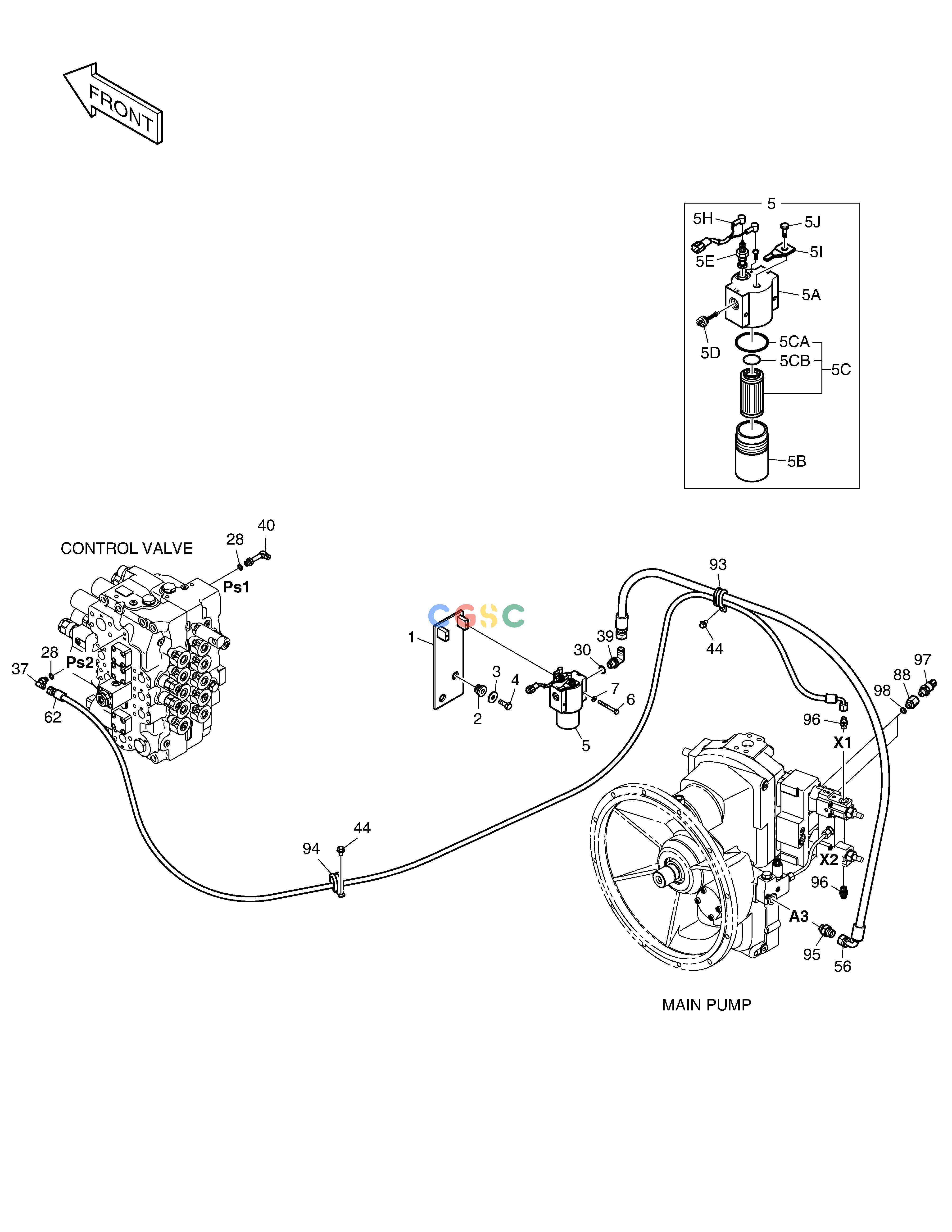

斗山零件查询PILOT PIPING(1) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
522 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04790
|
[-] |
|
|
| 1. |
195-02716C
|
[1] |
BRACKET;FILTER
|
110413-00208
|
| 1. |
110413-00208
|
[1] |
|
|
| 2. |
198-00016
|
[2] |
RUBBER
|
|
| 28. |
S8000111
|
[2] |
O-RING
|
|
| 3. |
2114-1058D10
|
[2] |
WASHER
|
|
| 3. |
120804-00078
|
[2] |
WASHER
|
|
| 30. |
S8000181
|
[1] |
O-RING
|
|
| 37. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 39. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 4. |
S0512266
|
[2] |
BOLT
|
|
| 40. |
2181-1702D56
|
[1] |
ELBOW
|
|
| 44. |
K1001029
|
[2] |
BOLT
|
|
| 5. |
400407-00006
|
[1] |
FILTER,PILOT
|
|
| 56. |
DS2055350
|
[1] |
HOSE
|
|
| 5A. |
NA00509
|
[1] |
. HEAD
|
|
| 5B. |
110913-00333
|
[1] |
|
|
| 5C. |
400504-00241
|
[1] |
ELEMENT,FILTER
|
|
| 5CA. |
401002-01472
|
[1] |
. O-RING
|
|
| 5CB. |
401002-01473
|
[1] |
. O-RING
|
|
| 5D. |
410128-00073
|
[1] |
|
|
| 5E. |
800217-00115
|
[1] |
|
|
| 5H. |
310207-03984
|
[1] |
|
|
| 5I. |
2197-1661
|
[1] |
BRACKET
|
|
| 5J. |
S0508653
|
[1] |
BOLT
|
|
| 6. |
S0553766
|
[2] |
BOLT
|
|
| 62. |
DS2093132
|
[1] |
HOSE
|
|
| 7. |
S5102303
|
[2] |
. WASHER
|
|
| 88. |
181-00716
|
[2] |
ADAPTER
|
|
| 93. |
124-00209D1
|
[1] |
CLIP
|
|
| 94. |
124-00208D5
|
[1] |
CLIP
|
|
| 95. |
DS2479001
|
[1] |
ADAPTER
|
|
| 96. |
DS2479002
|
[2] |
ADAPTER
|
|
| 97. |
2547-9045
|
[2] |
SENSOR;PRESSURE
|
|
| 98. |
S8040061
|
[2] |
O-RING
|
|
