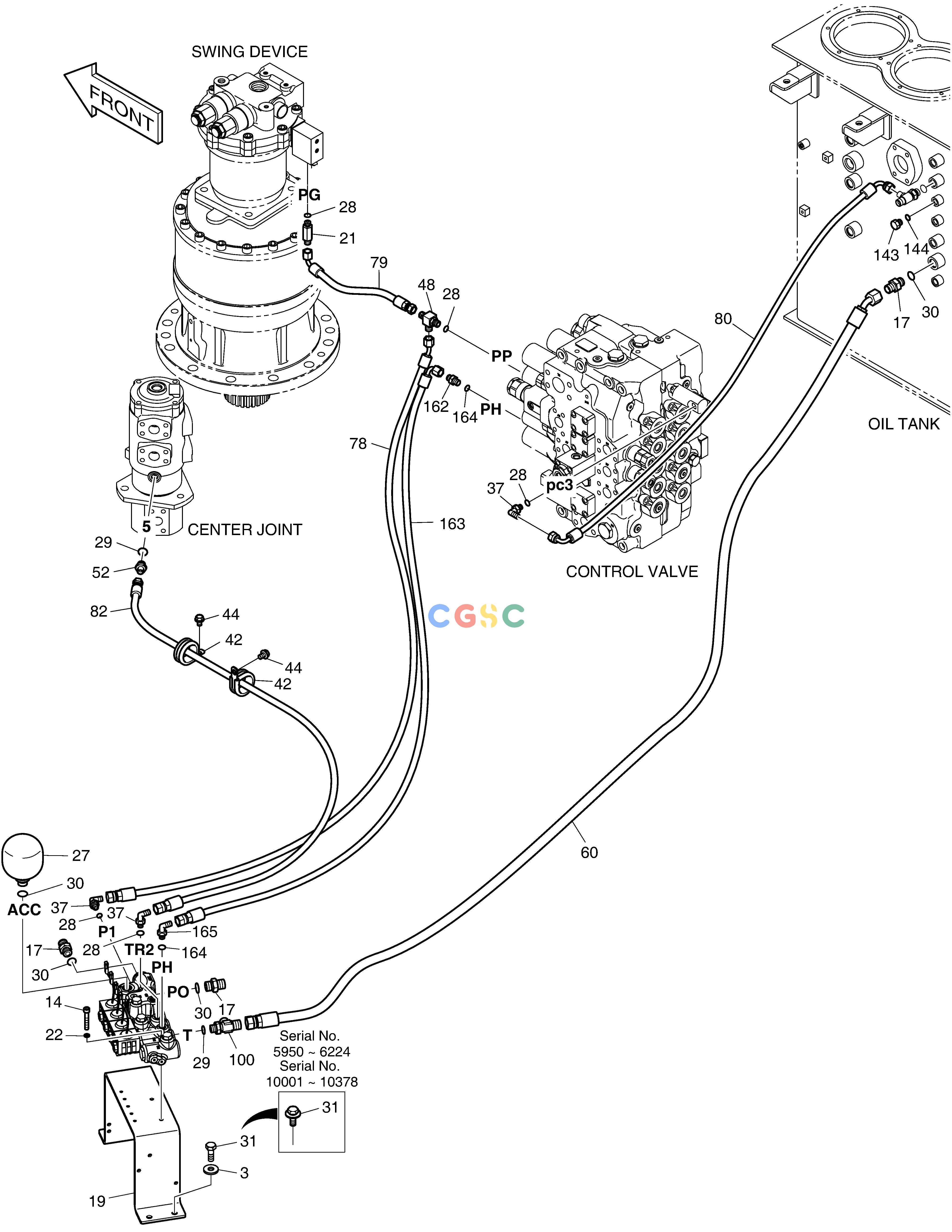

斗山零件查询PILOT PIPING(2) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
197 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04790
|
[-] |
|
|
| 100. |
2181-1951D38
|
[1] |
TEE
|
|
| 14. |
S2209666
|
[2] |
BOLT
|
|
| 143. |
2181-1950D1
|
[1] |
PLUG
|
|
| 144. |
S8000111
|
[1] |
O-RING
|
|
| 162. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 163. |
DS2093158
|
[1] |
HOSE
|
|
| 164. |
S8000111
|
[2] |
O-RING
|
|
| 165. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 17. |
2181-1126D6
|
[3] |
ADAPTER
|
|
| 19. |
110406-02868
|
[1] |
|
110406-02868A
|
| 19. |
110406-02868A
|
[1] |
|
|
| 21. |
2181-1126D34
|
[1] |
ADAPTER
|
|
| 22. |
S5110503
|
[2] |
WASHER
|
|
| 27. |
2460-9057A
|
[1] |
ACCUMULATOR
|
|
| 28. |
S8000111
|
[5] |
O-RING
|
|
| 29. |
S8000141
|
[2] |
O-RING
|
|
| 3. |
120804-00078
|
[4] |
WASHER
|
|
| 30. |
S8000181
|
[4] |
O-RING
|
|
| 31. |
DS0025016
|
[4] |
BOLT
|
|
| 31. |
S0512266
|
[4] |
BOLT
|
|
| 37. |
2181-1702D4
|
[3] |
ELBOW
|
|
| 42. |
124-00208D7
|
[2] |
CLIP
|
|
| 44. |
K1001029
|
[2] |
BOLT
|
|
| 48. |
K1038032
|
[1] |
TEE
|
|
| 52. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 60. |
DS2054326
|
[1] |
HOSE
|
|
| 78. |
DS2092062
|
[1] |
HOSE
|
|
| 79. |
DS2154003
|
[1] |
|
|
| 80. |
DS2152005
|
[1] |
|
|
| 82. |
DS2094170
|
[1] |
HOSE
|
|
