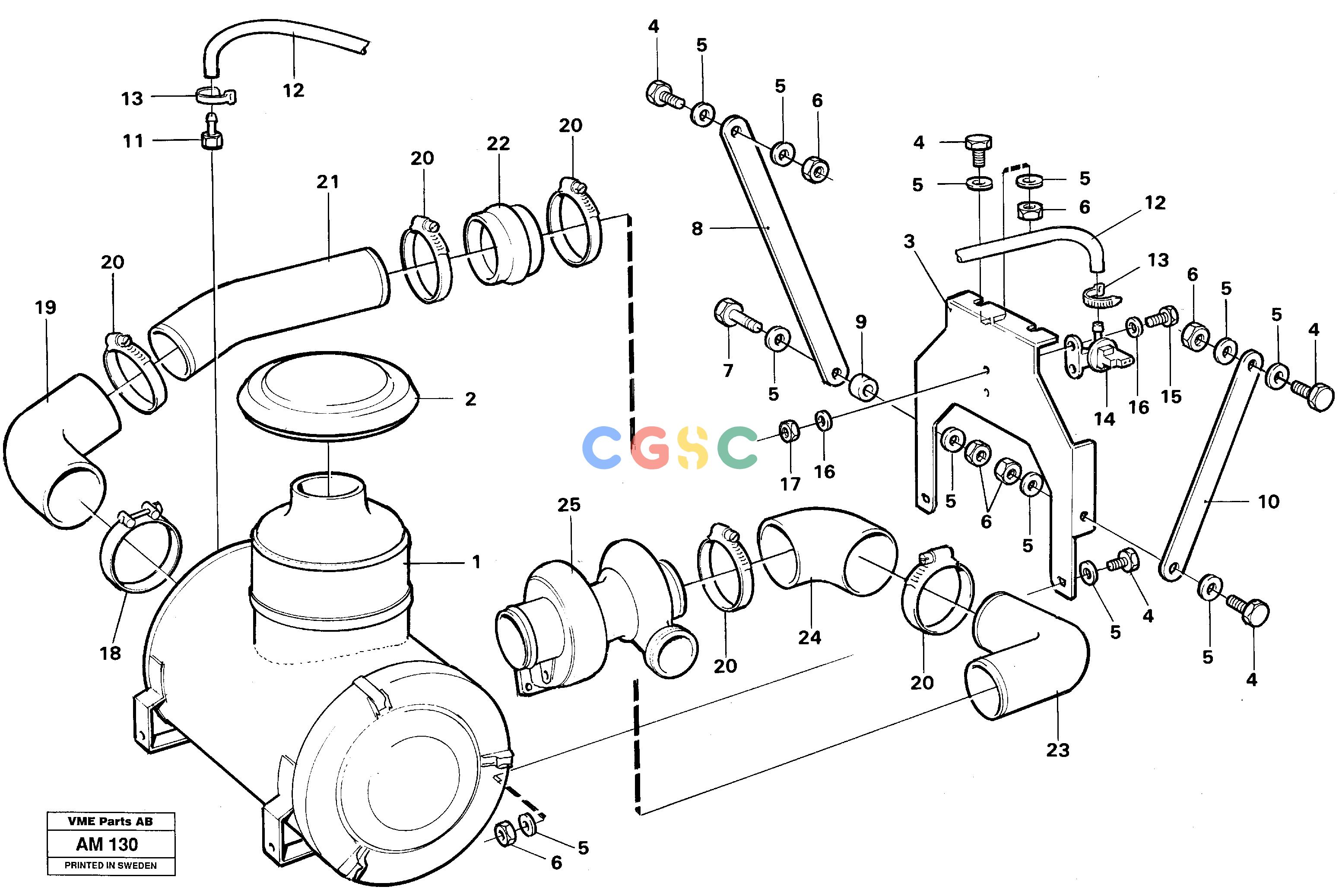

沃尔沃零件查询L330C VOLVO BM Inlet systemVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
489 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Air cleaner
|
|
| 2. |
VOE11110259
|
[1] |
Cover
|
|
| 3. |
VOE11079546
|
[2] |
Bracket
|
SER NO - 60065
|
| |
VOE11109074
|
[1] |
Bracket
|
SER NO 60066 - 60098,FORW
|
| |
VOE11301172
|
[1] |
Bracket
|
SER NO 60066 - , REAR
|
| 4. |
VOE13970948
|
[12] |
Hexagon screw
|
SER NO - 60098
|
| |
VOE13970949
|
[9] |
Hexagon screw
|
SER NO 60099 -
|
| 5. |
VOE976945
|
[36] |
Washer
|
SER NO - 60098
|
| |
VOE930842
|
[28] |
Plain washer
|
SER NO 60099 -
|
| 6. |
VOE971071
|
[13] |
Hexagon nut
|
SER NO - 60098
|
| |
VOE13971098
|
[11] |
Flange nut
|
SER NO 60099 -
|
| 7. |
VOE13970954
|
[1] |
Hexagon screw
|
|
| 8. |
VOE11046050
|
[1] |
Bracket
|
|
| 9. |
VOE11033030
|
[1] |
Spacer sleeve
|
|
| 10. |
VOE11046049
|
[1] |
Bracket
|
SER NO - 60065
|
| |
VOE11109079
|
[1] |
Bracket
|
SER NO 60066 -
|
| 11. |
VOE11033365
|
[1] |
Nipple
|
|
| 12. |
VOE943727
|
[REQ] |
Hose
|
L = 540 MM
|
| 13. |
VOE14016673
|
[2] |
Strip clamp
|
|
| 14. |
VOE11039197
|
[1] |
Vacuum switch
|
SE7
|
| 15. |
VOE955246
|
[2] |
Hexagon screw
|
|
| 16. |
VOE13940090
|
[4] |
Washer
|
|
| 17. |
VOE946577
|
[2] |
Lock nut
|
|
| 18. |
VOE11141314
|
[1] |
Clamp
|
|
| 19. |
VOE11301171
|
[1] |
Elbow
|
|
| 20. |
VOE11141313
|
[5] |
Clamp
|
|
| 21. |
VOE11079577
|
[1] |
Tube
|
|
| 22. |
VOE11079523
|
[1] |
Hose
|
|
| 23. |
VOE11079600
|
[1] |
Tube
|
|
| 24. |
VOE11079578
|
[1] |
Elbow
|
|
| 25. |
|
[1] |
Turbocharger
|
|
