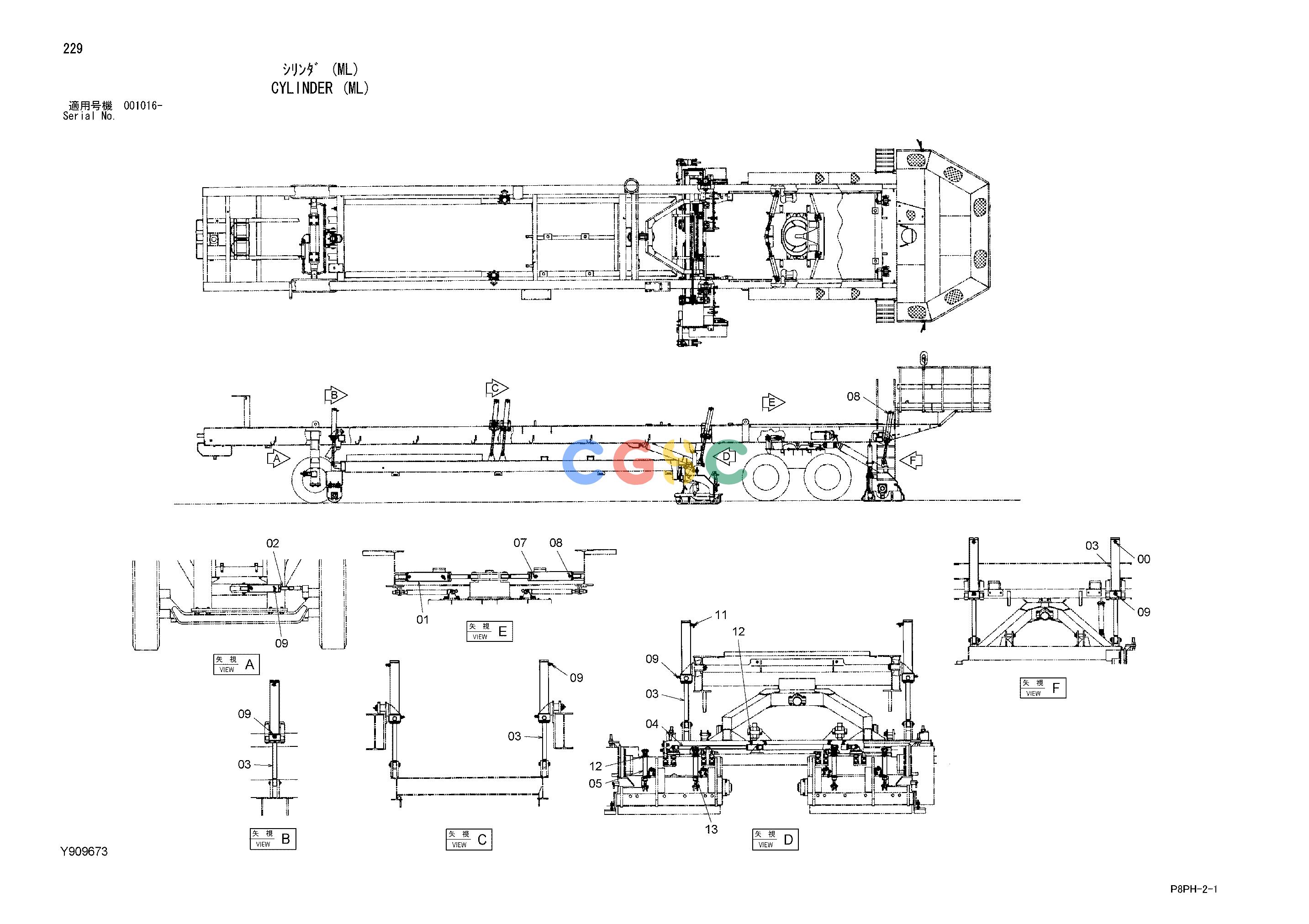

日立零件查询（AR2000）CYLINDER (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
783 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411760 | [2] | CYL.;STEERING | |
| 01A. | Y415061 | [1] | KIT;SEAL | |
| 02. | Y411759 | [1] | CYL.;STEERING | |
| 02A. | Y415062 | [1] | KIT;SEAL | |
| 03. | Y411763 | [7] | CYL.;HEATER BED | |
| 03A. | Y415061 | [1] | KIT;SEAL | |
| 04. | Y411762 | [2] | CYL.;GRINDER WIDE | |
| 04A. | Y415064 | [1] | KIT;SEAL | |
| 05. | Y411761 | [4] | CYL.;SCRAPER | |
| 05A. | Y415065 | [1] | KIT;SEAL | |
| 07. | A852433 | [2] | TEE;S | |
| 07A. | 4509180 | [1] | O-RING | |
| 08. | A852133 | [4] | ADAPTER;S | |
| 08A. | 4509180 | [1] | O-RING | |
| 09. | A852333 | [12] | ELBOW;S | |
| 09A. | 4509180 | [1] | O-RING | |
| 11. | 4239713 | [2] | TEE;S | |
| 11A. | 4509180 | [1] | O-RING | |
| 12. | A852323 | [8] | ELBOW;S | |
| 12A. | 957366 | [1] | O-RING | |
| 13. | 4208473 | [4] | TEE;S | |
| 13A. | 957366 | [1] | O-RING | |
