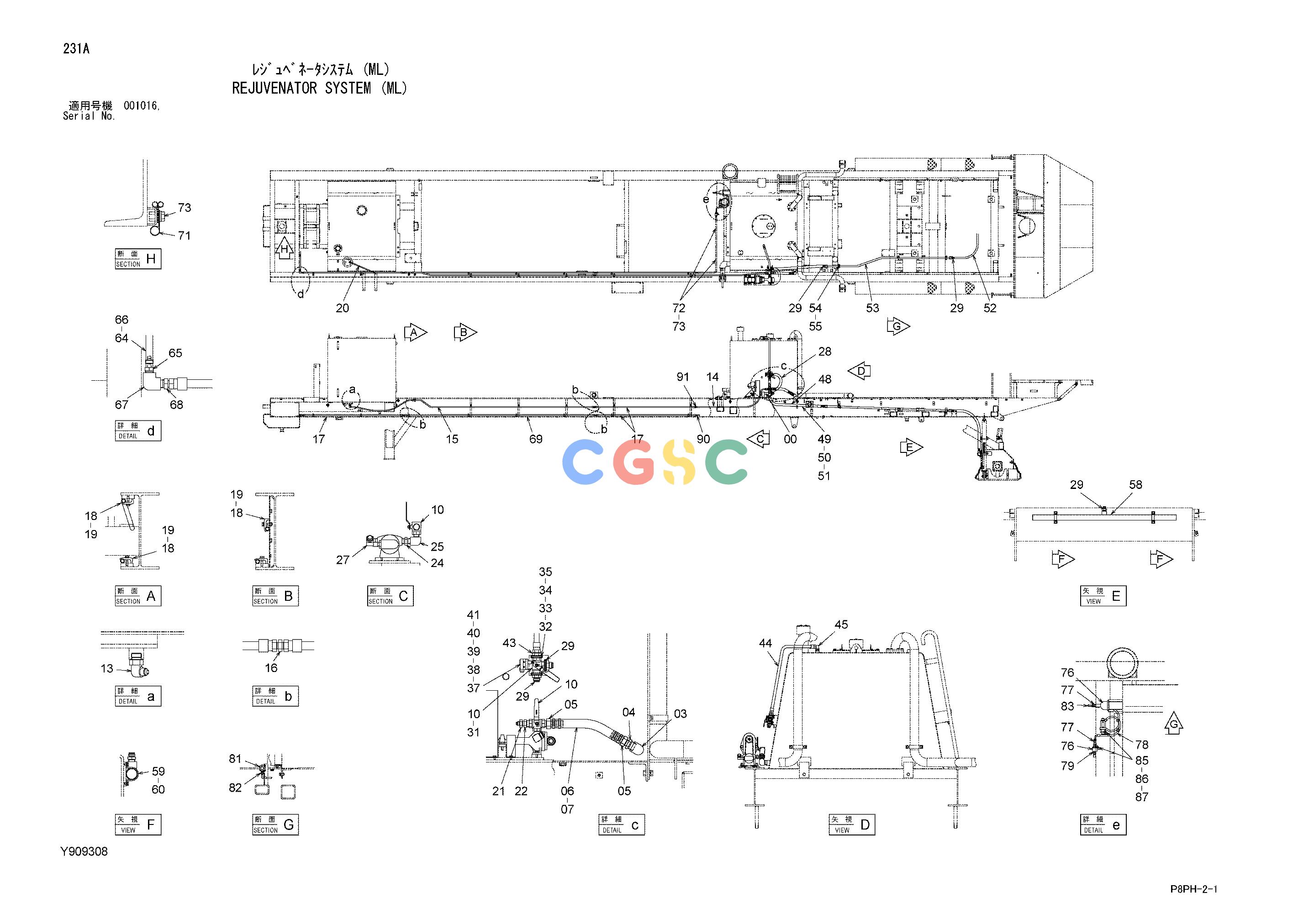

日立零件查询（AR2000）REJUVENATOR SYSTEM (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
547 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | +++++++ | [1] | REJUVENATOR PUMP (ML) | <for details: see separate page> |
| 03. | 94-0635 | [1] | ELBOW;S | |
| 04. | 94-1605 | [1] | REDUCER | |
| 05. | Y971061 | [2] | FITTING;HOSE | |
| 06. | Y412461 | [1] | HOSE;RUBBER | |
| 07. | 4011675 | [4] | CLAMP;HOSE | |
| 10. | Y410185 | [2] | VALVE | |
| 13. | 4353073 | [1] | ELBOW;S | |
| 13A. | 4506424 | [1] | O-RING | |
| 14. | Y413261 | [1] | HOSE | |
| 15. | Y802144 | [1] | PIPE | |
| 16. | 4277889 | [3] | ADAPTER;S | |
| 17. | Y971433 | [3] | PIPE | |
| 18. | 4053594 | [14] | CLAMP;PIPE | |
| 19. | J271045 | [14] | BOLT;SEMS | |
| 19A. | J901045 | [1] | BOLT | |
| 19B. | J222010 | [1] | WASHER | |
| 20. | Y413260 | [1] | HOSE | |
| 21. | 4317015 | [1] | ADAPTER;S | |
| 22. | 94-1604 | [1] | REDUCER | |
| 24. | Y410182 | [1] | ADAPTER;S | |
| 25. | 94-0634 | [1] | ELBOW;S | |
| 27. | Y410183 | [1] | ELBOW;S | |
| 28. | Y413262 | [1] | HOSE | |
| 29. | 4221279 | [5] | ADAPTER;S | |
| 31. | Y971058 | [1] | LEVER | |
| 32. | Y410184 | [3] | CLAMP | |
| 33. | A590106 | [6] | WASHER;PLANE | |
| 34. | A590906 | [6] | WASHER;SPRING | |
| 35. | M500605 | [6] | NUT | |
| 37. | Y410187 | [1] | MINIATURE CONNC | |
| 38. | M430435 | [2] | SCREW | |
| 39. | A590104 | [2] | WASHER;PLANE | |
| 40. | A590904 | [2] | WASHER;SPRING | |
| 41. | M500403 | [2] | NUT | |
| 43. | 4385019 | [1] | ADAPTER;S | |
| 44. | Y971429 | [1] | PIPE;RETURN | |
| 45. | 4156435 | [1] | ELBOW;S | |
| 45A. | 4506424 | [1] | O-RING | |
| 48. | Y413263 | [1] | HOSE | |
| 49. | 4190264 | [1] | CLIP | |
| 50. | J901225 | [1] | BOLT | |
| 51. | A590912 | [1] | WASHER;SPRING | |
| 52. | Y413264 | [1] | HOSE | |
| 53. | Y802181 | [1] | PIPE | |
| 54. | 4190127 | [3] | CLAMP;PIPE | |
| 55. | J271270 | [3] | BOLT;SEMS | |
| 55A. | J901270 | [1] | BOLT | |
| 55B. | J222012 | [1] | WASHER | |
| 58. | Y971056 | [1] | PIPE | |
| 59. | 4053865 | [2] | CLAMP;PIPE | |
| 60. | J271016 | [4] | BOLT;SEMS | |
| 60A. | J901016 | [1] | BOLT | |
| 60B. | J222010 | [1] | WASHER | |
| 64. | Y412008 | [1] | HOSE;RUBBER | |
| 65. | Y412606 | [2] | JOINT | |
| 66. | 4514700 | [8] | CLIP;HOSE | |
| 67. | 94-0617 | [1] | ELBOW;S | |
| 68. | 4154653 | [1] | ADAPTER;S | |
| 69. | Y971434 | [1] | PIPE | |
| 71. | 4190273 | [2] | CLIP | |
| 72. | 4190274 | [2] | CLIP | |
| 73. | J271020 | [4] | BOLT;SEMS | |
| 73A. | J901020 | [1] | BOLT | |
| 73B. | J222010 | [1] | WASHER | |
| 76. | Y412659 | [1] | GAS BURNER | |
| 77. | +++++++ | [2] | CONNECTOR | PARKER 6GTXS |
| 78. | Y410196 | [1] | HOSE | |
| 79. | +++++++ | [1] | UNION | PARKER 6FMTXS |
| 81. | Y411232 | [1] | VALVE;GAS-CONTROL | |
| 82. | Y410327 | [2] | ADAPTER;S | |
| 83. | Y410197 | [1] | HOSE | |
| 85. | Y410181 | [2] | CLAMP | |
| 86. | A590908 | [4] | WASHER;SPRING | |
| 87. | M500807 | [4] | NUT | |
| 90. | +++++++ | [1] | UNION | PARKER 8-6HTMXS |
| 91. | 4277889 | [1] | ADAPTER;S | |
