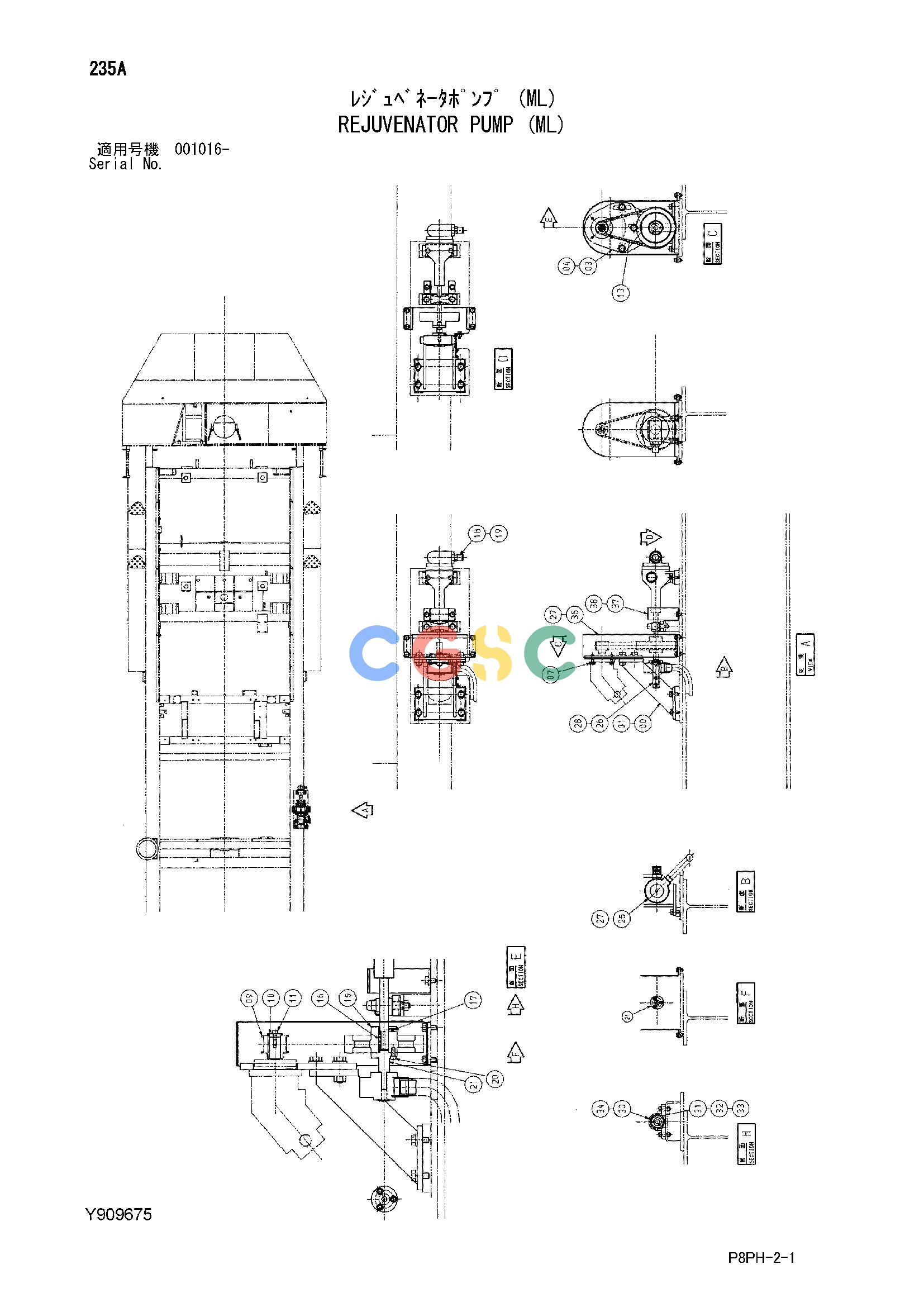

日立零件查询（AR2000）REJUVENATOR PUMP (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
467 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y802213 | [1] | BRACKET | |
| 01. | J271025 | [4] | BOLT;SEMS | |
| 01A. | J901025 | [1] | BOLT | |
| 01B. | J222010 | [1] | WASHER | |
| 03. | Y412692 | [1] | BASE;MOTOR | |
| 04. | J271240 | [3] | BOLT;SEMS | |
| 04A. | J901240 | [1] | BOLT | |
| 04B. | J222012 | [1] | WASHER | |
| 07. | J260830 | [4] | BOLT;SEMS | |
| 07A. | J900830 | [1] | BOLT | |
| 07B. | A590108 | [1] | WASHER;PLANE | |
| 09. | Y414028 | [1] | PULLEY | |
| 10. | Y415174 | [1] | STOPPER | |
| 11. | J780620 | [1] | BOLT;SOCKET | |
| 13. | Y414973 | [1] | BELT | |
| 15. | Y415168 | [1] | PULLEY | |
| 16. | Y412573 | [1] | KEY | |
| 17. | Y410214 | [1] | SCREW;SET | |
| 18. | Y411211 | [1] | PUMP;CYCLOGEN | |
| 19. | J260825 | [2] | BOLT;SEMS | |
| 19A. | J900825 | [1] | BOLT | |
| 19B. | A590108 | [1] | WASHER;PLANE | |
| 20. | J780616 | [3] | BOLT;SOCKET | |
| 21. | Y971648 | [1] | SHAFT;PULLEY | |
| 25. | Y414031 | [1] | ENCODER | |
| 26. | Y971471 | [1] | BRACKET | |
| 27. | J260820 | [5] | BOLT;SEMS | |
| 27A. | J900820 | [1] | BOLT | |
| 27B. | A590108 | [1] | WASHER;PLANE | |
| 28. | J260616 | [2] | BOLT;SEMS | |
| 28A. | J900616 | [1] | BOLT | |
| 28B. | A590106 | [1] | WASHER;PLANE | |
| 30. | Y410203 | [1] | BRG. | |
| 31. | Y410210 | [3] | SPACER | |
| 32. | Y410211 | [3] | SPACER | |
| 33. | Y410212 | [3] | SPACER | |
| 34. | J271035 | [2] | BOLT;SEMS | |
| 34A. | J901035 | [1] | BOLT | |
| 34B. | J222010 | [1] | WASHER | |
| 36. | Y802343 | [1] | COVER | |
| 37. | Y412695 | [1] | COVER | |
| 38. | J260814 | [2] | BOLT;SEMS | |
| 38A. | J900814 | [1] | BOLT | |
| 38B. | A590108 | [1] | WASHER;PLANE | |
